79484 - Toro 36" Tiller for XT Series Tractors (SN: 240000001 - 240999999) (2004) HITCH ASSEMBLY Parts Diagram

36" Tiller for XT Series Tractors

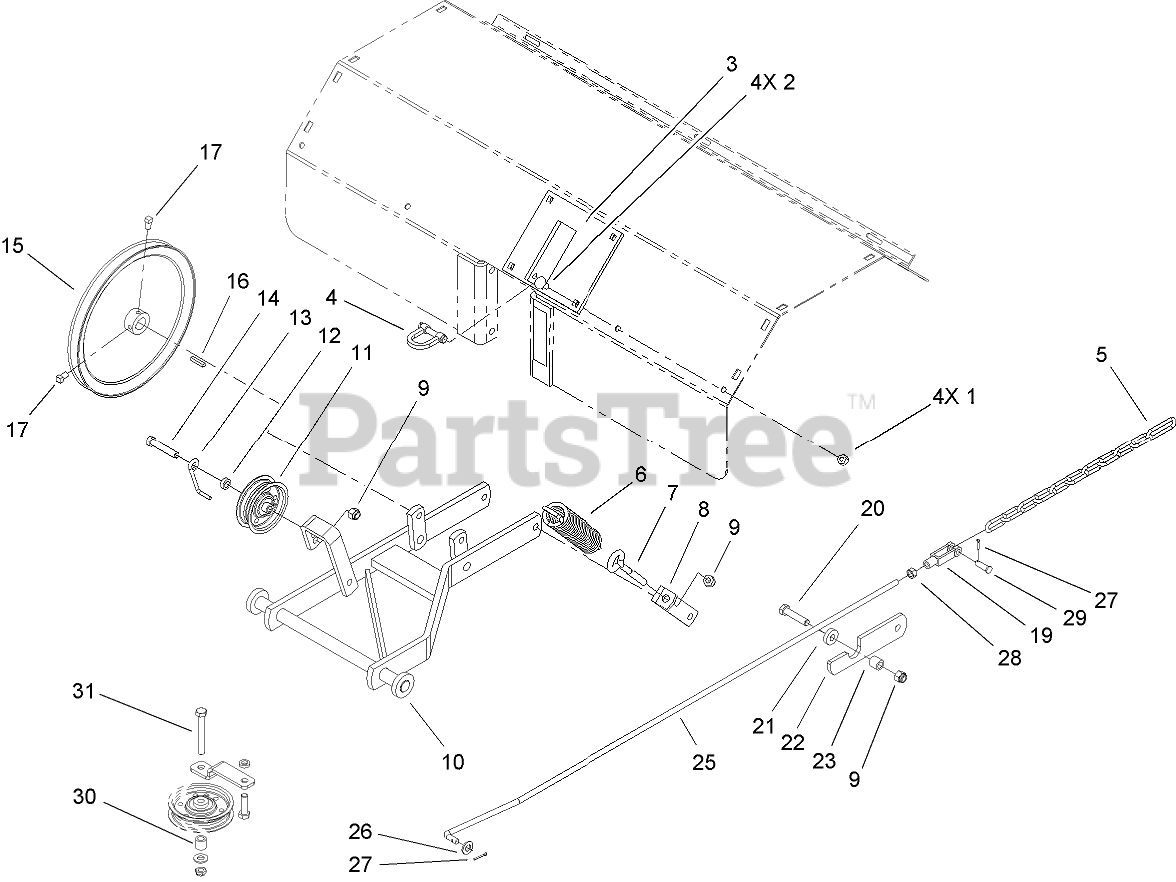

HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 93-1608-01

HITCH ASM
(Superseded to 93-1608-03)

$

$

Not available

4

Toro 79-2280

CLEVIS ASM

$20.99

$

Usually ships in 3-6 days

0

5

Toro 92-7074

CHAIN-LIFT

$

$

Not available

6

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

7

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0

8

Toro 93-1606-03

BRACKET-SPRING

$49.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 93-1607-03

HITCH ASM

$

$

Not available

11

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

12

Toro 93-3658

Spacer

$9.99

$

Usually ships in 3-6 days

0

13

Toro 79-0400

GUIDE-BELT

$

$

Not available

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 93-0345

PULLEY

$186.99

$

Usually ships in 3-6 days

0

16

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

17

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

19

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 9202204

Washer
(Superseded to 920220)

$3.99

$

Usually ships in 3-6 days

0

22

Toro 92-7023-03

CATCH-SPRING

$

$

Not available

23

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

25

Toro 106-8273

ROD-LIFT

$

$

Not available

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

29

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

30

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

31

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0
