79484 - Toro 36" Tiller for XT Series Tractors (SN: 230000001 - 230999999) (2003) TILLER DRIVE JACKSHAFT ASSEMBLY Parts Diagram

36" Tiller for XT Series Tractors

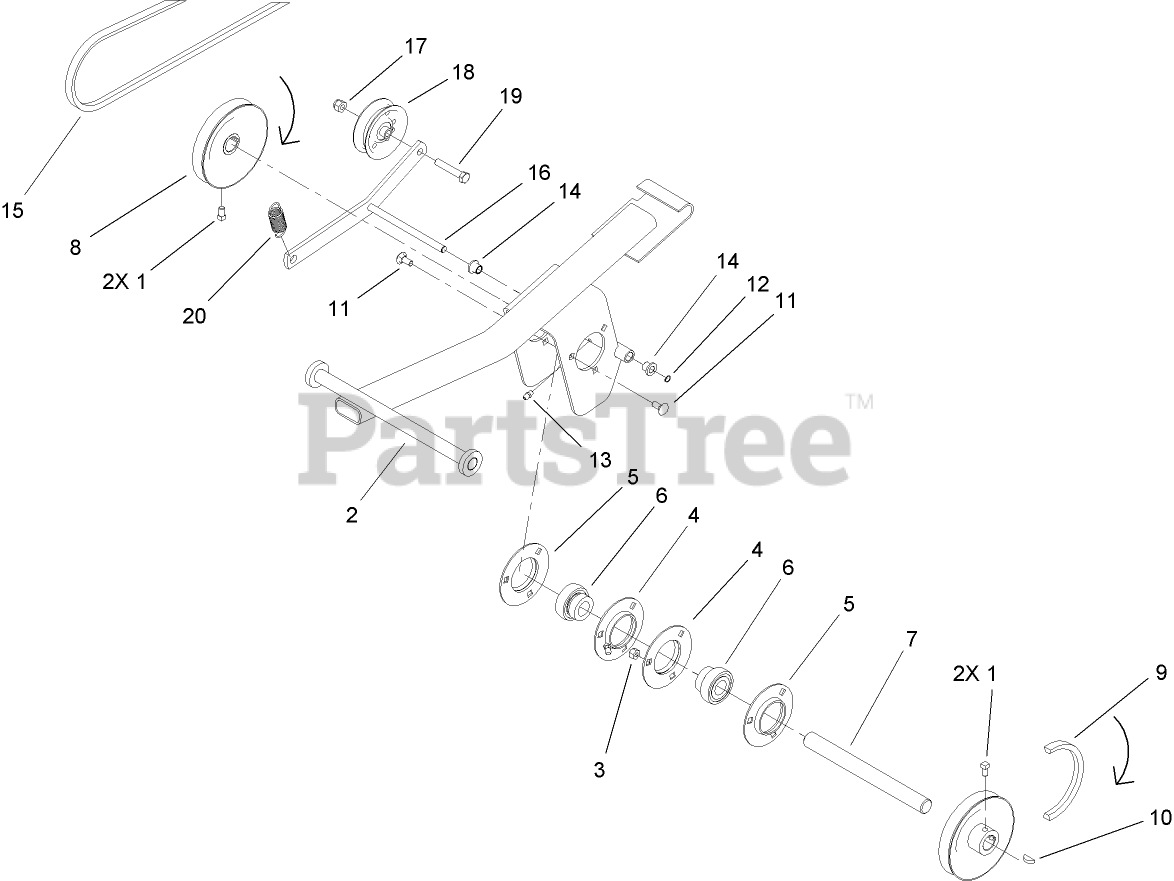

TILLER DRIVE JACKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

2

Toro 106-8298-03

SUPPORT-JACKSHAFT

$1104.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

4

Toro 110567

FLANGE-ZERK RELUBE

$22.99

$

In Stock, only 1 left!

0

5

Toro 110568

Flange

$18.99

$

In Stock, only 3 left!

0

6

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 3 left!

0

7

Toro 94-7840

SHAFT-JACK

$124.99

$

Usually ships in 3-6 days

0

8

Toro 94-7842

PULLEY-V

$199.99

$

Usually ships in 3-6 days

0

9

Toro 106-5813

V-BELT, TRACTION

$107.99

$

Usually ships in 3-6 days

0

10

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 98-1644

BUSHING-FLANGED

$

$

Not available

15

Toro 703454

V-BELT

$62.99

$

Usually ships in 3-6 days

0

16

Toro 106-8275

IDLER ASM

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 92-7305

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0
