79482 - Toro 44" Two-Stage Snow Thrower for XT Series Tractors (SN: 250000001 - 250999999) (2005) FRAME AND DRIVE ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for XT Series Tractors

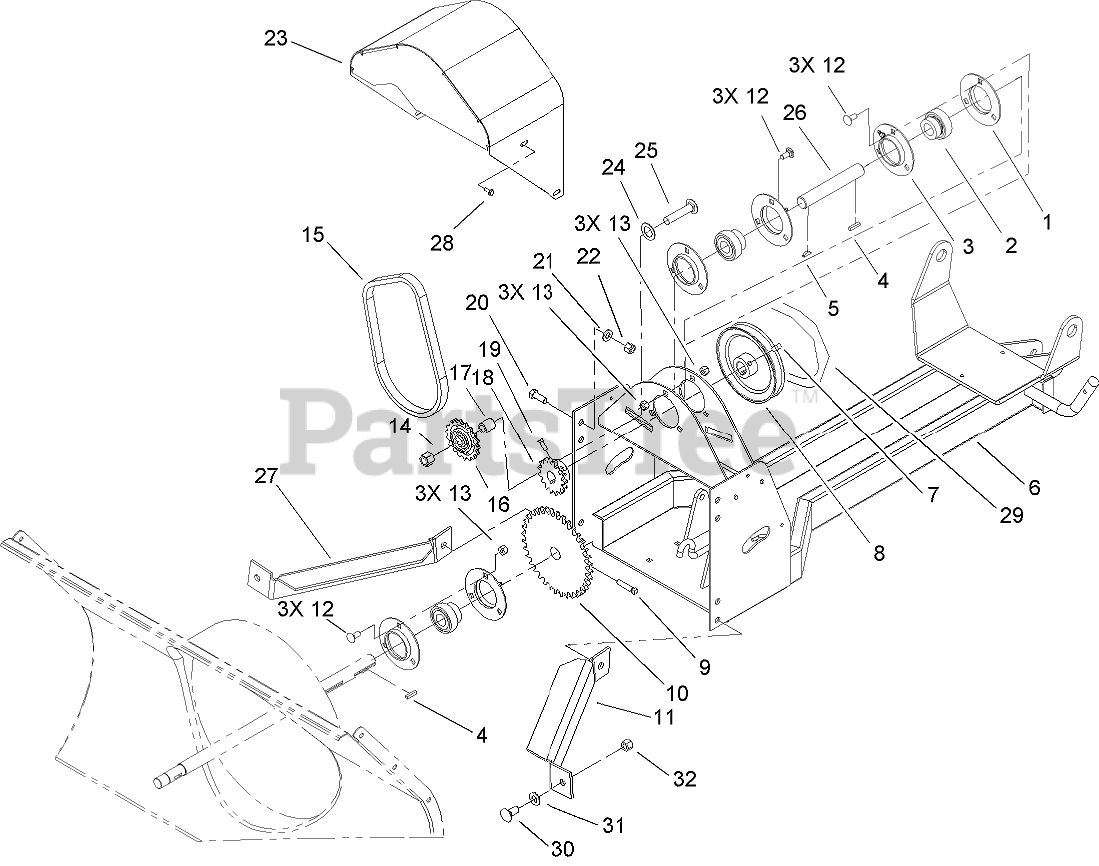

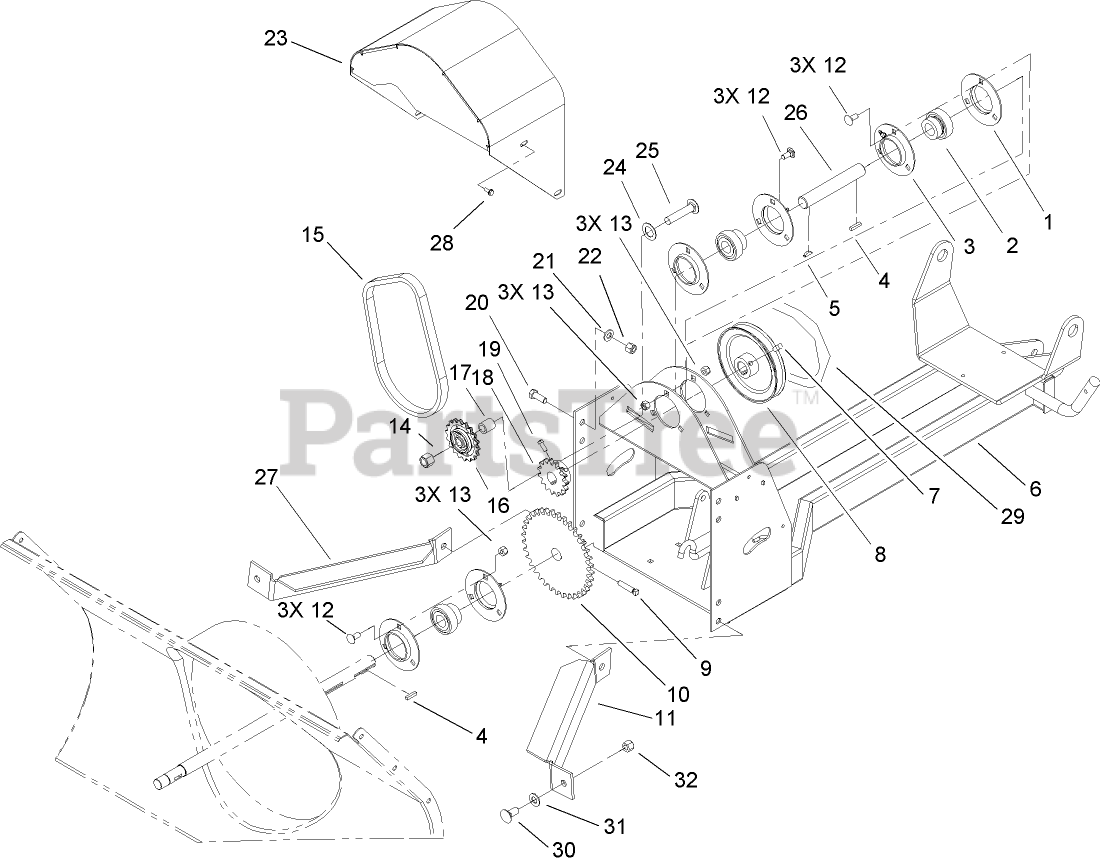

FRAME AND DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0

2

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 2 left!

0

3

Toro 119020

FLANGE-RELUBE

$23.99

$

Usually ships in 3-6 days

0

4

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

5

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

In Stock, only 1 left!

0

6

Toro 106-8203-03

FRAME ASM

$

$

Not available

7

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

8

Toro 92-5769

PULLEY - GEAR BOX

$107.99

$

Usually ships in 3-6 days

0

9

Toro 909546

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

10

Toro 95-3867

SPROCKET - 38 TOOTH
(Superseded to 95-3867-03)

$470.99

$

Usually ships in 3-6 days

0

11

Toro 117223-03

BRACE-HOUSING LH

$

$

Not available

12

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 107-3650

CHAIN-DRIVE

$

$

Not available

16

Toro 93-1614

SPROCKET-IDLER

$63.99

$

In Stock, Qty 8

0

17

Toro 107-3678

SPACER-IDLER

$

$

Not available

18

Toro 117338

SPROCKET-15 T
(Superseded to 117338-03)

$196.99

$

Usually ships in 3-6 days

0

19

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

20

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 106-9934-03

BELT COVER ASM

$

$

Not available

24

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 3233-27

SCREW-CARR

$13.99

$

Usually ships in 3-6 days

0

26

Toro 106-9923

SHAFT-JACK

$

$

Not available

27

Toro 117224-03

BRACE-HOUSING RH

$

$

Not available

28

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

29

Toro 107-8486

V-BELT

$125.99

$

Usually ships in 3-6 days

0

30

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

31

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

32

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
