79480 - Toro 42"/48" Vacuum Bagger for XT Series Tractors (SN: 240000001 - 240999999) (2004) BAG AND FRAME ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger for XT Series Tractors

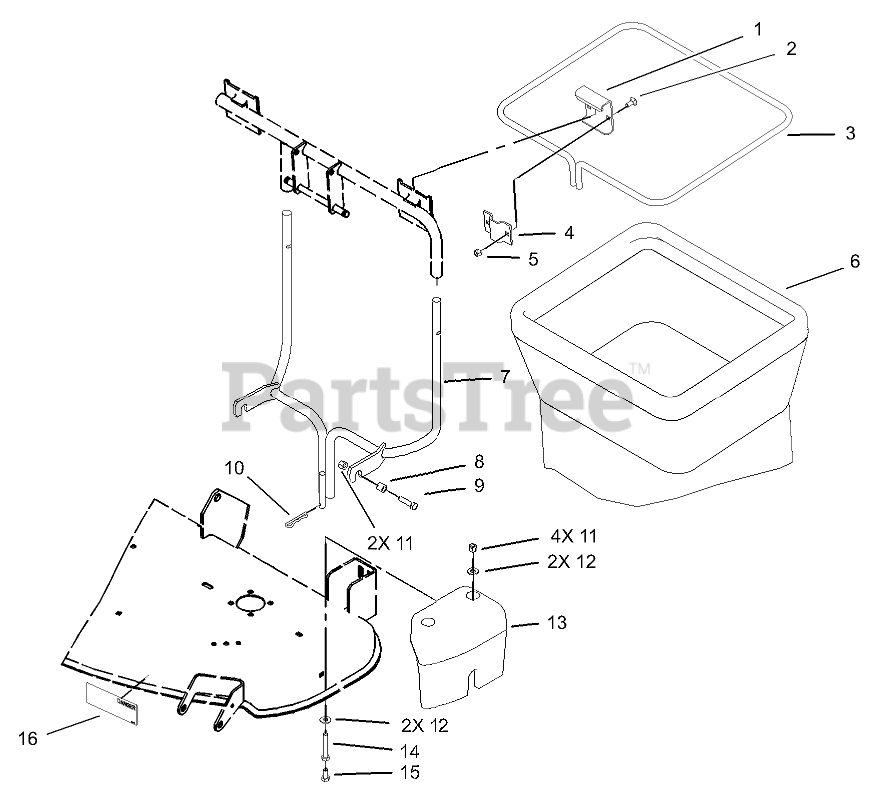

BAG AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 114973-03

HANGER-BAG

$25.99

$

In Stock, only 2 left!

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 114972-03

FRAME-BAG

$111.99

$

Usually ships in 3-6 days

0

4

Toro 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 93-1623

BAG-DEPTH

$79.99

$

In Stock, only 1 left!

0

7

Toro 92-7053-03

BRACKET-BAGGER

$

$

Not available

8

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3256-56

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

13

Toro 98-3096

WEIGHT

$

$

Not available

14

Toro 323-45

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

15

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

16

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0
