79480 - Toro 42"/48" Vacuum Bagger for XT Series Tractors (SN: 230000001 - 230999999) (2003) 42" DECK COMPONENT ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger for XT Series Tractors

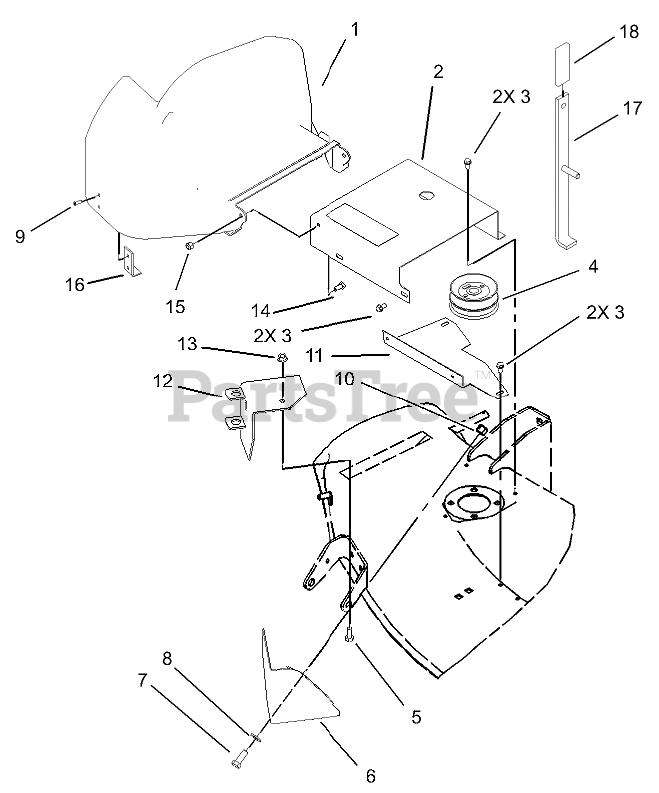

42" DECK COMPONENT ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9300

SHIELD-BELT

$

$

Not available

2

Toro 106-8281

SHIELD ASM

$

$

Not available

3

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

4

Toro 79-7310

PULLEY

$73.99

$

Usually ships in 3-6 days

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro 79-7300-03

Deflector

$77.99

$

Usually ships in 3-6 days

0

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

9

Toro 79-0470

RIVET-POP

$

$

Not available

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

11

Toro 79-7120-03

ADAPTER-SHIELD

$34.99

$

Usually ships in 3-6 days

0

12

Toro 79-7000-03

Pivot Bracket ASM

$124.99

$

Usually ships in 3-6 days

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

16

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

17

Toro 106-9878-01

HOC LEVER ASM
(Superseded to 106-9878-03)

$

$

Not available

18

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0
