79455 - Toro Quiet Collector Drive Kit for 44" Mower (SN: 099000001 - 099999999) (1999) DRIVE KIT ASSEMBLY FOR 44" MOWER Parts Diagram

Quiet Collector Drive Kit for 44" Mower

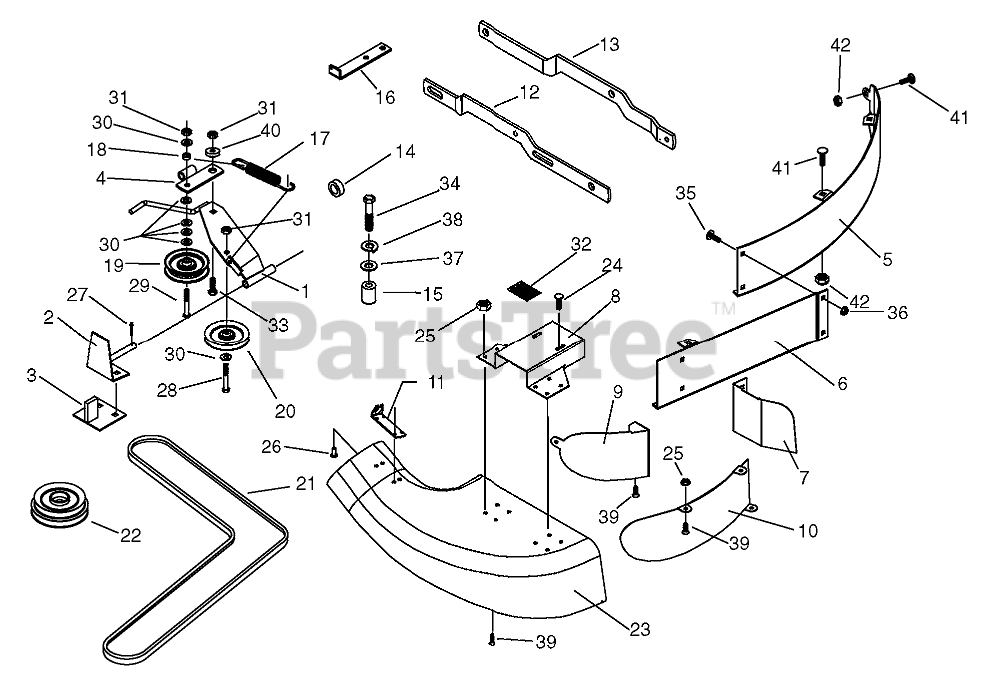

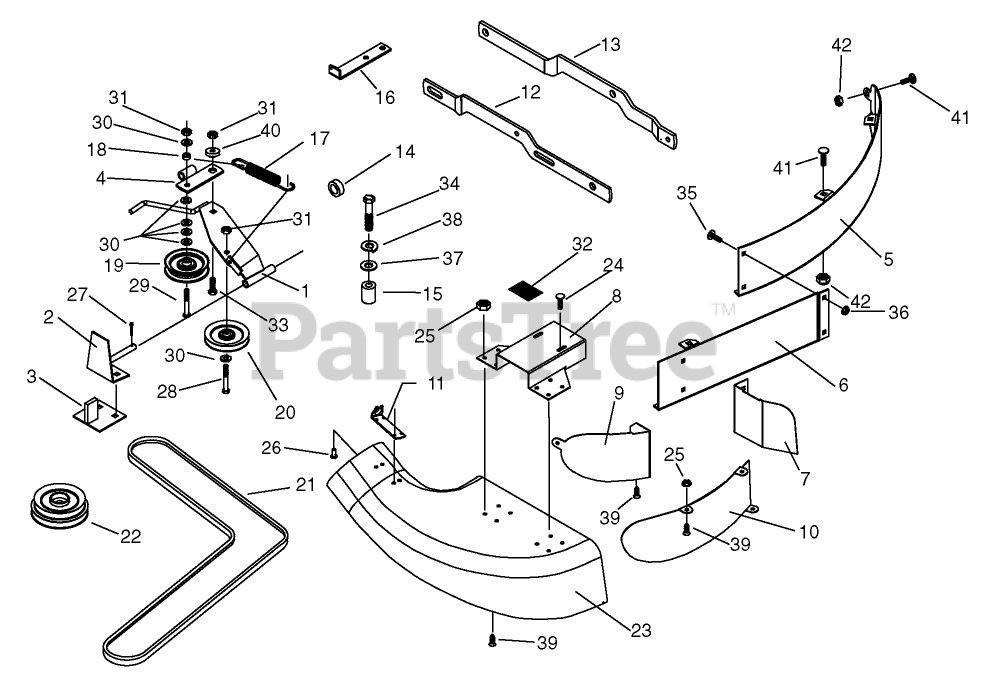

DRIVE KIT ASSEMBLY FOR 44" MOWER Parts Diagram

  • Title
1

Toro 98-9103

DOUBLE-IDLER

$

$

Not available

2

Toro 98-9104

BRACKET-IDLER MOUNT

$

$

Not available

3

Toro 98-9105

STOPPER

$

$

Not available

4

Toro 98-3635

ARM-IDLER

$51.99

$

Usually ships in 3-6 days

0

5

Toro 98-9106

BAFFLE-MOWER

$

$

Not available

6

Toro 98-9107

BAFFLE-MOWER

$

$

Not available

7

Toro 98-9108

BAFFLE-MOWER

$

$

Not available

8

Toro 98-3607

Bracket-boot (incl. ref. #32)

$

$

Not available

9

Toro 98-9109

Baffle

$

$

Not available

10

Toro 98-9110

Baffle

$96.99

$

Usually ships in 3-6 days

0

11

Toro 98-3676

BRACKET-LATCH

$

$

Not available

12

Toro 98-9111

LEVELLER-OUTSIDE

$

$

Not available

13

Toro 98-9112

LEVELLER-INSIDE

$

$

Not available

14

Toro 98-9113

SPACER

$

$

Not available

15

Toro 98-9114

SPACER-BELT GUARD

$

$

Not available

16

Toro 98-9115

ARM-IDLER

$

$

Not available

17

Toro 98-3636

SPRING

$

$

Not available

18

Toro 98-9116

SPACER

$

$

Not available

19

Toro 98-9135

IDLER-FLAT

$226.99

$

Usually ships in 3-6 days

0

20

Toro 98-3629

IDLER-V

$87.99

$

Usually ships in 3-6 days

0

21

Toro 98-9102

BELT-V, A-96

$

$

Not available

22

Toro 98-3697

PULLEY-DOUBLE

$306.99

$

Usually ships in 3-6 days

0

23

$

$

Not available

24

Toro 614512

SCREW

$

$

Not available

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 3269-21

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

30

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

32

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

33

Toro 3331-2

BOLT CARR. 3/8X1

$

$

Not available

34

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

36

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

39

$2.99

$

Usually ships in 3-6 days

0

40

Toro 98-3632

WASHER-FLANGE

$

$

Not available

41

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

42

Toro 32-9639

Nut-lock nylon 3/8"

$

$

Currently unavailable
