79452 - Toro Quiet Collector Drive Kit for 52" Mower (SN: 089000001 - 089000225) (1998) COLLECTOR DRIVE ASSEMBLY Parts Diagram

Quiet Collector Drive Kit for 52" Mower

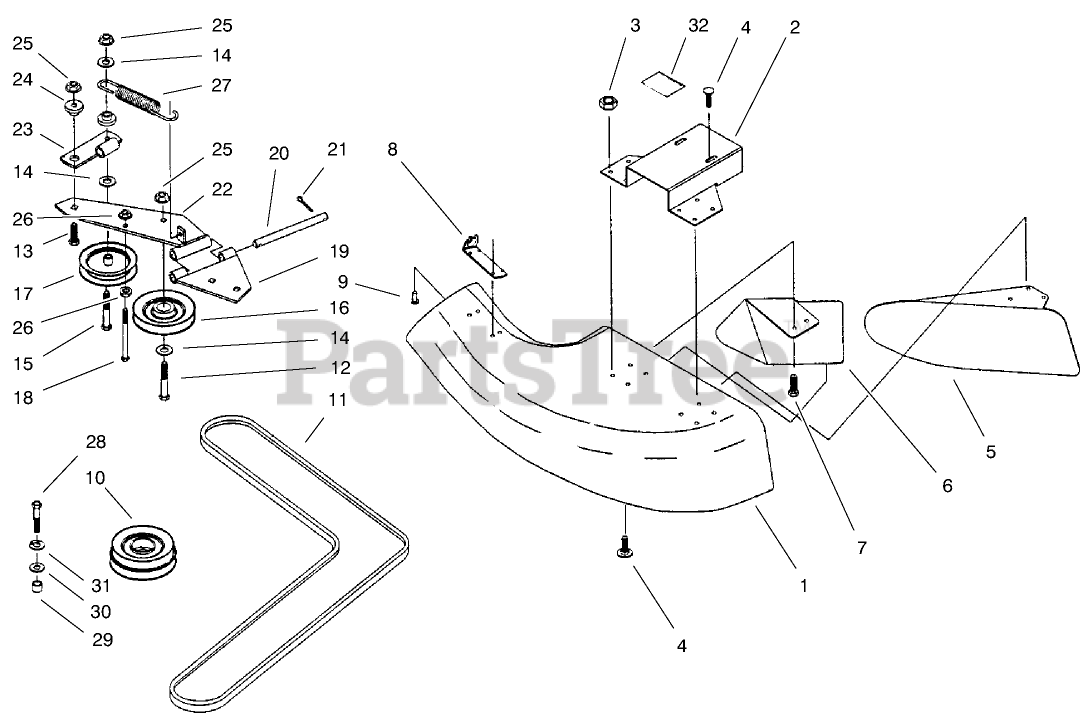

COLLECTOR DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3608

BOOT-SUCTION

$

$

Not available

2

Toro 98-3607

Fixation-Boot (Incl. Ref. #32)

$

$

Not available

3

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

4

Toro 614512

SCREW

$

$

Not available

5

Toro 98-3626

BAFFLE

$

$

Not available

6

Toro 98-3625

BAFFLE

$

$

Not available

7

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

8

Toro 98-3676

BRACKET-LATCH

$

$

Not available

9

Toro 3269-21

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

10

Toro 98-3641

PULLEY-DOUBLE

$

$

Not available

11

Toro 98-3674

BELT-V

$

$

Not available

12

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 98-3629

IDLER-V

$87.99

$

Usually ships in 3-6 days

0

17

Toro 98-3631

IDLER-FLAT
(Superseded to 98-9135)

$226.99

$

Usually ships in 3-6 days

0

18

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

19

Toro 98-3633

HINGE

$117.99

$

Usually ships in 3-6 days

0

20

$24.99

$

Usually ships in 3-6 days

0

21

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

22

Toro 98-3634

HOLDER-IDLER

$

$

Not available

23

Toro 98-3635

ARM-IDLER

$51.99

$

Usually ships in 3-6 days

0

24

Toro 98-3632

WASHER-FLANGE

$

$

Not available

25

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 98-3636

SPRING

$

$

Not available

28

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 98-3639

SPACER-GUARD

$

$

Not available

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0
