79451 - Toro Quiet Collector for Wheel Horse 5xi Tractors (SN: 220000001 - 220999999) (2002) SCROLL & FAN ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 5xi Tractors

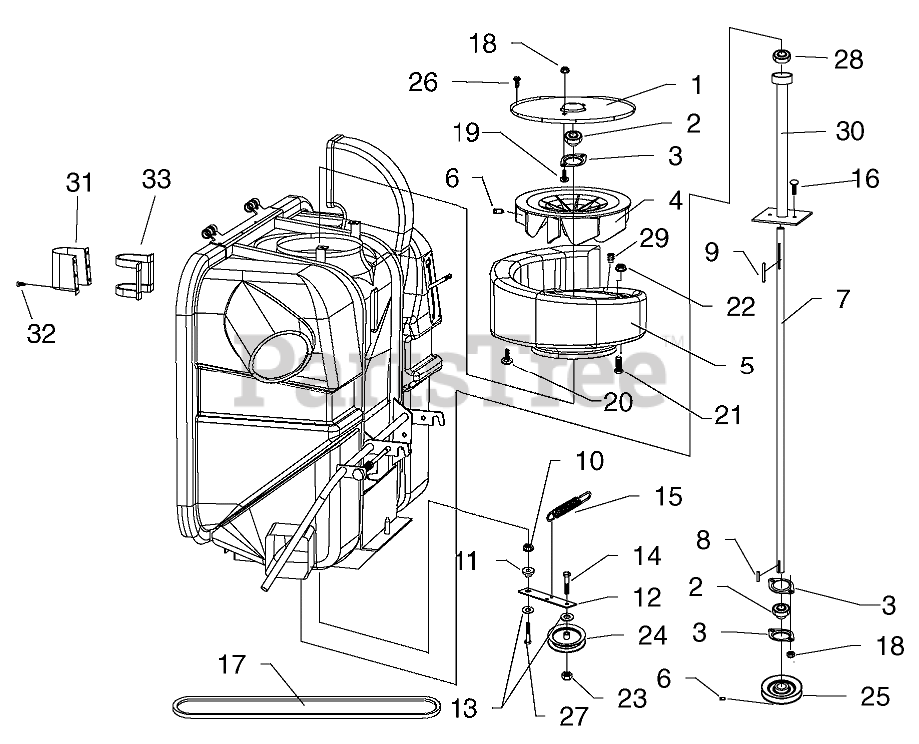

SCROLL & FAN ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3604

COVER-SCROLL

$

$

Not available

2

Toro 98-3690

BEARING

$101.99

$

Usually ships in 3-6 days

0

3

Toro 98-3691

FLANGE

$

$

Not available

4

$

$

Not available

5

Toro 98-9146

Scroll (incl. ref. #29)

$

$

Not available

6

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 98-9141

SHAFT

$

$

Not available

8

$

$

Not available

9

$4.99

$

Usually ships in 3-6 days

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 98-3632

WASHER-FLANGE

$

$

Not available

12

Toro 98-3630

ARM-IDLER

$

$

Not available

13

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 98-3636

SPRING

$

$

Not available

16

Toro 705681

BOLT-CARRIAGE
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

17

Toro 98-3624

BELT-V

$

$

Not available

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

21

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 98-9135

IDLER-FLAT

$226.99

$

Usually ships in 3-6 days

0

25

Toro 98-3623

PULLEY-V

$

$

Not available

26

Toro 3250-17

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 98-9150

BEARING

$200.99

$

Usually ships in 3-6 days

0

29

Toro 98-9145

NUT-INSERT

$

$

Not available

30

Toro 98-9139

SUPPORT-SHAFT

$

$

Not available

31

Toro 98-9164

COVER-BEARING

$

$

Not available

32

Toro 32144-23

SCREW-HWH, THREAD FORMING

$

$

Not available

33

Toro 98-9151

SEAL-STRIPPING

$

$

Not available
