79451 - Toro Quiet Collector for Wheel Horse 5xi Tractors (SN: 099000001 - 099999999) (1999) COLLECTOR REAR SECTION ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 5xi Tractors

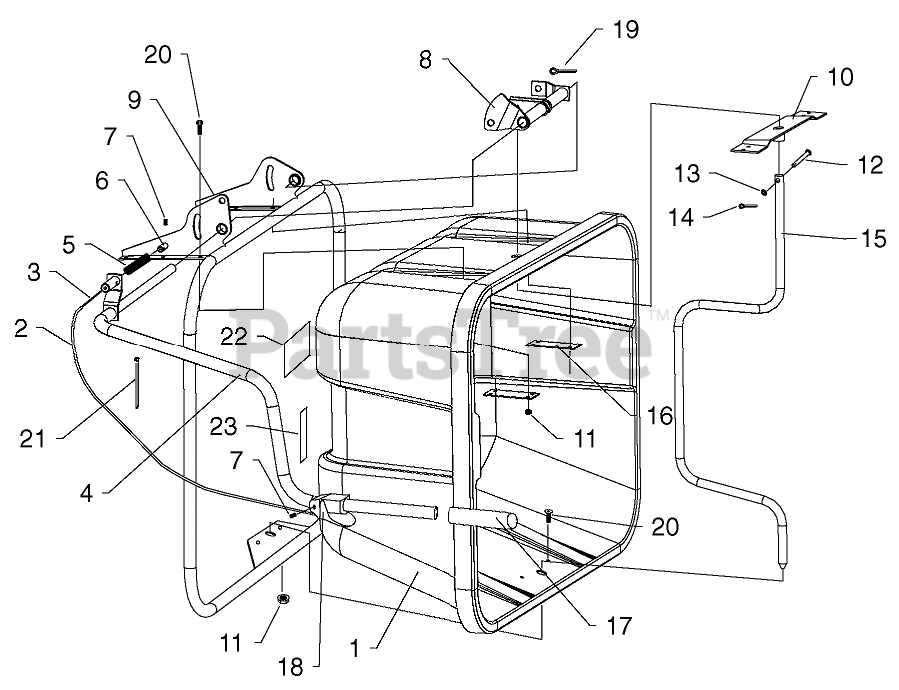

COLLECTOR REAR SECTION ASSEMBLY Parts Diagram

  • Title
1

Toro 98-3606

HOPPER-BACK

$

$

Not available

2

Toro 98-3619

SHIELD-CABLE

$

$

Not available

3

Toro 98-3621

CABLE

$

$

Not available

4

Toro 98-3646

Arm-dump (incl. ref. #23)

$

$

Not available

5

Toro 98-3627

SPRING

$

$

Not available

6

Toro 98-3665

PIN-LOCK

$

$

Not available

7

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

8

Toro 98-3657

LEVER

$

$

Not available

9

Toro 98-3661

CHASSIS

$

$

Not available

10

Toro 98-3653

GUIDE

$

$

Not available

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

12

$

$

Not available

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 98-3655

Rod-Locking

$

$

Not available

16

Toro 98-3654

PLATE

$

$

Not available

17

Toro 98-3669

GRIP-HANDLE

$

$

Not available

18

Toro 98-3622

LEVER-CONTROL

$

$

Not available

19

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

20

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

23

Toro 98-3679

LABEL-DUMP ARM OPERATION

$

$

Not available
