79451 - Toro Quiet Collector for Wheel Horse 5xi Tractors (SN: 099000001 - 099999999) (1999) COLLECTOR FRONT SECTION ASSEMBLY Parts Diagram

Quiet Collector for Wheel Horse 5xi Tractors

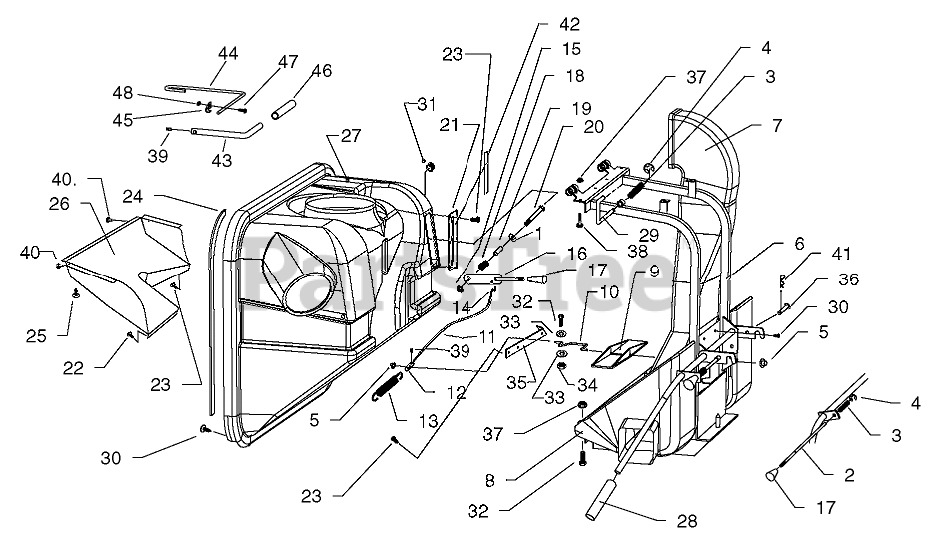

COLLECTOR FRONT SECTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

2

Toro 98-3668

PIN-HITCH

$

$

Not available

3

Toro 98-3640

SPRING

$

$

Not available

4

Toro 98-3659

RING-RETAINER

$

$

Not available

5

Toro 98-3652

WASHER-CAP

$

$

Not available

6

Toro 98-3651

FRAME

$

$

Not available

7

Toro 98-3605

DOCK-AIR

$691.99

$

Usually ships in 3-6 days

0

8

Toro 98-3602

HOPPER-BOTTOM

$1023.99

$

Usually ships in 3-6 days

0

9

Toro 98-3611

DOOR-AIR

$

$

Not available

10

Toro 98-3644

LEVER-DOOR

$

$

Not available

11

Toro 98-3618

SHIELD-CABLE

$

$

Not available

12

Toro 98-3681

END-CABLE

$

$

Not available

13

Toro 98-3642

SPRING

$

$

Not available

14

Toro 98-3620

CABLE

$

$

Not available

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 98-3658

LEVER-DRAFT

$

$

Not available

17

Toro 98-3672

KNOB-OVAL

$

$

Not available

18

Toro 98-3647

SPRING

$

$

Not available

19

Toro 98-3648

SLEEVE

$

$

Not available

20

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-3612

Plate-lever (incl. ref. #42)

$

$

Not available

22

Toro 32144-118

SCREW-PPH

$

$

Not available

23

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

24

Toro 98-3645

SEAL-STRIPPING

$

$

Not available

25

Toro 32144-100

Screw-Hex Washer Hd.

$1.49

$

In Stock, only 1 left!

0

26

Toro 98-3673

FILTER
(Superseded to 110-9095)

$

$

Not available

27

Toro 98-3601

HOPPER-FRONT

$1520.99

$

Usually ships in 3-6 days

0

28

Toro 98-3662

GRIP-HANDLE

$

$

Not available

29

Toro 98-3613

HOOK

$

$

Not available

30

Toro 32144-23

SCREW-HWH, THREAD FORMING

$

$

Not available

31

Toro 98-3650

CAP-RUBBER

$

$

Not available

32

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

35

Toro 98-3694

BRACKET-REINFORCING

$

$

Not available

36

Toro 98-3695

PIN-HITCH

$

$

Not available

37

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

38

Toro 3229-24

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

39

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

40

Toro 3269-8

RIVET-BLIND

$0.99

$

Usually ships in 3-6 days

0

41

Toro 98-3696

HAIRPIN

$2.99

$

Usually ships in 3-6 days

0

42

Toro 98-3680

Decal-Air Direction

$

$

Not available

43

Toro 98-9143

ARM-FILL GAUGE

$

$

Not available

44

Toro 98-9142

ROD-FILL GAUGE

$

$

Not available

45

Toro 98-9144

CLIP-CABLE, NYLON

$

$

Not available

46

Toro 98-9149

GRIP-HANDLE

$

$

Not available

47

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

48

Toro 3D6531

Nut-hex H. #10-24

$

$

Currently unavailable
