79434 - Toro 48" Grass Collection System (SN: 089001637 - 089999999) (1998) BUMPER ASM Parts Diagram

48" Grass Collection System

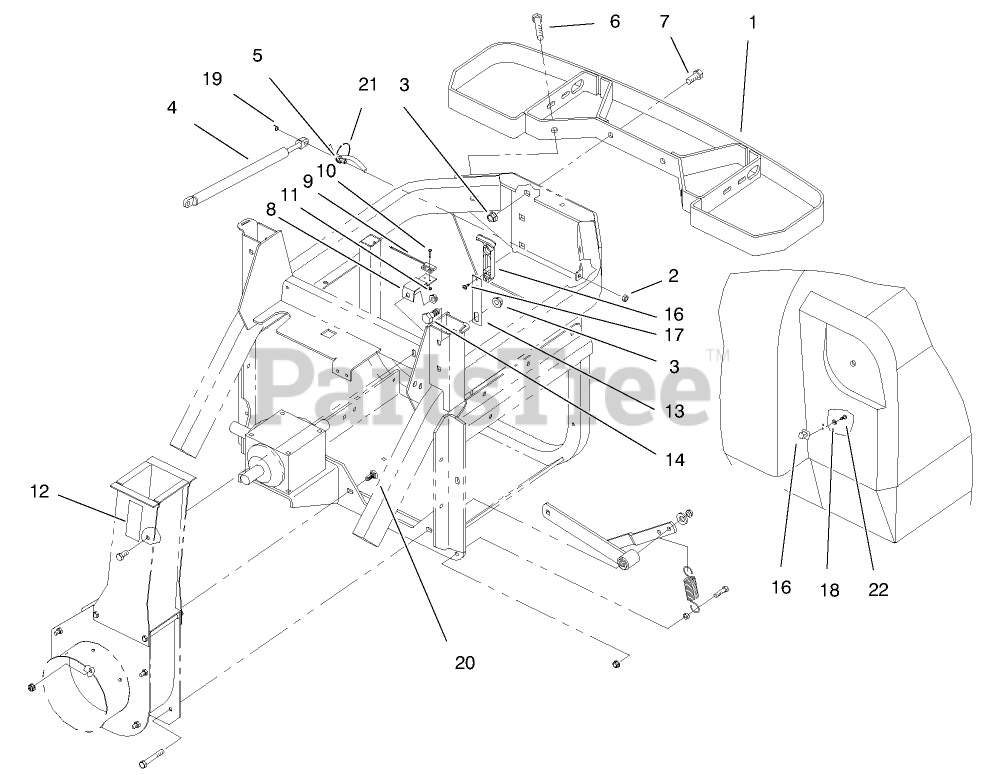

BUMPER ASM Parts Diagram

  • Title

1

Toro 95-6414

BumperASM
(Superseded to 104-0358-03)

$980.99

$

Usually ships in 3-6 days

0

2

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

3

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

4

Toro 98-3043

SPRING-GAS

$353.99

$

Usually ships in 3-6 days

0

5

Toro 88-6770

STUD-BALL

$5.99

$

In Stock, only 1 left!

0

6

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

7

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

8

Toro 98-0823

Bracket-Switch
(Superseded to 98-0823-03)

$

$

Not available

9

Toro 95-7669

SWITCH-REED, MAGNETIC

$

$

Not available

10

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

12

Toro 79-0360

DECAL-DANGER

$

$

Not available

13

Toro 98-3032

Bracket-Latch
(Superseded to 98-3032-03)

$

$

Not available

14

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

16

Toro 94-5626

FLEXIBLE DRAW LATCH ASM

$51.99

$

Usually ships in 3-6 days

0

17

Toro 3290-359

SCREW-HWH

$

$

Not available

18

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 98-3044

CLIP-SAFETY

$

$

Not available

20

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0
