79434 - Toro 48" Grass Collection System (SN: 089000001 - 089000522) (1998) PLENUM AND DISCHARGE BRACKET Parts Diagram

48" Grass Collection System

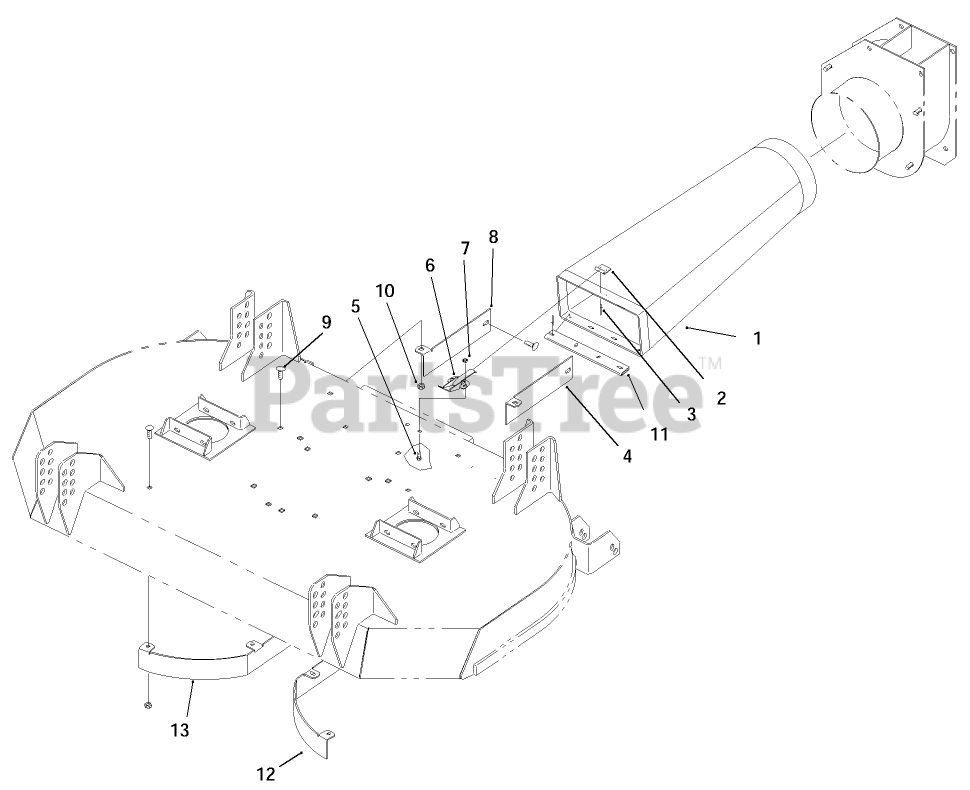

PLENUM AND DISCHARGE BRACKET Parts Diagram

  • Title

1

Toro 95-4323

Plenum
(Superseded to 99-0258)

$299.99

$

Usually ships in 3-6 days

0

2

Toro 95-6424

TAB - PLENUM

$

$

Not available

3

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 98-3002

Bracket-Discharge
(Superseded to 98-3002-01)

$31.99

$

Usually ships in 3-6 days

0

5

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

6

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 98-3003

Bracket-Discharge
(Superseded to 98-3003-01)

$

$

Not available

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

11

Toro 98-0843

GUARD - PLENUM B

$29.99

$

Usually ships in 3-6 days

0

12

Toro 98-3015

Baffle-LH
(Superseded to 98-3015-01)

$

$

Not available

13

Toro 98-3016

Baffle-RH
(Superseded to 98-3016-01)

$

$

Not available
