79433 - Toro 52" Vacuum Bagger for Z Master (SN: 079000001 - 079999999) (1997) BLOWER PULLEY AND IDLER ARM ASSEMBLY Parts Diagram

52" Vacuum Bagger for Z Master

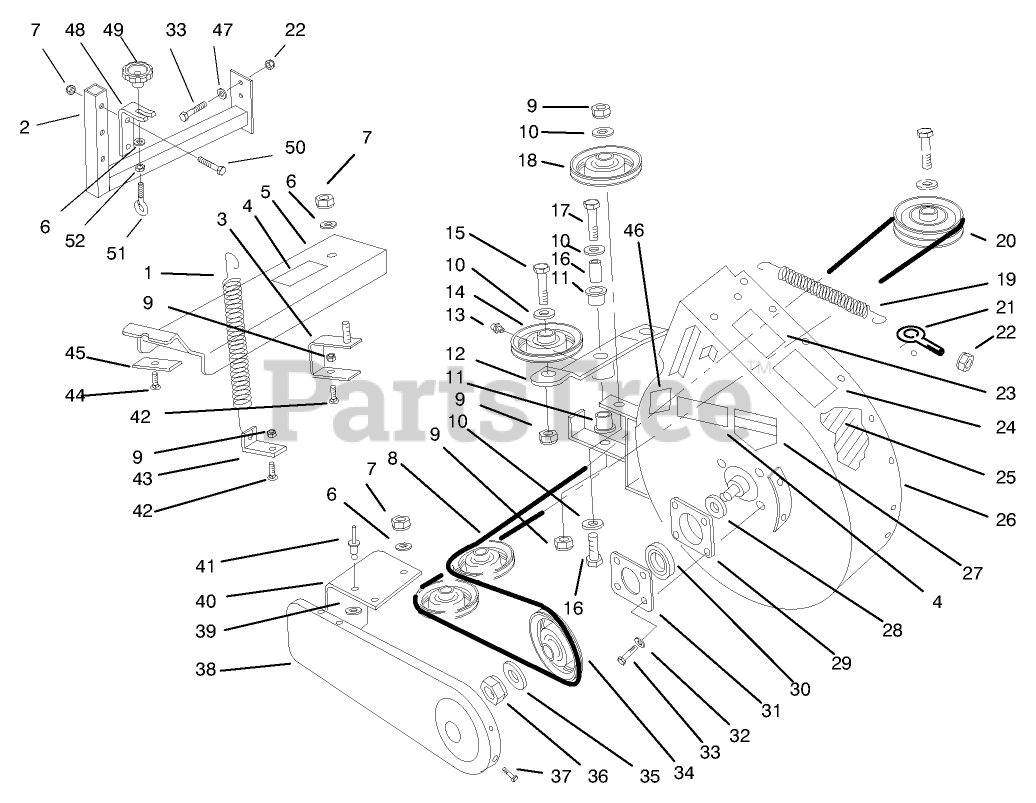

BLOWER PULLEY AND IDLER ARM ASSEMBLY Parts Diagram

  • Title
1

Toro 79-0020

SPRING-EXTENSION

$

$

Not available

2

Toro 94-6291

WA - BRACKET

$

$

Not available

3

Toro 79-1220

BRACKET-SHIELD B

$

$

Not available

4

Toro 79-0350

DECAL-DANGER

$

$

Not available

5

Toro 79-1110

COVER-BELT B

$

$

Not available

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

8

Toro 79-1830

BELT-V

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

12

Toro 78-0750

ARM-IDLER-WELDED B

$

$

Not available

13

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

14

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

15

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 114511

SPACER

$72.99

$

Usually ships in 3-6 days

0

17

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

19

Toro 6533

SPRING

$

$

Not available

20

Toro 94-6273

PULLEY - DRIVE BLOWER

$664.99

$

Usually ships in 3-6 days

0

21

Toro 102555

EYE BOLT

$

$

Not available

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 79-0360

DECAL-DANGER

$

$

Not available

24

Toro 92-2511

DECAL - WARNING

$

$

Not available

25

Toro 79-1880

STRIP-WEAR

$

$

Not available

26

Toro 94-9698

BLOWER ASM W/DECALS

$

$

Not available

27

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0

28

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 1 left!

0

29

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 2 left!

0

30

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

31

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 3 left!

0

32

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 78-0730

PULLEY-BLOWER R

$140.99

$

In Stock, only 1 left!

0

35

Toro 9202604

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

36

Toro 3218-12

NUT 5/8-11 L.H.

$7.49

$

Usually ships in 3-6 days

0

37

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

38

Toro 78-9120

SHIELD-PULLEY B

$

$

Not available

39

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

40

Toro 78-5450

SHIELD

$

$

Not available

41

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

42

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

44

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

45

Toro 78-7830

STRAP B

$

$

Not available

46

Toro 44-3216

Decal

$

$

Currently unavailable

47

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

48

Toro 94-6293

PLATE - SUPPORT

$

$

Not available

49

$17.99

$

In Stock, only 3 left!

0

50

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

51

Toro 55-9420

BOLT-EYE

$11.99

$

In Stock, only 2 left!

0

52

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
