79431 - Toro 60" Vacuum Bagger for ZRT Tractor (SN: 059000001 - 059999999) (1995) BLOWER HOUSING ASSEMBLY Parts Diagram

60" Vacuum Bagger for ZRT Tractor

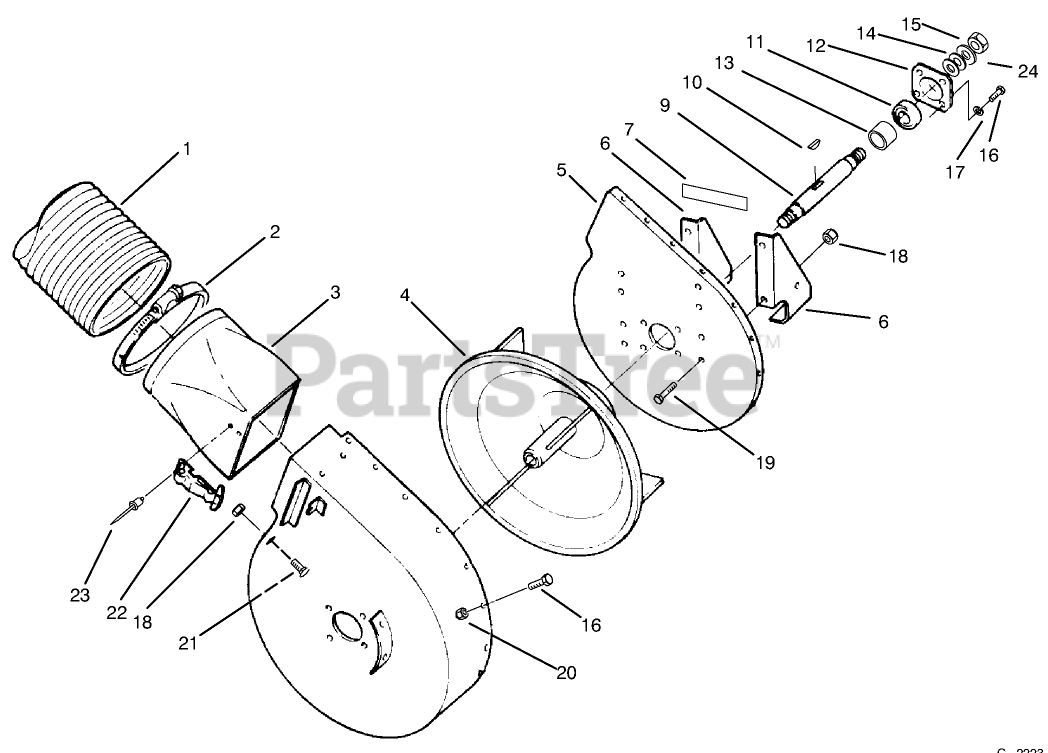

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Hose-Flexible (Ref.)

$

$

Not available

2

Toro 102528

CLAMP

$13.99

$

Usually ships in 3-6 days

0

3

Toro 79-0900

ADAPTER

$444.99

$

Usually ships in 3-6 days

0

4

Toro 79-1961

IMPELLER - WELDED BLACK

$1498.99

$

Usually ships in 3-6 days

0

5

Toro 78-6491

Plate-Mount
(Superseded to 93-1637)

$

$

Not available

6

Toro 78-5560

BRACKET-BLOWER MT B

$73.99

$

Usually ships in 3-6 days

0

7

Toro 82-5510

DECAL

$8.49

$

Usually ships in 3-6 days

0

9

Toro 78-5410

SHAFT- BLOWER

$

$

Not available

10

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

11

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

12

Toro 37-6730

CUP-BEARING

$17.99

$

In Stock, only 2 left!

0

13

Toro 7989

SPACER

$14.99

$

In Stock, only 2 left!

0

14

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 15

0

15

Toro 3218-12

NUT 5/8-11 L.H.

$

$

Not available

16

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 117344

HANDLE ASM

$36.99

$

Usually ships in 3-6 days

0

23

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

24

Toro 9202604

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

Toro 93-1637

Mount Plate Asm (Incl. Ref. #7)

Note: Not illustrated

$

$

Not available
