79430 - Toro 50" Vacuum Bagger for ZRT Tractor (SN: 059000001 - 059999999) (1995) CANISTER SUPPORT ASSEMBLY Parts Diagram

50" Vacuum Bagger for ZRT Tractor

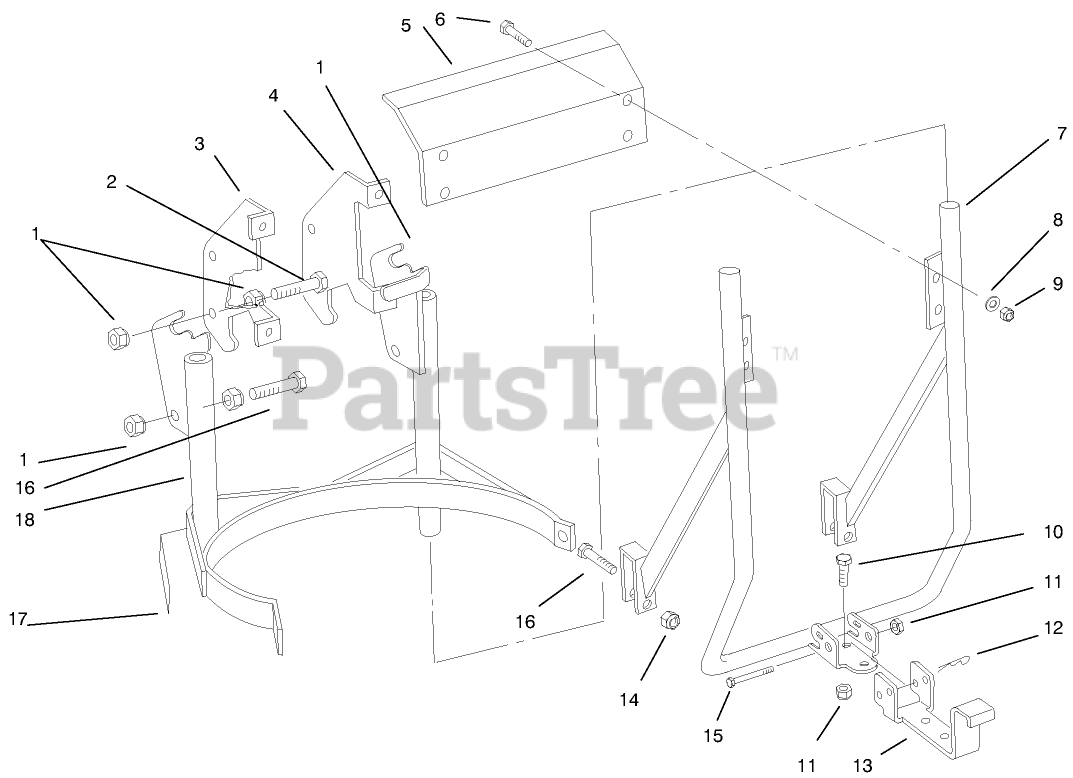

CANISTER SUPPORT ASSEMBLY Parts Diagram

  • Title

1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

2

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Toro 78-0610

LH TOP BRACKET B

$

$

Not available

4

Toro 78-0620

RH TOP BRACKET B

$

$

Not available

5

Toro 78-9760

SHIELD-HEAT B

$87.99

$

Usually ships in 3-6 days

0

6

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

7

Toro 78-0630

MOUNT-BAGGER W.A. B

$

$

Not available

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

11

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

13

Toro 78-9930

BRACKET-SUPT B

$

$

Not available

16

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

16

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 79-3970

DECAL-DANGER

$

$

Not available

18

Toro 93-1638

Support, Canister Asm (Incl. Ref. 17)

$565.99

$

Usually ships in 3-6 days

0

Toro 79-4040

Template-Mount, Blower

Note: Not illustrated

$

$

Currently unavailable
