79409 (Z 300) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) FRONT FRAME ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

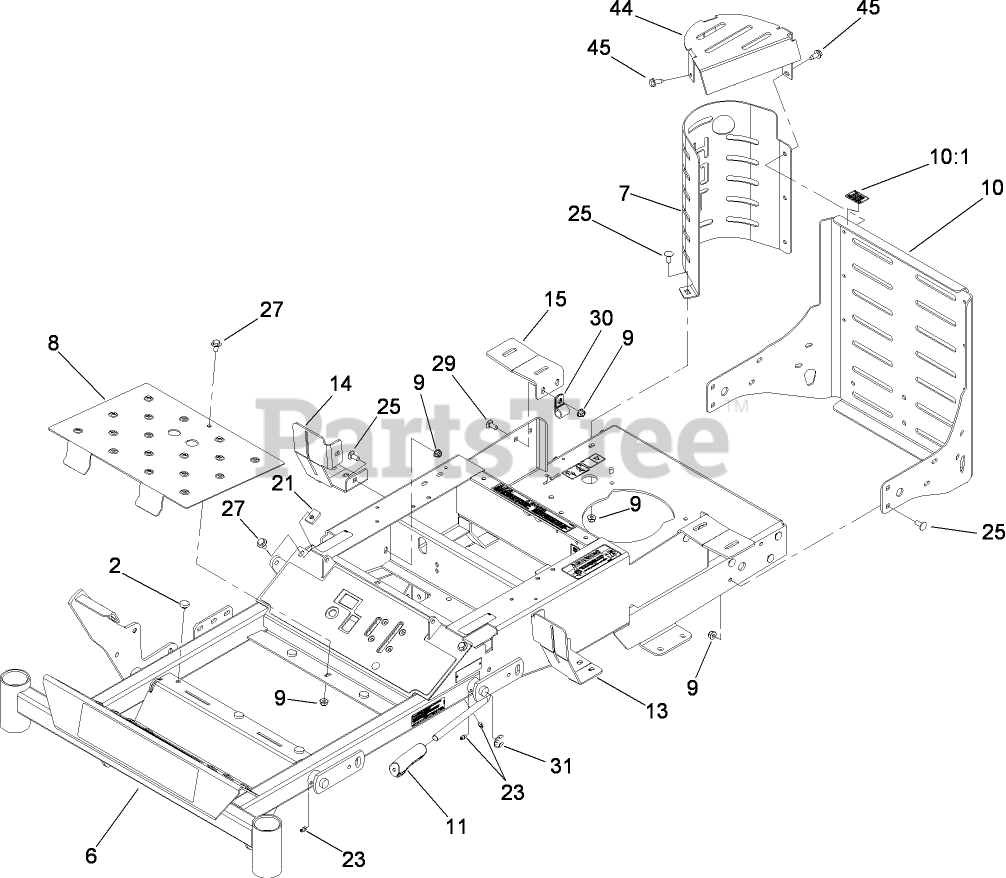

FRONT FRAME ASSEMBLY Parts Diagram

  • Title
2

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

6

Toro 114-0525

FRAME ASM

$

$

Not available

7

Toro 103-9343-03

GUARD-MUFFLER

$205.99

$

In Stock, only 1 left!

0

8

Toro 103-9381-03

PLATE-FLOOR

$124.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 114-0543

REAR GUARD ASM

$276.99

$

Usually ships in 3-6 days

0

10:1

Toro 93-8069

DECAL-SURFACE, HOT

$12.99

$

Usually ships in 3-6 days

0

11

Toro 109-0375

GRIP-LEVER, BRAKE

$16.99

$

Usually ships in 3-6 days

0

13

Toro 109-2421-03

MOUNT-TANK, FUEL (LH)

$59.99

$

Usually ships in 3-6 days

0

14

Toro 109-2422-03

MOUNT-TANK, FUEL (RH)

$

$

Not available

15

Toro 109-2429-03

BRACKET-FUEL TANK, REAR

$

$

Not available

21

Toro 109-2605

STOP-MOTION

$

$

Not available

23

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

25

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

27

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

30

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

31

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

44

Toro 114-0481-03

SHIELD-HEAT

$

$

Not available

45

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
