79408 (Z 300) - Toro 34" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) BRAKE LINKAGE ASSEMBLY Parts Diagram

34" Z Master Zero-Turn Mower, Side-Discharge Deck

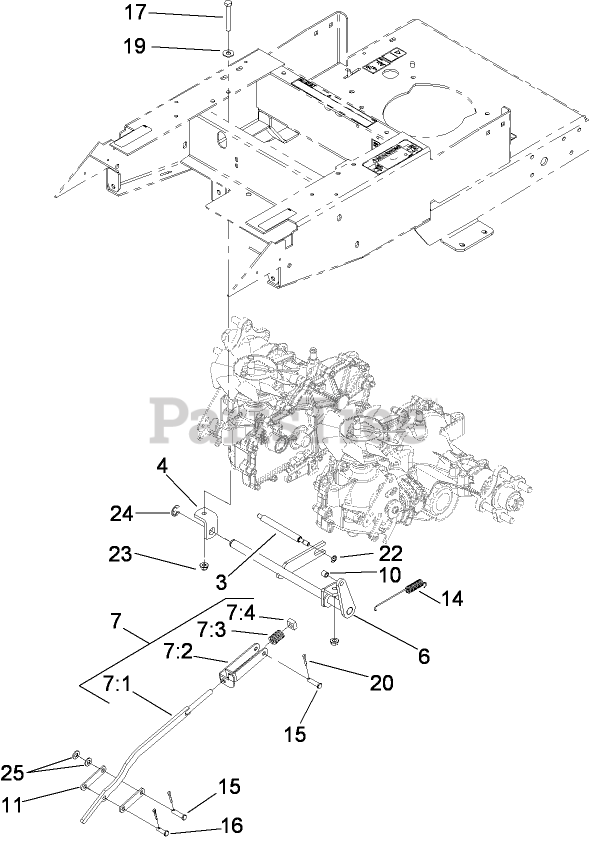

BRAKE LINKAGE ASSEMBLY Parts Diagram

  • Title

3

Toro 103-9408

BAR-EQUALIZER

$18.99

$

Usually ships in 3-6 days

0

4

Toro 103-9409

BRACKET-PIVOT, BRAKE

$39.99

$

Usually ships in 3-6 days

0

6

Toro 109-5376

BELLCRANK-BRAKE

$

$

Not available

7

BRAKE LINK ASM

Note: Not serviced separately

$

$

Not available

7:1

Toro 109-5370

LINK-BRAKE

$92.99

$

Usually ships in 3-6 days

0

7:2

Toro 114-0548

CLEVIS-BRAKE

$108.99

$

Usually ships in 3-6 days

0

7:3

Toro 103-9925

SPRING-BRAKE

$36.99

$

Usually ships in 3-6 days

0

7:4

Toro 103-9926

NUT-SQUARE

$

$

Not available

10

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

11

Toro 109-0223

LINK-CENTER, OVER

$6.99

$

Usually ships in 3-6 days

0

14

Toro 109-2861

SPRING-RETURN, BRAKE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 283-6

PIN-CLEVIS

$1.99

$

In Stock, Qty 11

0

16

Toro 283-75

PIN-CLEVIS

$3.49

$

Usually ships in 3-6 days

0

17

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

19

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

22

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, only 4 left!

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
