79401 - Toro 42" Easy Twin Vacuum Bagger (SN: 079000001 - 079999999) (1997) 42" DECK COMPONENTS ASSEMBLY Parts Diagram

42" Easy Twin Vacuum Bagger

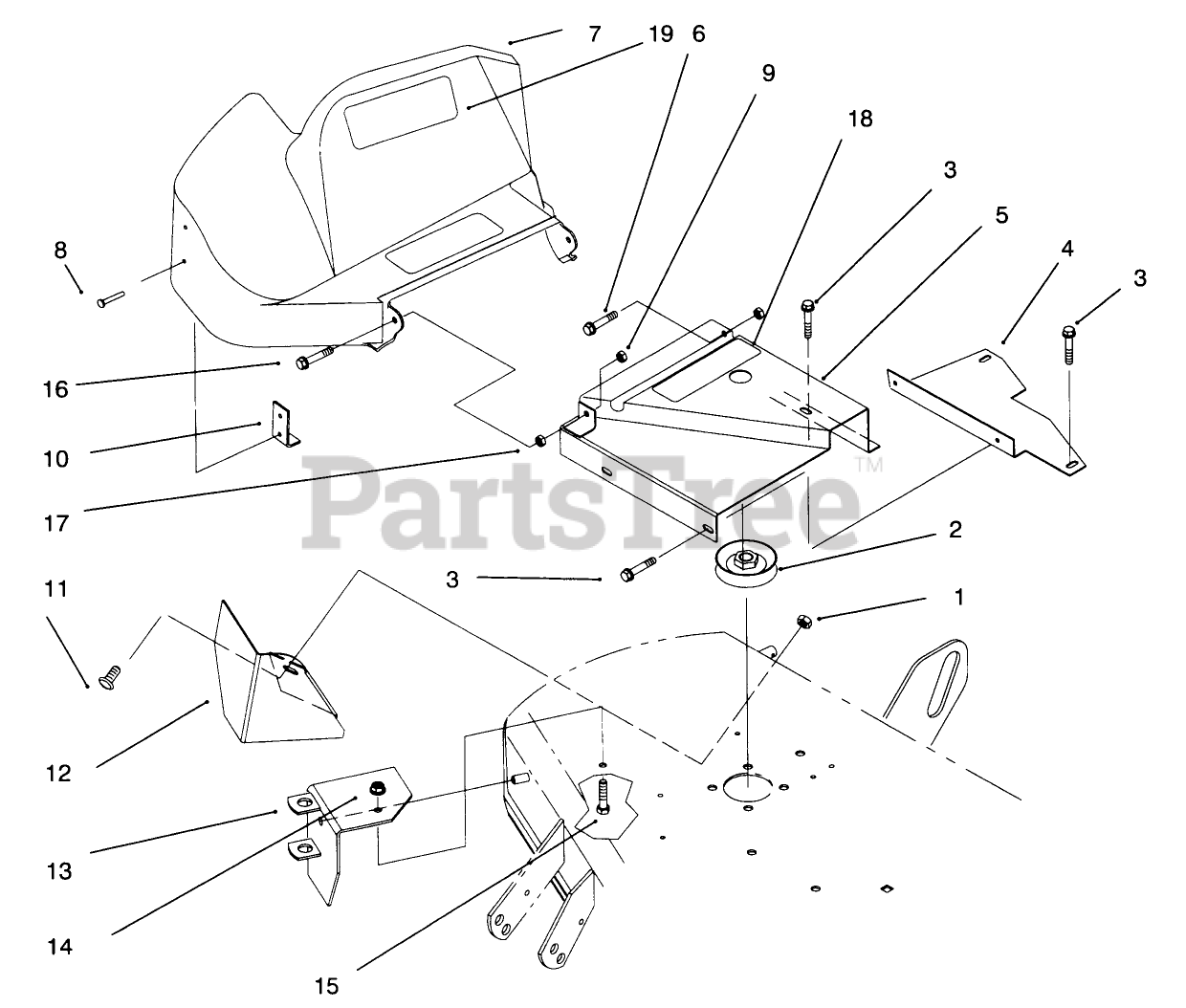

42" DECK COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

2

Toro 79-7150

42" Y PULLEY

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 79-7120

42" ADAPTOR SHIELD B
(Superseded to 79-7120-03)

$34.99

$

Usually ships in 3-6 days

0

5

Toro 92-1158

Inner Shield Asm. (Incl. Ref. #18)

$

$

Not available

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 86-9300

SHIELD-BELT

$

$

Not available

8

Toro 79-0470

RIVET-POP

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

10

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 79-7300

42" DEFLECTOR B
(Superseded to 79-7300-03)

$77.99

$

Usually ships in 3-6 days

0

13

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$124.99

$

Usually ships in 3-6 days

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

18

Toro 79-7610

DECAL - DANGER

$

$

Not available

19

Toro 79-7620

DECAL - DANGER

$

$

Not available

Toro 92-1164

Belt Shield Asm. (Incl. Ref. #1 & 19)
(Superseded to 86-9300)

$

$

Not available
