79396 - Toro 60" Bagger Kit for TimeCutter MX 6050 Mower (SN: 400000000 - 999999999) BAGGER ASSEMBLY Parts Diagram

60" Bagger Kit for TimeCutter MX 6050 Mower

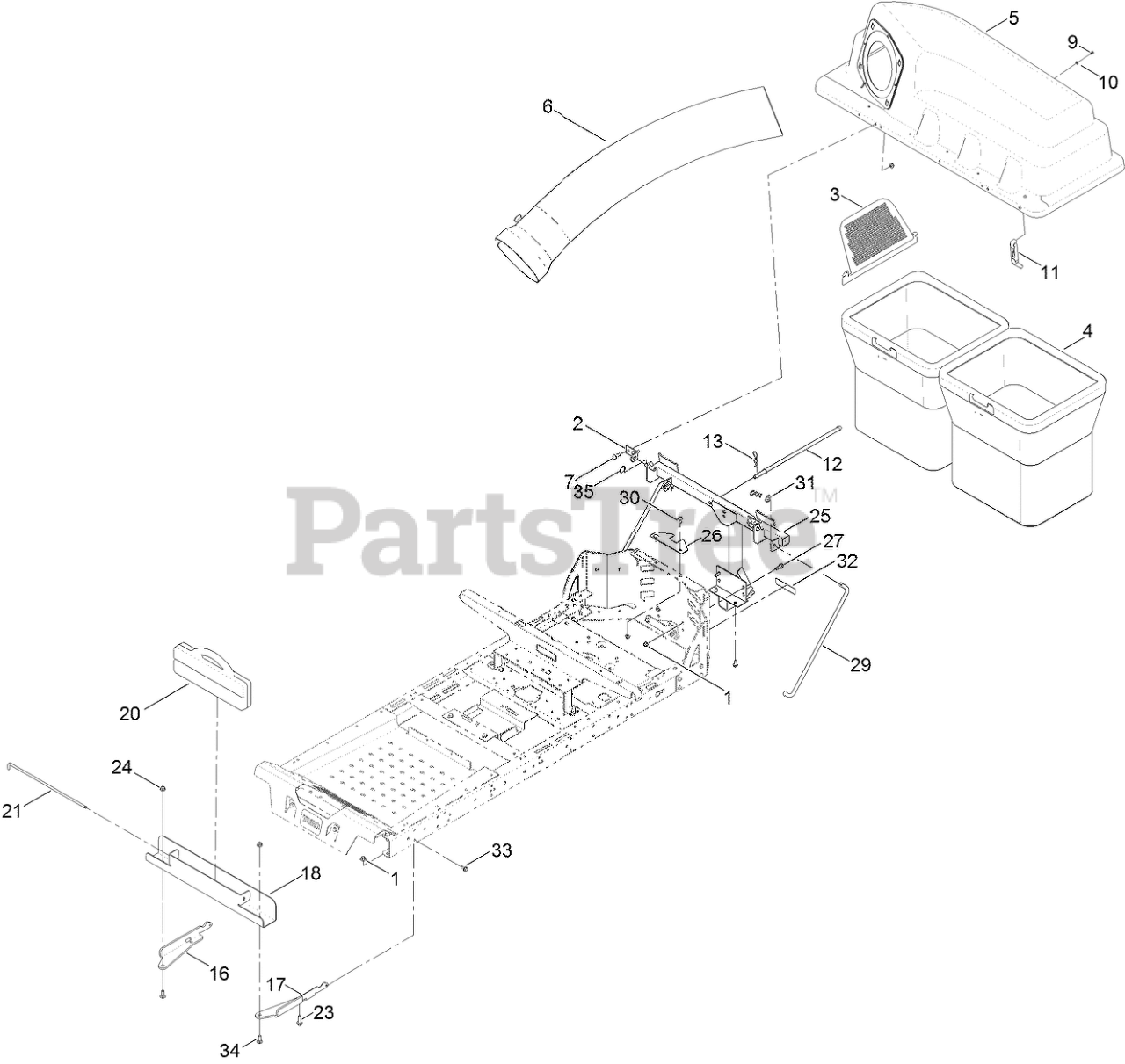

BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Toro 112-3987

BRACKET-PIVOT, HOPPER

$8.49

$

Usually ships in 3-6 days

0

3

Toro 112-3993

SCREEN-BAGGER

$30.99

$

In Stock, only 1 left!

0

4

Toro 112-3994

BAG ASM

$181.99

$

In Stock, only 2 left!

0

5

Toro 131-8654

BAGGER TOP ASM

$237.99

$

Usually ships in 3-6 days

0

6

Toro 117-5379

TUBE-BAGGER

$225.99

$

Usually ships in 3-6 days

0

7

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

9

Toro 132-6919

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

11

Toro 116-4992

LATCH-RUBBER

$50.99

$

In Stock, only 1 left!

0

12

Toro 131-4189

ROD-HOOD, DOWN (HOLD)

$23.99

$

In Stock, only 1 left!

0

13

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

16

Toro 136-7461-03

BRACKET-WEIGHT, RH

$34.99

$

Usually ships in 3-6 days

0

17

Toro 136-7462-03

BRACKET-WEIGHT, LH

$34.99

$

Usually ships in 3-6 days

0

18

Toro 120-5491-03

CHANNEL-WEIGHT, BAGGER

$106.99

$

Usually ships in 3-6 days

0

20

Toro 109-9742-05

WEIGHT-35 POUND

$463.99

$

Usually ships in 3-6 days

0

21

Toro 109-9759

PIN-WEIGHT

$

$

Not available

23

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 136-4231-03

FRAME-PIVOT

$337.99

$

Usually ships in 3-6 days

0

26

Toro 131-3967-03

BRACKET-STABILIZER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

29

Toro 136-5593

ROD-SUPPORT

$19.99

$

Usually ships in 3-6 days

0

30

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

35

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0
