79380 - Toro Front Mount Mower Carrier for 300 Series Tractors (SN: 039000001 - 039999999) (1993) FRONT MOUNT CARRIER Parts Diagram

Front Mount Mower Carrier for 300 Series Tractors

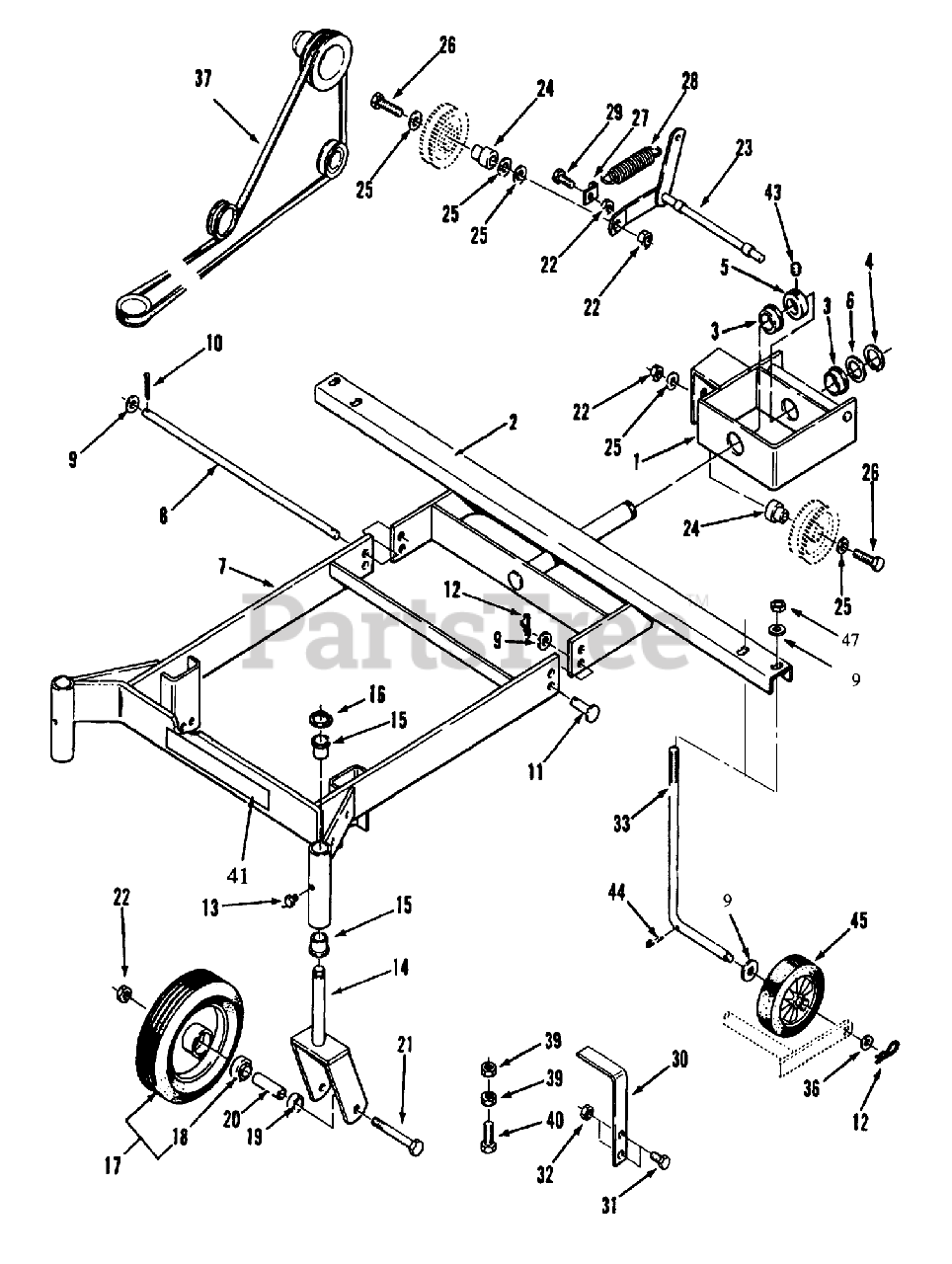

FRONT MOUNT CARRIER Parts Diagram

  • Title
1

Toro 116283

ASS'Y-HITCH FRAME R

$

$

Not available

2

Toro 110517

ASSY PIVOT FRAME R

$

$

Not available

3

Toro 103007

BUSHING

$

$

Not available

4

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

5

Toro 8192

Collar

$

$

Not available

6

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

7

Toro 109938

ASSY FRAME R

$

$

Not available

8

Toro 109945

PivotRod

$

$

Not available

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

11

Toro 932997

CLEVIS PIN

$

$

Not available

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 109946

ASSY SWIVEL CASTE R

$

$

Not available

15

Toro 106872

BUSHING

$58.99

$

Usually ships in 3-6 days

0

16

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

17

Toro 114275

Wheel Assembly (incl. Ref. #18)

$

$

Not available

18

Toro 114276

Bearing-Ball

$

$

Not available

19

Toro 100686

SPACER

$

$

Not available

20

Toro 109950

SPACER

$23.99

$

Usually ships in 3-6 days

0

21

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

22

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

23

Toro 109951

ASSY BELT ADJ R

$

$

Not available

24

Toro 109785

SPACER

$

$

Not available

25

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

26

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

28

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

29

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 106380

HANDLE-EXTENSION R

$

$

Not available

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

33

Toro 110519

ROD HANGER R

$

$

Not available

36

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 109956

BELT MOWER DRIVE

$

$

Not available

39

Toro 109779

NUT-HEX, JAM

$

$

Not available

40

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0

43

Toro 909531

Screw-Set

$

$

Not available

44

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

45

Toro 109375

WHEEL ASM

$

$

Not available

47

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
