79375 - Toro 36" Tiller for 5xi Tractors (SN: 200000001 - 200999999) (2000) JACKSHAFT ASSEMBLY Parts Diagram

36" Tiller for 5xi Tractors

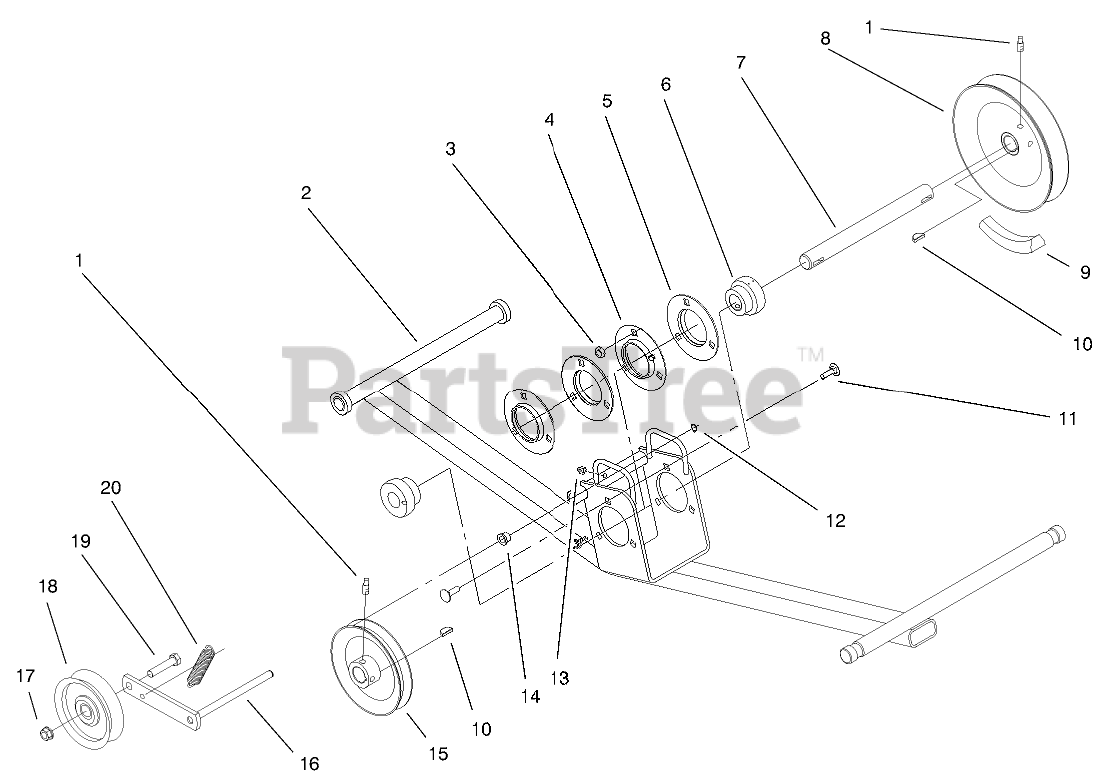

JACKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

2

Toro 94-7876

WA - SUPPORT, JACKSHAFT
(Superseded to 94-7876-03)

$943.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

5

Toro 110568

Flange

$20.99

$

In Stock, only 3 left!

0

6

Toro 110569

BEARING AND COLLAR

$117.99

$

In Stock, only 2 left!

0

7

Toro 94-7840

SHAFT-JACK

$151.99

$

Usually ships in 3-6 days

0

8

Toro 94-7841

PULLEY-DRIVE

$

$

Not available

9

Toro 98-8707

V-BELT-FRONT

$116.99

$

Usually ships in 3-6 days

0

10

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 98-1644

BUSHING-FLANGED

$

$

Not available

15

Toro 94-7842

PULLEY-V

$

$

Not available

16

Toro 94-7879

WA - IDLER LEVER

$

$

Not available

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 92-7084

PULLEY-IDLER, FLAT

$41.99

$

In Stock, only 2 left!

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 6135

SPRING-BRAKE

$14.99

$

In Stock, only 1 left!

0

1

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 1 left!

0

2

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

14

Toro 100-1581

GUIDE-CABLE

$

$

Not available
