79370 - Toro 36" Tiller for 300 Series Tractors (SN: 230000001 - 230999999) (2003) MID HITCH IDLER ASSEMBLY Parts Diagram

36" Tiller for 300 Series Tractors

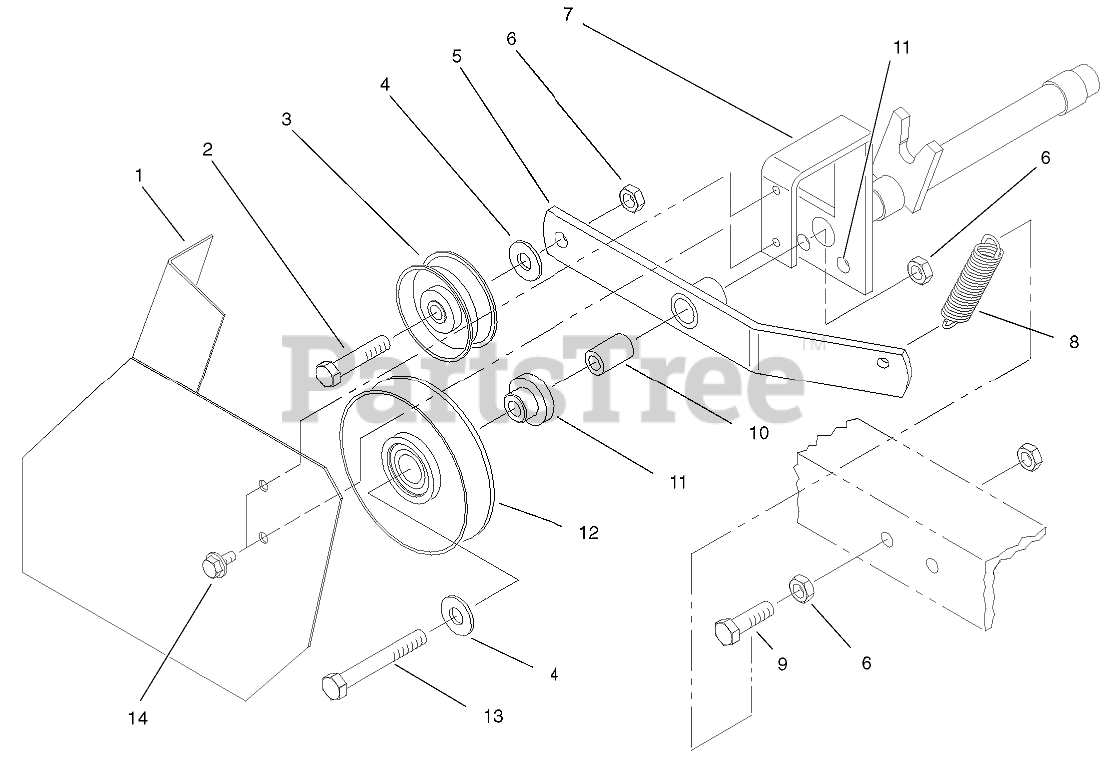

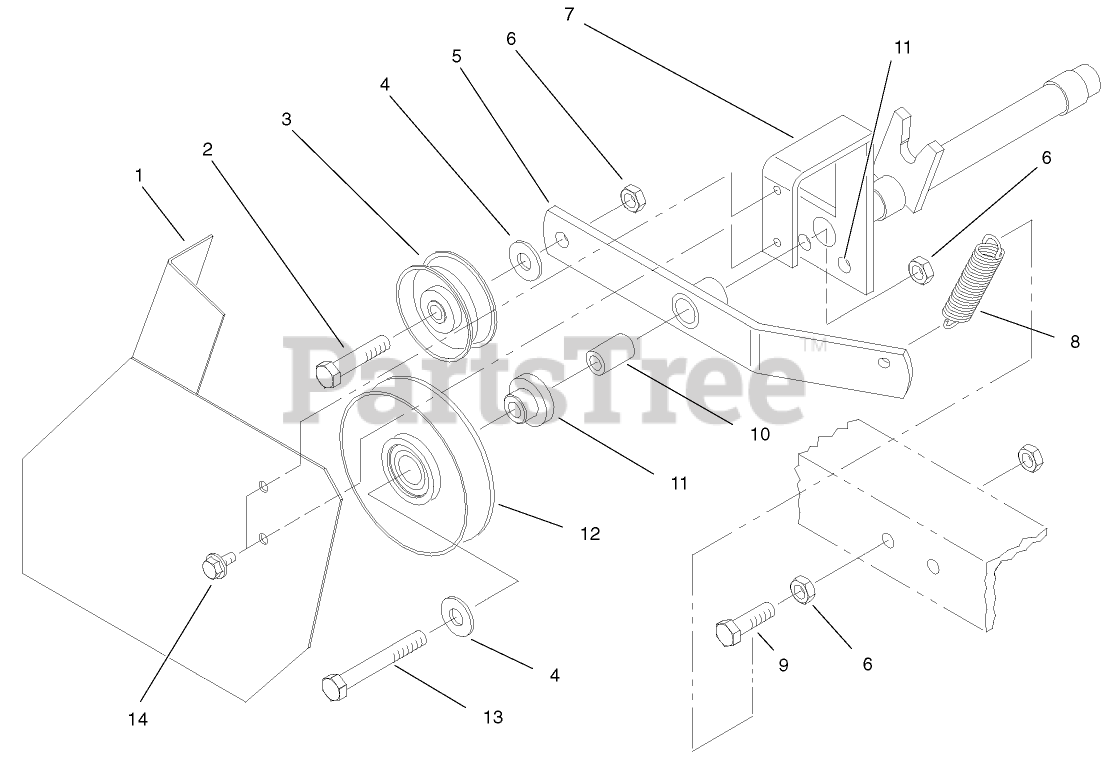

MID HITCH IDLER ASSEMBLY Parts Diagram

  • Title
1

Toro 110039-01

Front Idler Guard ASM

$

$

Not available

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro MW8821

IDLER PULLEY

$21.99

$

Usually ships in 3-6 days

0

4

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 92-4082-01

Idler Arm ASM

$

$

Not available

6

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

7

Toro 110008-01

Support ASM (Welded)

$

$

Not available

8

Toro 6135

SPRING-BRAKE

$12.99

$

In Stock, only 1 left!

0

9

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 102025

SPACER

$

$

Not available

11

Toro 83-2950

SPACER

$

$

Not available

12

Toro 92-7103

PULLEY-IDLER

$53.99

$

In Stock, only 3 left!

0

13

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

14

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0
