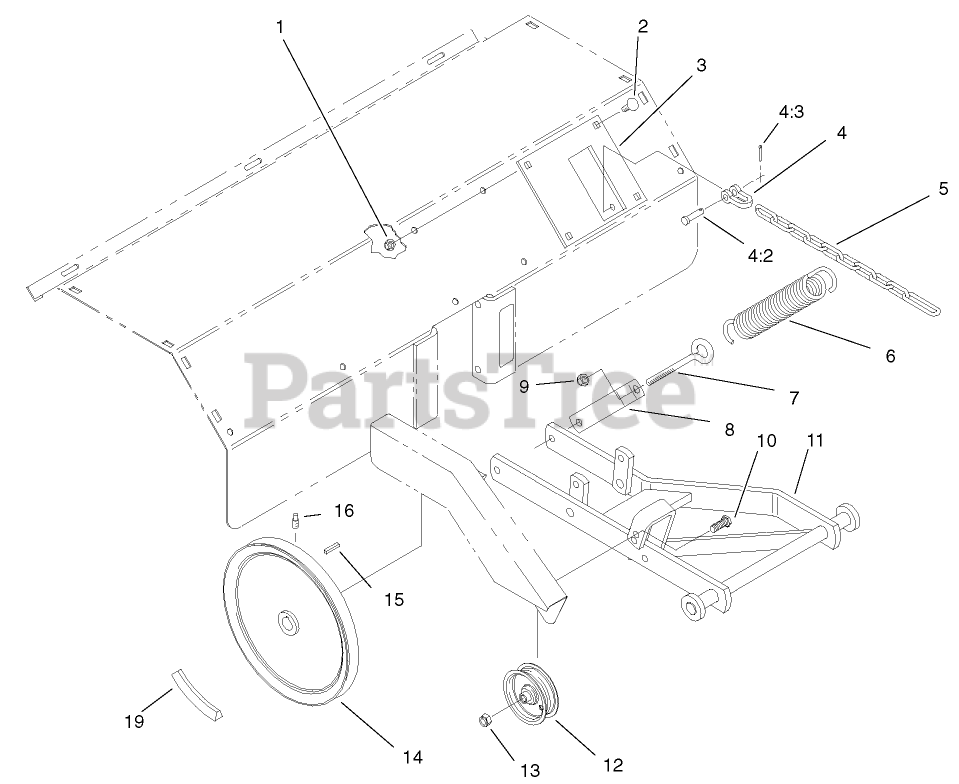

79370 - Toro 36" Tiller for 300 Series Tractors (SN: 230000001 - 230999999) (2003) HITCH, DRIVE AND IDLER PULLEYS Parts Diagram

36" Tiller for 300 Series Tractors

HITCH, DRIVE AND IDLER PULLEYS Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 93-1608-01

HITCH ASM
(Superseded to 93-1608-03)

$

$

Not available

4

Toro 79-2280

CLEVIS ASM

$19.99

$

Usually ships in 3-6 days

0

4:2

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

4:3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 110046

CHAIN LIFT
(Superseded to 92-7074)

$

$

Not available

6

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

7

Toro 100653

EYEBOLT

$22.99

$

Usually ships in 3-6 days

0

8

Toro 93-1606-03

BRACKET-SPRING

$42.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 9114044

Bolt

$

$

Currently unavailable

11

Toro 93-1607-03

HITCH ASM

$

$

Not available

12

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

13

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

14

Toro 93-0345

PULLEY

$164.99

$

Usually ships in 3-6 days

0

15

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

In Stock, only 4 left!

0

16

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

19

Toro 110265

V-BELT

$96.99

$

Usually ships in 3-6 days

0
