79370 - Toro 36" Tiller for 300 Series Tractors (SN: 059000001 - 059999999) (1995) REAR AXLE MOUNT HITCH Parts Diagram

36" Tiller for 300 Series Tractors

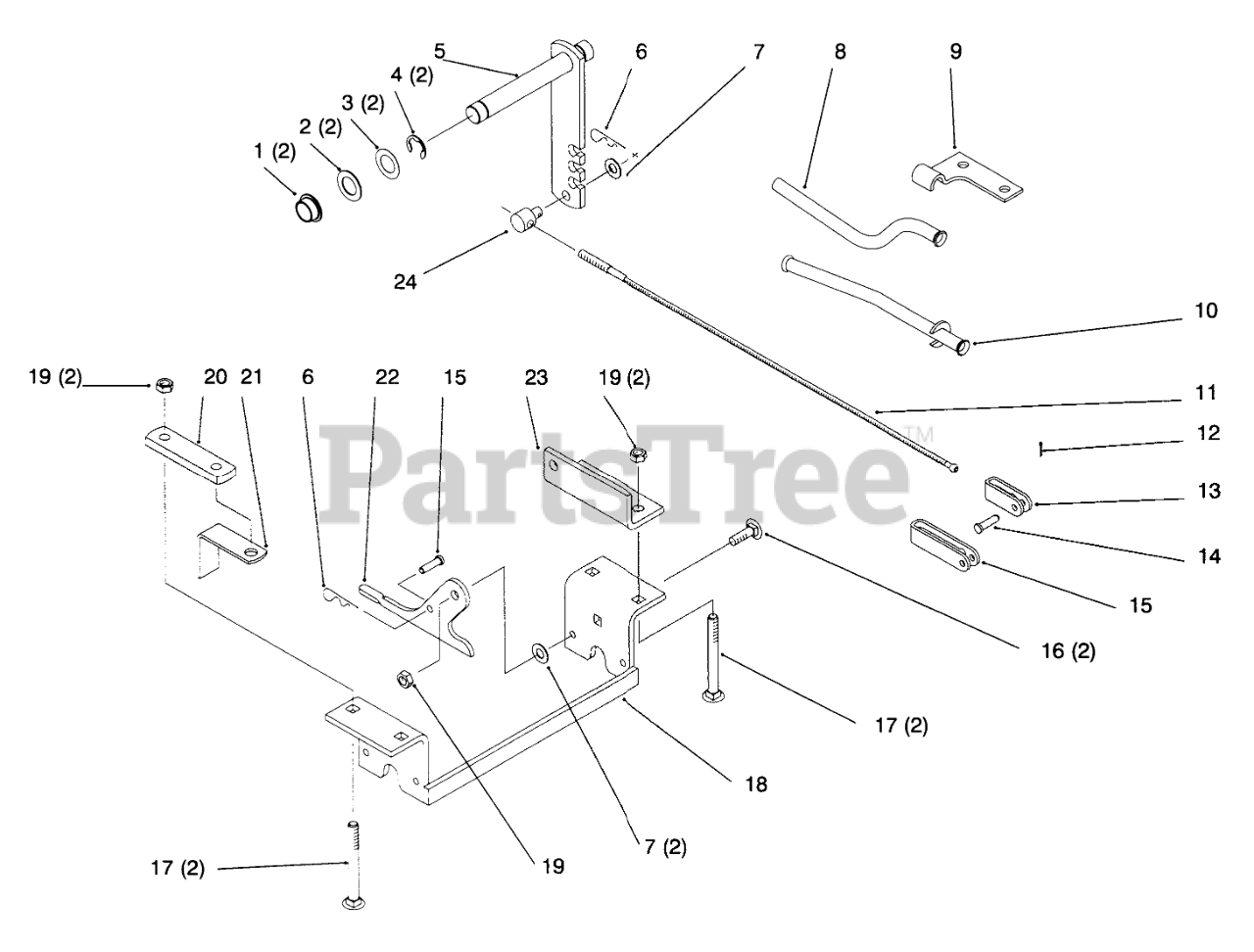

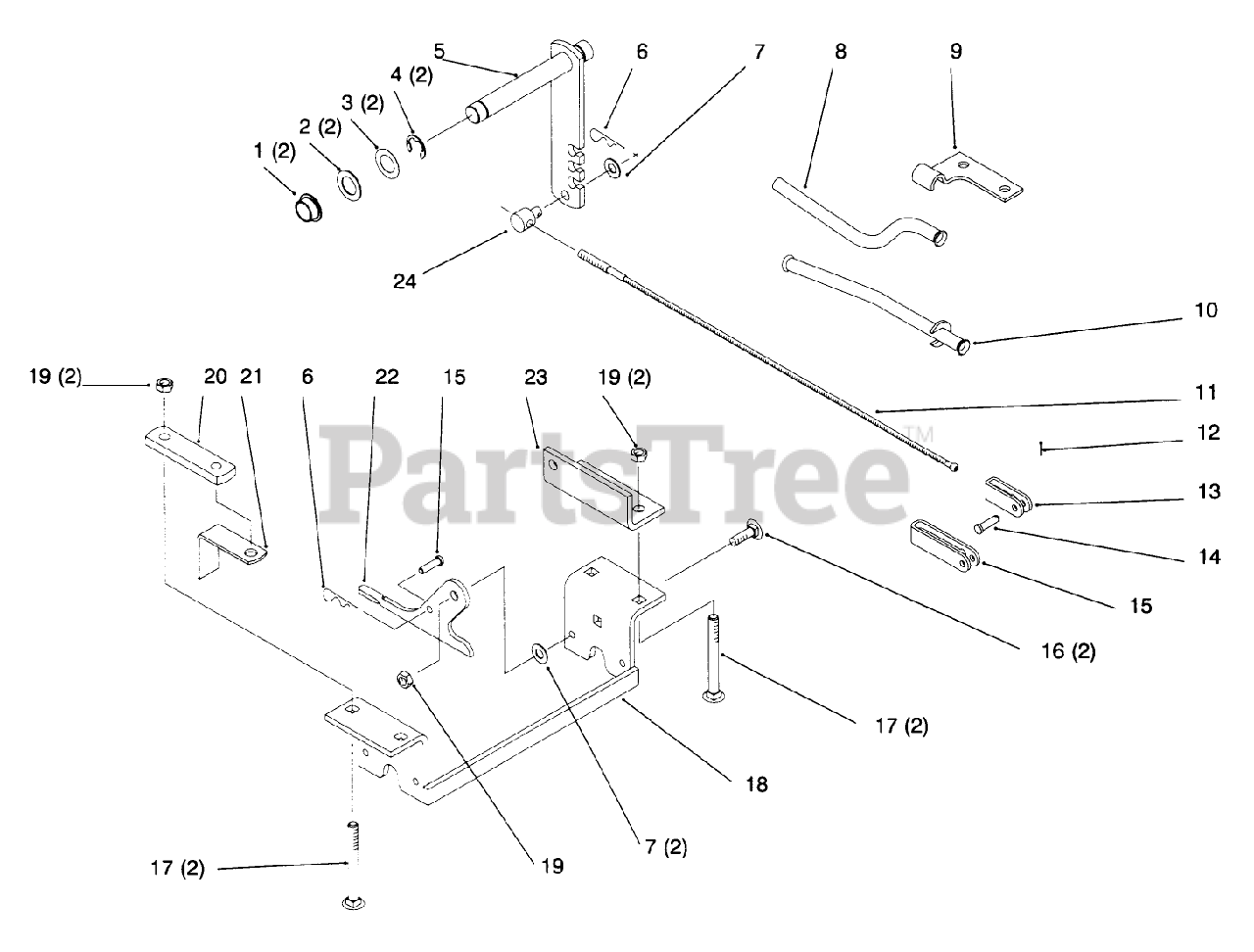

REAR AXLE MOUNT HITCH Parts Diagram

  • Title

1

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

2

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

4

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

5

Toro 110044

ASSY LEVER R
(Superseded to 110044-01)

$

$

Not available

6

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$57.99

$

Usually ships in 3-6 days

0

9

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$14.99

$

Usually ships in 3-6 days

0

10

Toro 105845

TUBE ASSY COMPLET R
(Superseded to 105845-01)

$130.99

$

Usually ships in 3-6 days

0

11

Toro 108144

CABLE

$88.99

$

Usually ships in 3-6 days

0

12

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

13

Toro 108145

CLEVIS-SHORT

$38.99

$

Usually ships in 3-6 days

0

14

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

15

Toro 108143

CLEVIS-LONG

$53.99

$

Usually ships in 3-6 days

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

18

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

19

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

21

Toro 7713

SPACER-BRACKET

$

$

Not available

22

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

23

Toro 108485

LINK-BRACKET R
(Superseded to 108485-01)

$

$

Not available

24

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0
