79370 - Toro 36" Tiller for 300 Series Tractors (SN: 049000001 - 049999999) (1994) HITCH ASSEMBLY Parts Diagram

36" Tiller for 300 Series Tractors

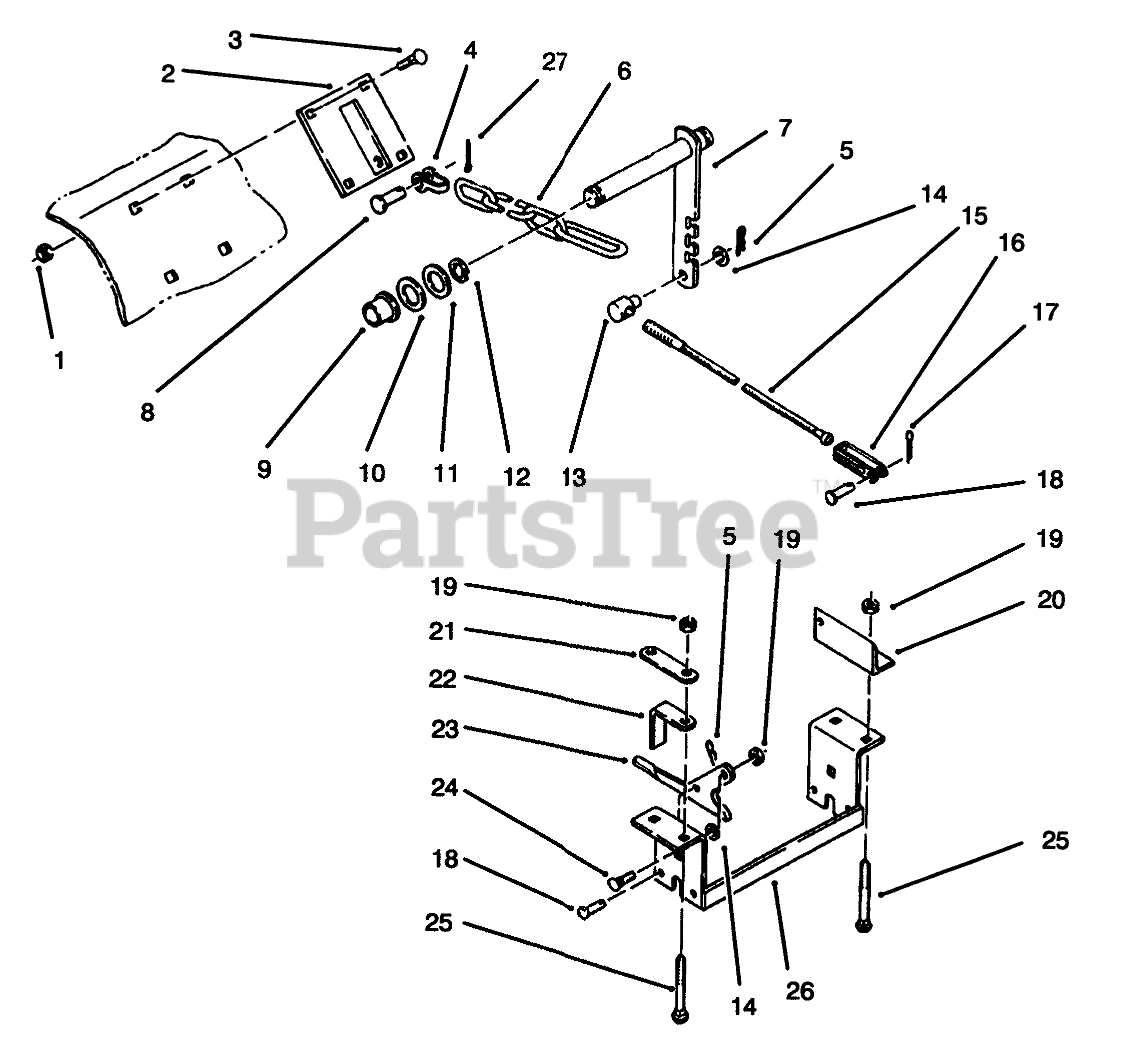

HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 93-1608-01

HITCH ASM
(Superseded to 93-1608-03)

$

$

Not available

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 79-2280

CLEVIS ASM

$20.99

$

Usually ships in 3-6 days

0

5

Toro 933504

Hairpin-Cotter (Incl. Ref. #8 & 27)
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

6

Toro 110046

CHAIN LIFT
(Superseded to 92-7074)

$

$

Not available

7

Toro 110044

ASSY LEVER R
(Superseded to 110044-01)

$

$

Not available

8

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

9

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

10

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

13

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

15

Toro 108144

CABLE

$103.99

$

Usually ships in 3-6 days

0

16

Toro 108145

CLEVIS-SHORT

$39.99

$

Usually ships in 3-6 days

0

Toro 108143

CLEVIS-LONG

Note: Not illustrated

$54.99

$

Usually ships in 3-6 days

0

17

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

18

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

19

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 108485

LINK-BRACKET R
(Superseded to 108485-01)

$

$

Not available

21

Toro 3697

BRACKET-REAR LINK MOUNTING

$34.99

$

Usually ships in 3-6 days

0

22

Toro 7713

SPACER-BRACKET

$

$

Not available

23

Toro 104657

PLATE-LATCHING

$42.99

$

Usually ships in 3-6 days

0

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

25

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

26

Toro 104659

Bracket
(Superseded to 104659-01)

$199.99

$

Usually ships in 3-6 days

0

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
