79370 - Toro 36" Tiller for 300 Series Tractors (SN: 039000001 - 039999999) (1993) PULLEY ASSEMBLY Parts Diagram

36" Tiller for 300 Series Tractors

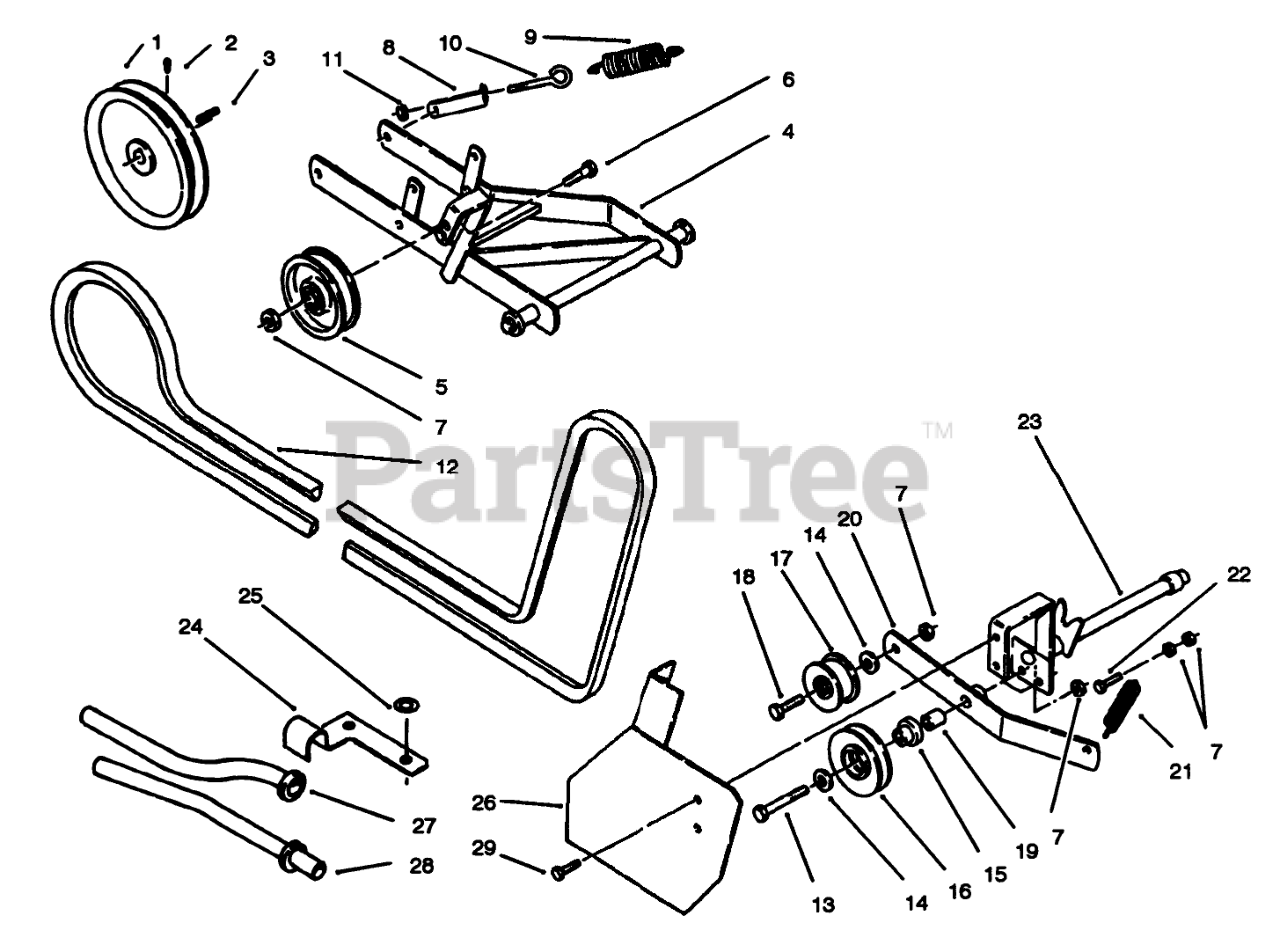

PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 6844

Pulley
(Superseded to 93-0345)

$186.99

$

Usually ships in 3-6 days

0

2

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

3

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

4

Toro 105543

Hitch
(Superseded to 93-1607-01)

$462.99

$

Usually ships in 3-6 days

0

5

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

6

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

7

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

8

Toro 104448

Bracket-Spring
(Superseded to 93-1606-03)

$49.99

$

Usually ships in 3-6 days

0

9

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

10

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

12

Toro 110265

V-BELT

$109.99

$

Usually ships in 3-6 days

0

13

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

14

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

15

Toro 83-2950

SPACER

$

$

Not available

16

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

17

Toro MW8821

IDLER PULLEY

$21.99

$

Usually ships in 3-6 days

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 102025

SPACER

$

$

Not available

20

Toro 92-4082

ASSY IDLER ARM R
(Superseded to 92-4082-01)

$

$

Not available

21

Toro 6135

SPRING-BRAKE

$12.99

$

In Stock, only 1 left!

0

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 110008

ASSY SUPPORT R
(Superseded to 110008-01)

$

$

Not available

24

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

25

Toro 105533

WASHER

$

$

Not available

26

Toro 110039

ASM: FRONT IDLER R
(Superseded to 110039-01)

$

$

Not available

27

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$59.99

$

Usually ships in 3-6 days

0

28

Toro 105529

Conduit-Mech. Trans.
(Superseded to 105845-01)

$

$

Not available

29

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

Toro 105845

Tube Assembly (Incl. ref. #25 & 28)
(Superseded to 105845-01)

Note: Not Illustrated.

$

$

Not available
