79370 - Toro 36" Tiller for 300 Series Tractors (SN: 039000001 - 039999999) (1993) GEAR CASE ASSEMBLY Parts Diagram

36" Tiller for 300 Series Tractors

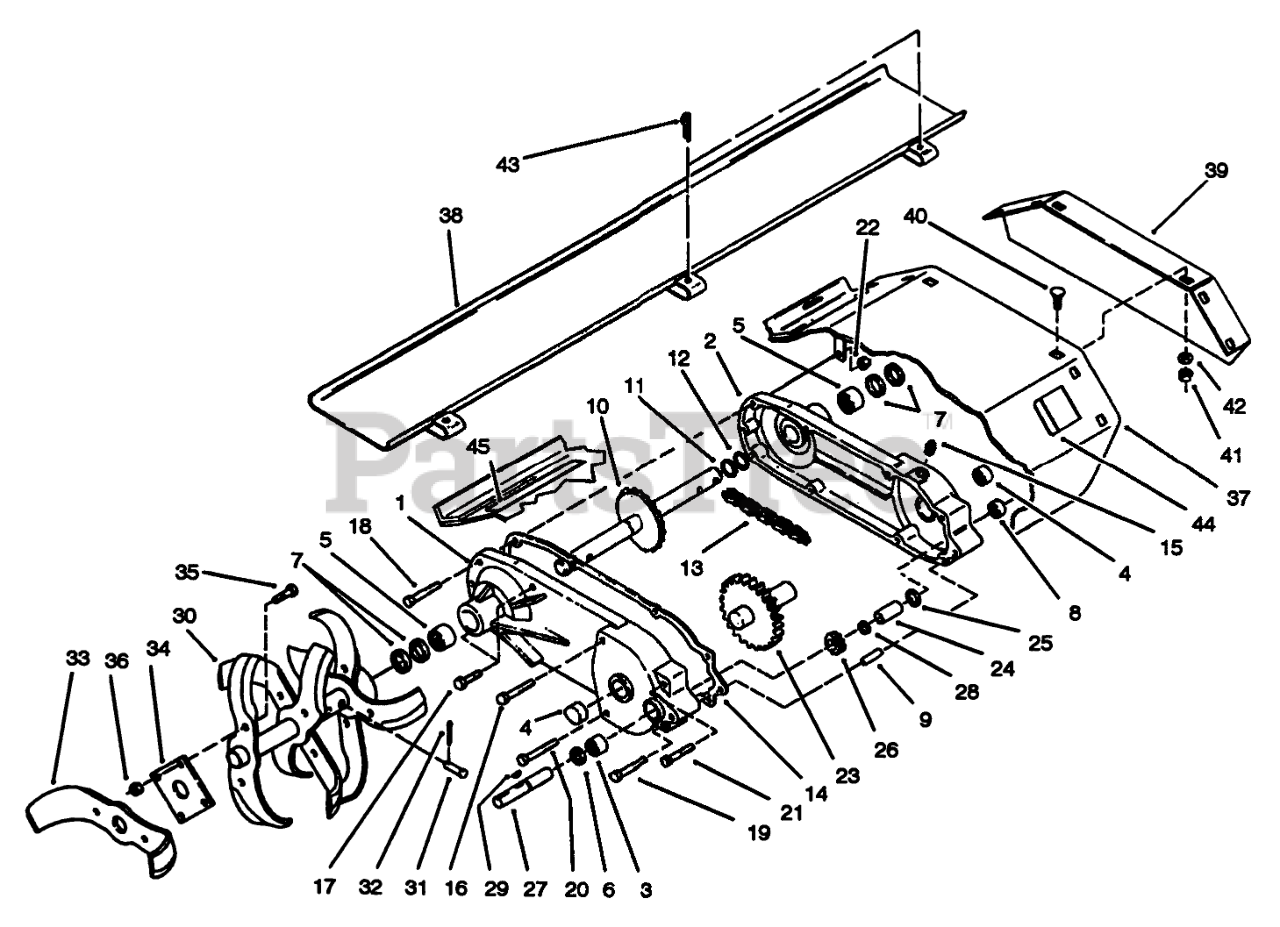

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 6837

Case
(Superseded to 93-1600-03)

$816.99

$

Usually ships in 3-6 days

0

2

Toro 6837

Case
(Superseded to 93-1600-03)

$816.99

$

Usually ships in 3-6 days

0

3

Toro 1540

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

5

Toro 6838

BEARING-NEEDLE

$54.99

$

In Stock, only 2 left!

0

6

Toro 100441

SEAL-OIL

$8.49

$

In Stock, only 1 left!

0

7

Toro 103118

SEAL

$21.99

$

In Stock, Qty 6

0

8

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

9

Toro 32121-41

PIN-ROLL

$7.99

$

Usually ships in 3-6 days

0

10

Toro 106009

TINE SHAFT ASM

$

$

Not available

11

Toro 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

12

Toro 106011

WASHER

$9.49

$

Usually ships in 3-6 days

0

13

Toro 6848

CHAIN

$274.99

$

Usually ships in 3-6 days

0

14

Toro 83-3330

GASKET-TRANSMISSION

$

$

Not available

15

Toro 281-3

PLUG-PIPE, SQH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 323-21

SCREW-HH
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

17

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

18

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 6

0

19

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

20

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

21

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 106007

GEAR AND SHAFT ASM

$

$

Not available

24

Toro 83-3340

TUBE-SPACER

$23.99

$

Usually ships in 3-6 days

0

25

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

26

Toro 3528

GEAR-PINION

$

$

Not available

27

Toro 104387

SHAFT-INPUT

$313.99

$

Usually ships in 3-6 days

0

28

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

29

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

30

Toro 9204

Tine R.H.
(Superseded to 93-1602-03)

$797.99

$

Usually ships in 3-6 days

0

Toro 9205

Tine L.H.
(Superseded to 93-1603-03)

Note: Not Illustrated.

$

$

Not available

31

Toro 9208

PIN-CLEVIS

$

$

Not available

32

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Toro 9206

R.H. Tine
(Superseded to 92-1653-03)

$

$

Not available

Toro 9207

L.H. Tine
(Superseded to 93-1604-03)

Note: Not Illustrated.

$

$

Not available

34

Toro 9203

Plate-Tine Mounting
(Superseded to 93-1601-03)

$

$

Not available

35

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

36

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

37

Toro 92-6514

Shield-Tine (Incl. ref. #44)

$

$

Not available

38

Toro 110289

Rear Shield
(Superseded to 93-1609-01)

$186.99

$

Usually ships in 3-6 days

0

39

Toro 104434

Cover-End
(Superseded to 93-1605-01)

$

$

Not available

40

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

44

Toro 92-1547

DECAL-DANGER

$14.99

$

In Stock, only 2 left!

0

45

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0
