79366 - Toro 44" Two-Stage Snow Thrower for 5xi Tractor (SN: 260000001 - 260999999) (2006) PULLEY BOX ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 5xi Tractor

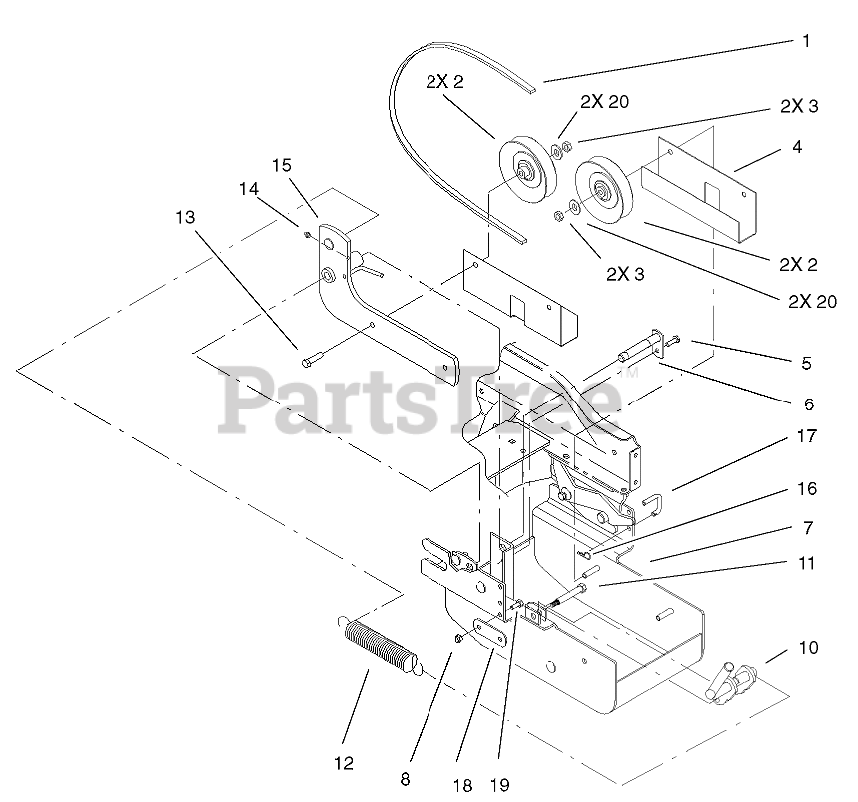

PULLEY BOX ASSEMBLY Parts Diagram

  • Title
1

Toro 100-4164

V-BELT

$95.99

$

Usually ships in 3-6 days

0

2

Toro 94-2447

PULLEY-IDLER

$124.99

$

In Stock, only 1 left!

0

3

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

4

Toro 95-3984-01

COVER-BELT

$

$

Not available

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 94-7686

PIVOT ROD ASM

$

$

Not available

7

Toro 95-3850-01

PULLEY BOX ASM

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

$

$

Not available

11

Toro 99-6453

SHOULDER BOLT

$

$

Not available

12

Toro 99-6456

SPRING-EXT

$36.99

$

Usually ships in 3-6 days

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 95-3851-01

LEVER-IDLER

$

$

Not available

16

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

17

$

$

Not available

18

Toro 99-6454-01

BRACKET-PIVOT

$

$

Not available

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
