79366 - Toro 44" Two-Stage Snow Thrower for 5xi Tractor (SN: 220000001 - 220999999) (2002) JACK SHAFT ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 5xi Tractor

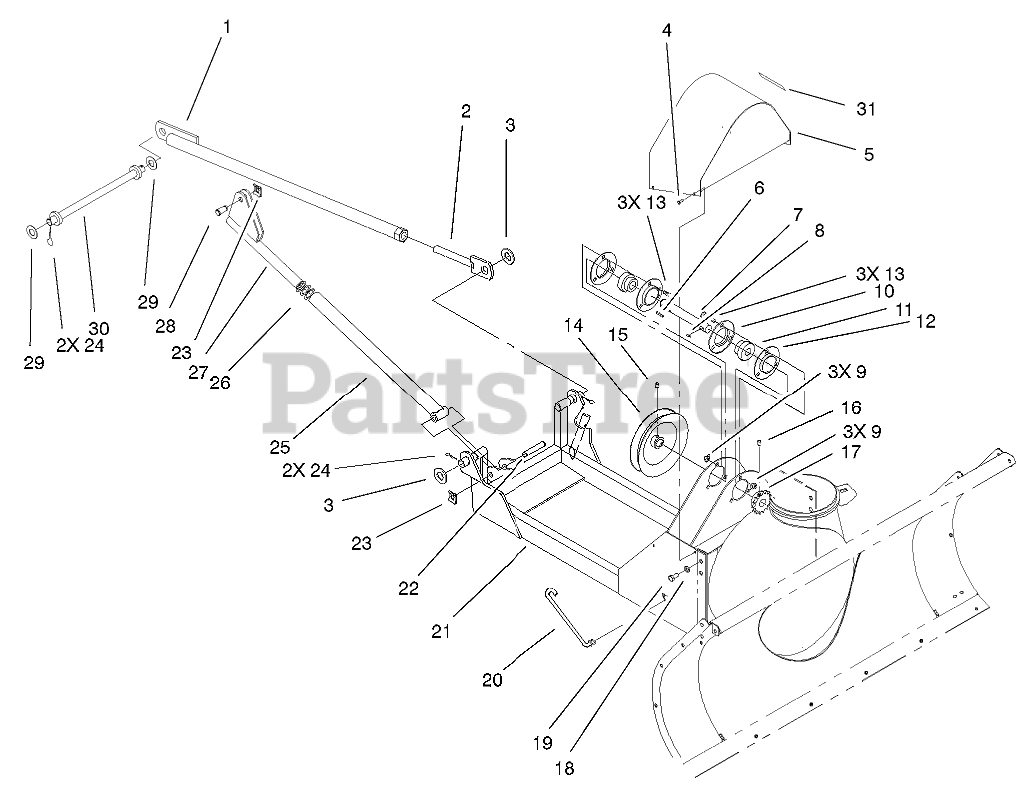

JACK SHAFT ASSEMBLY Parts Diagram

  • Title
1

Toro 95-3999-01

BRACE ASM
(Superseded to 95-3999-03)

$

$

Not available

2

Toro 95-4023-01

ADJUSTER ASM

$

$

Not available

3

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

4

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

5

Toro 95-3859-01

PULLEY COVER ASM

$

$

Not available

6

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

7

Toro 95-3836

SHAFT - JACK

$168.99

$

Usually ships in 3-6 days

0

8

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 119020

FLANGE-RELUBE

$23.99

$

Usually ships in 3-6 days

0

11

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 3 left!

0

12

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 94-7841

PULLEY-DRIVE

$

$

Not available

15

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

16

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

17

Toro 117338-03

SPROCKET-15T

$196.99

$

Usually ships in 3-6 days

0

18

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro 99-6455

LINK-SPRING TENSION

$

$

Not available

21

Toro 95-3848-01

FRAME ASM

$1607.99

$

Usually ships in 3-6 days

0

22

Toro 98-1640

PIN-CLEVIS

$

$

Not available

23

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 2 left!

0

24

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

25

Toro 100-5022-01

ROD-LIFT

$

$

Not available

26

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

27

$337.99

$

Usually ships in 3-6 days

0

28

Toro 98-1639

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

30

Toro 95-3993-01

LINK ASM

$

$

Not available

31

Toro 98-8705

DECAL-IMPORTANT

$

$

Not available
