79365 - Toro 42" Single-Stage Snow Thrower for 5xi Tractors (SN: 089000001 - 089999999) (1998) CHUTE & ROTATION ASSEMBLY Parts Diagram

42" Single-Stage Snow Thrower for 5xi Tractors

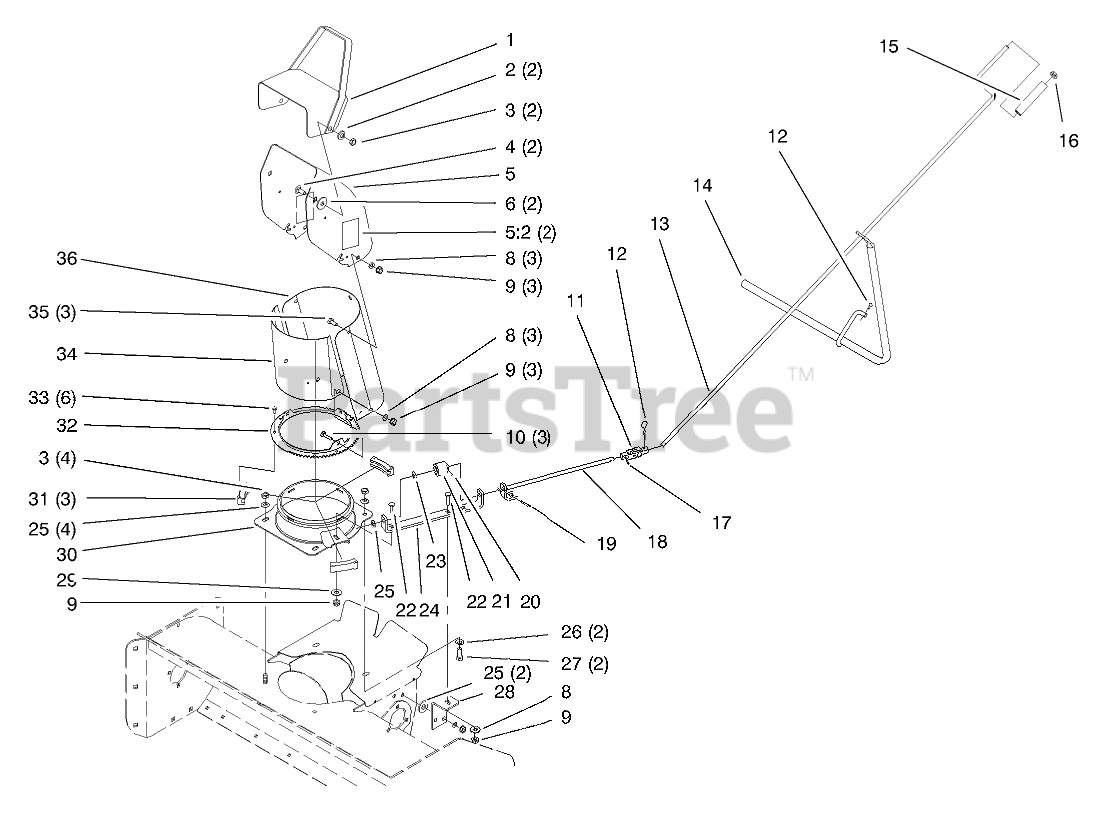

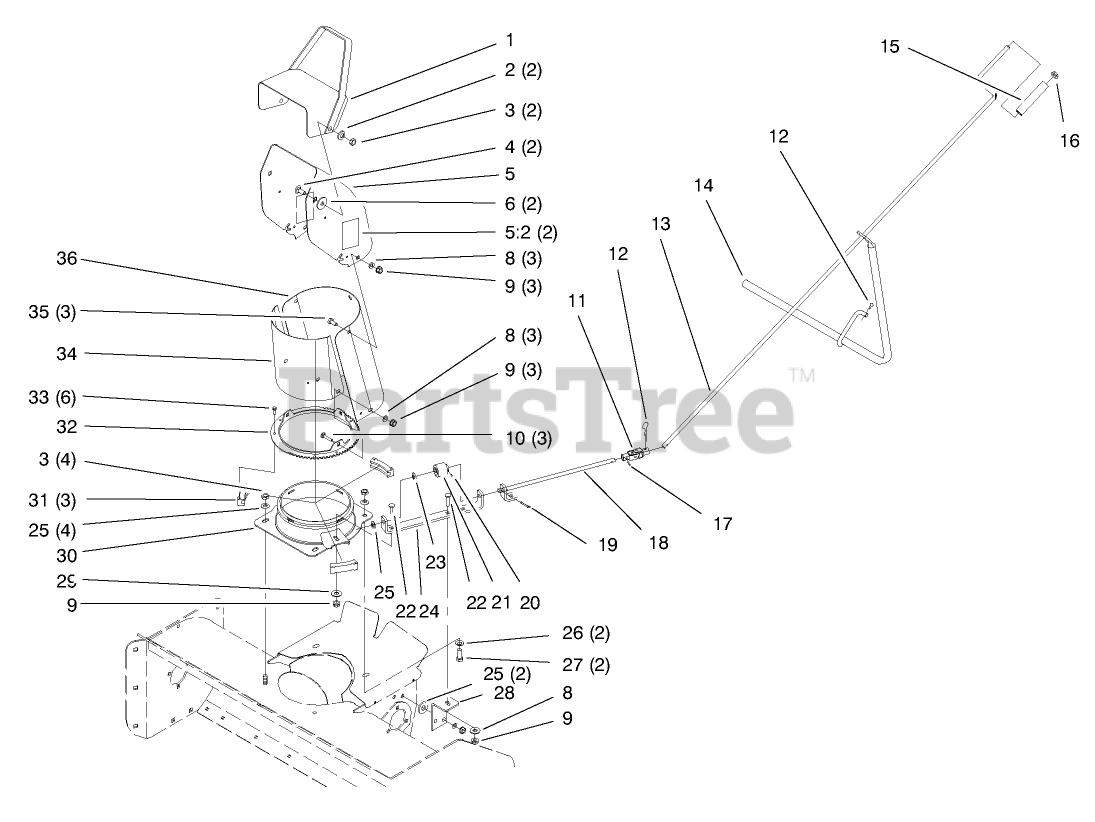

CHUTE & ROTATION ASSEMBLY Parts Diagram

  • Title

1

Toro 11-9349-01

Deflector
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

2

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

5

Toro 94-1832

CHUTE

$

$

Not available

5:2

Toro 94-8078

DECAL-DISCHARGE DANGER

$14.99

$

Usually ships in 3-6 days

0

6

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 94-2686

JOINT-UNIVERSAL

$179.99

$

Usually ships in 3-6 days

0

12

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

13

Toro 98-3090

ROD

$

$

Not available

14

Toro 94-7729

Wa-Support
(Superseded to 94-7729-01)

$

$

Not available

15

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

16

Toro 93-3236

NUT - PUSH

$

$

Not available

17

Toro 32121-47

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

18

Toro 92-7046

ROD

$71.99

$

Usually ships in 3-6 days

0

19

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

20

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

21

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

22

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

23

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

24

Toro 98-3089

Bracket-Gear
(Superseded to 98-3089-01)

$

$

Not available

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 98-3092

Crank Support
(Superseded to 98-3092-01)

$

$

Not available

29

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

30

Toro 95-4033

Adapter-Wa
(Superseded to 95-4033-01)

$

$

Not available

31

Toro 25-5450

RETAINER-CHUTE

$36.99

$

In Stock, only 2 left!

0

32

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

33

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

34

Toro 94-2997

Shield-Deflector
(Superseded to 94-2997-01)

$

$

Not available

35

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

36

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$167.99

$

Usually ships in 3-6 days

0
