79362 - Toro 42" Snow Thrower for 300 Series Tractors (SN: 220000001 - 220999999) (2002) CHUTE AND ROTATION ASSEMBLY Parts Diagram

42" Snow Thrower for 300 Series Tractors

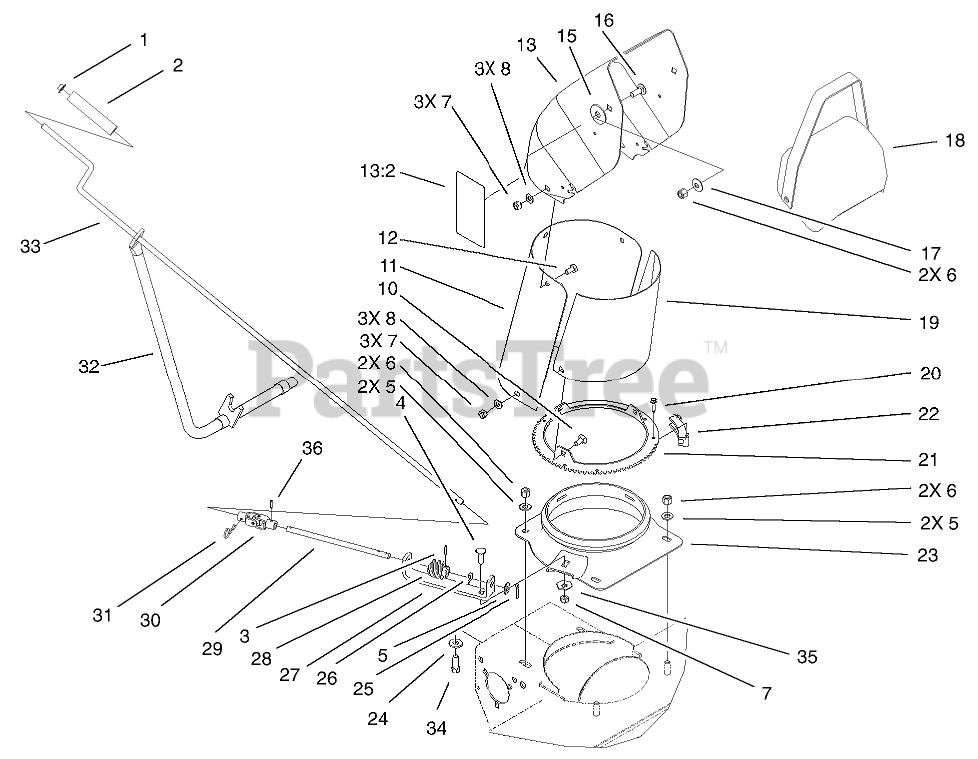

CHUTE AND ROTATION ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, only 2 left!

0

2

Toro 40-8230

GRIP-CONTROL, CHUTE

$17.99

$

Usually ships in 3-6 days

0

3

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 1 left!

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$173.99

$

Usually ships in 3-6 days

0

12

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 94-1832

CHUTE

$

$

Not available

13:2

Toro 94-8079

DECAL-DANGER (only on: 38078)

$12.99

$

Usually ships in 3-6 days

0

15

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 8

0

18

Toro 11-7120-01

DEFLECTOR

$120.99

$

Usually ships in 3-6 days

0

19

Toro 94-9787-01

SHIELD-DEFLECTOR

$114.99

$

Usually ships in 3-6 days

0

20

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

21

Toro 78-0160-01

CHUTE SWIVEL RING

$

$

Not available

22

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

23

Toro 78-0330-01

ADAPTER
(Superseded to 78-0330-03)

$

$

Not available

24

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

26

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

27

Toro 79-3770-03

BRACKET-WORM

$

$

Not available

28

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

29

Toro 78-7430

ROD

$

$

Not available

30

Toro 94-2686

JOINT-UNIVERSAL

$

$

Not available

31

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

32

Toro 104-4695-01

Crank Support ASM

$

$

Not available

33

Toro 51-2650

ROD-CHUTE CONTROL

$214.99

$

Usually ships in 3-6 days

0

34

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

36

Toro 32121-47

PIN-SPRING

$

$

Not available
