79362 - Toro 42" Snow Thrower for 300 Series Tractors (SN: 220000001 - 220999999) (2002) AUGER AND DRIVE ASSEMBLY Parts Diagram

42" Snow Thrower for 300 Series Tractors

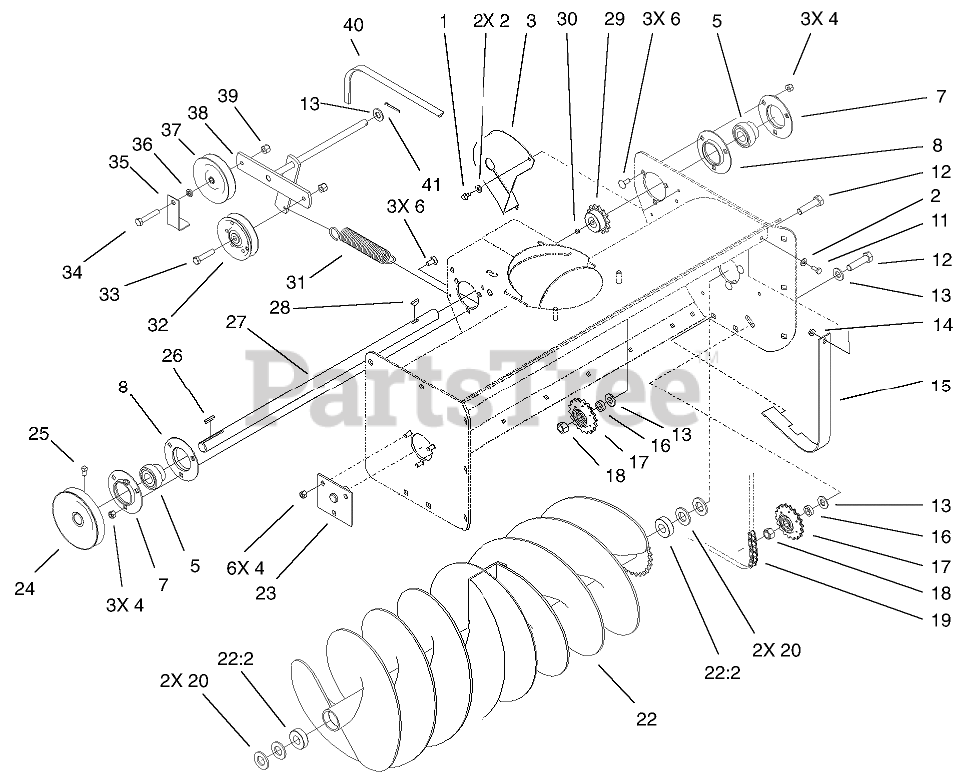

AUGER AND DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 109218

GUARD-CHAIN

$76.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 110569

BEARING AND COLLAR

$110.99

$

In Stock, only 3 left!

0

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 110567

FLANGE-ZERK RELUBE

$25.99

$

In Stock, only 1 left!

0

8

Toro 110568

Flange

$19.99

$

In Stock, only 3 left!

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

15

Toro 109244-01

GUARD-CHAIN

$82.99

$

Usually ships in 3-6 days

0

16

Toro 6417

SPACER

$

$

Not available

17

Toro 93-1614

SPROCKET-IDLER

$63.99

$

In Stock, Qty 8

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 6416

CHAIN

$219.99

$

In Stock, only 1 left!

0

20

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

22

Toro 105-1478

AUGER ASM

$

$

Not available

22:2

Toro 101480

BEARING-BALL

$56.99

$

In Stock, only 3 left!

0

23

Toro 93-1618-01

SUPPORT

$51.99

$

In Stock, only 2 left!

0

24

Toro 94-7842

PULLEY-V

$

$

Not available

25

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

26

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

27

Toro 113320-01

SHAFT-DRIVE

$319.99

$

Usually ships in 3-6 days

0

28

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

29

Toro 78-0850-01

SPROCKET-DRIVE,14 TOOTH

$170.99

$

Usually ships in 3-6 days

0

30

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 78-7480

SPRING-EXTENSION

$34.99

$

Usually ships in 3-6 days

0

32

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

Usually ships in 3-6 days

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 7450-01

BRACKET-RETAINER,BELT

$14.99

$

Usually ships in 3-6 days

0

36

Toro 104662

SPACER

$8.99

$

Usually ships in 3-6 days

0

37

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$25.99

$

In Stock, only 1 left!

0

38

Toro 78-0480-01

ARM-IDLER

$

$

Not available

39

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

40

Toro 9750

V-BELT

$56.99

$

In Stock, only 1 left!

0

41

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
