79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 200000001 - 200999999) (2000) CHUTE ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

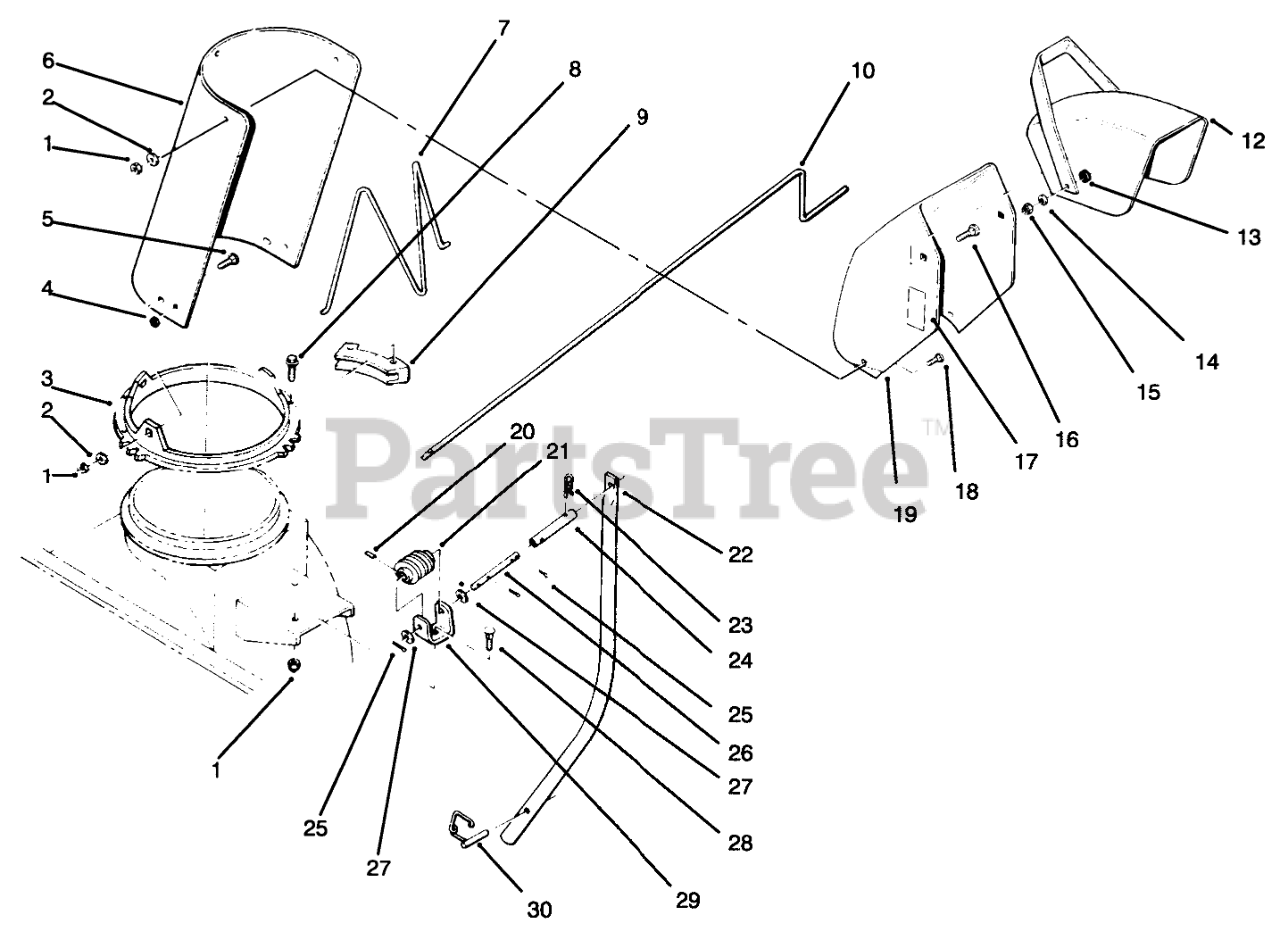

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

4

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

5

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

6

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$173.99

$

Usually ships in 3-6 days

0

7

Toro 12-2040

WIRE-CHUTE

$

$

Not available

8

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

9

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

10

Toro 51-2650

ROD-CHUTE CONTROL

$204.99

$

Usually ships in 3-6 days

0

12

Toro 11-9349-01

Deflector
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

13

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

14

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

17

Toro 94-8079

DECAL-DANGER (only on: 38078)

$11.99

$

Usually ships in 3-6 days

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 94-1833

Chute-Upper Discharge (Incl. Ref. #17)
(Superseded to 94-1833-03)

$433.99

$

Usually ships in 3-6 days

0

20

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

21

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

22

Toro 119030

TUBE-CRANK SUPPOR R

$

$

Not available

23

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

24

Toro 117538

COUPLING

$

$

Not available

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Toro 117529

ROD-LOWER CHUTE CONT

$63.99

$

Usually ships in 3-6 days

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 49-6720

WORM BRKT B
(Superseded to 49-6720-03)

$

$

Not available

30

Toro 111314

LOCKING PIN ASM

$27.99

$

In Stock, only 1 left!

0
