79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 069000001 - 069999999) (1996) AUGER HOUSING ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

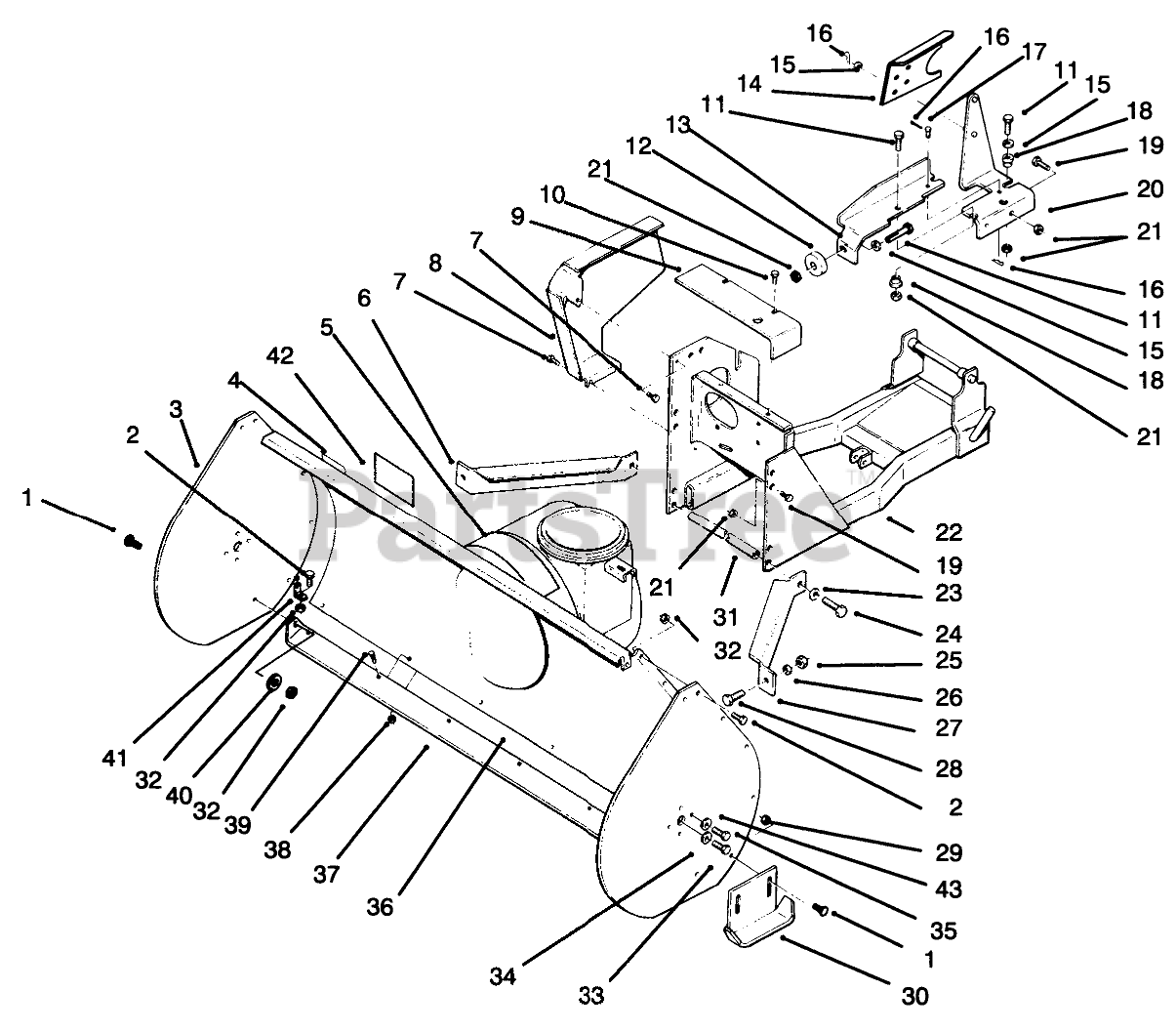

AUGER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

3

Toro 57-3510

Plate-Side
(Superseded to 57-3510-01)

$

$

Not available

4

Toro 63-2380

DECAL-DANGER

$14.99

$

Usually ships in 3-6 days

0

5

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

6

Toro 117224

BRACE-R.H. R
(Superseded to 117224-03)

$

$

Not available

7

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

8

Toro 117553

WLDMT-BELT COVER R

$

$

Not available

9

Toro 117540

GUARD R

$

$

Not available

10

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

11

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

13

Toro 79-2530

BRACKET-BUMPER R

$

$

Not available

14

Toro 117552

GUARD-BELT R
(Superseded to 117552-01)

$28.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

16

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

17

Toro 9329614

Pin-Clevis

$

$

Currently unavailable

18

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

19

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 117550

WLDMT-BRKT GUARD R
(Superseded to 117550-01)

$

$

Not available

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Toro 117434

WLDMT-CARRIER FRA R

$

$

Not available

23

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 117223

BRACE-L.H. R
(Superseded to 117223-03)

$

$

Not available

28

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

30

Toro 78-0800

Skid
(Superseded to 78-0800-01)

$85.99

$

Usually ships in 3-6 days

0

31

Toro 117220

BRACE-CROSS R
(Superseded to 117220-01)

$

$

Not available

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

34

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 92-6334

Housing-Auger (Incl. Ref. #4 & 42)

$4814.99

$

Usually ships in 3-6 days

0

37

Toro 79-6670

Blade-Scraper
(Superseded to 99-2303-01)

$182.99

$

Usually ships in 3-6 days

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

39

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 57-9890

BLADE SUPPORT BRKT R
(Superseded to 99-2304-03)

$33.99

$

Usually ships in 3-6 days

0

42

Toro 92-8652

DECAL-WARNING

$

$

Not available

43

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
