79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 049000001 - 049999999) (1994) GEAR CASE AND BELT ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

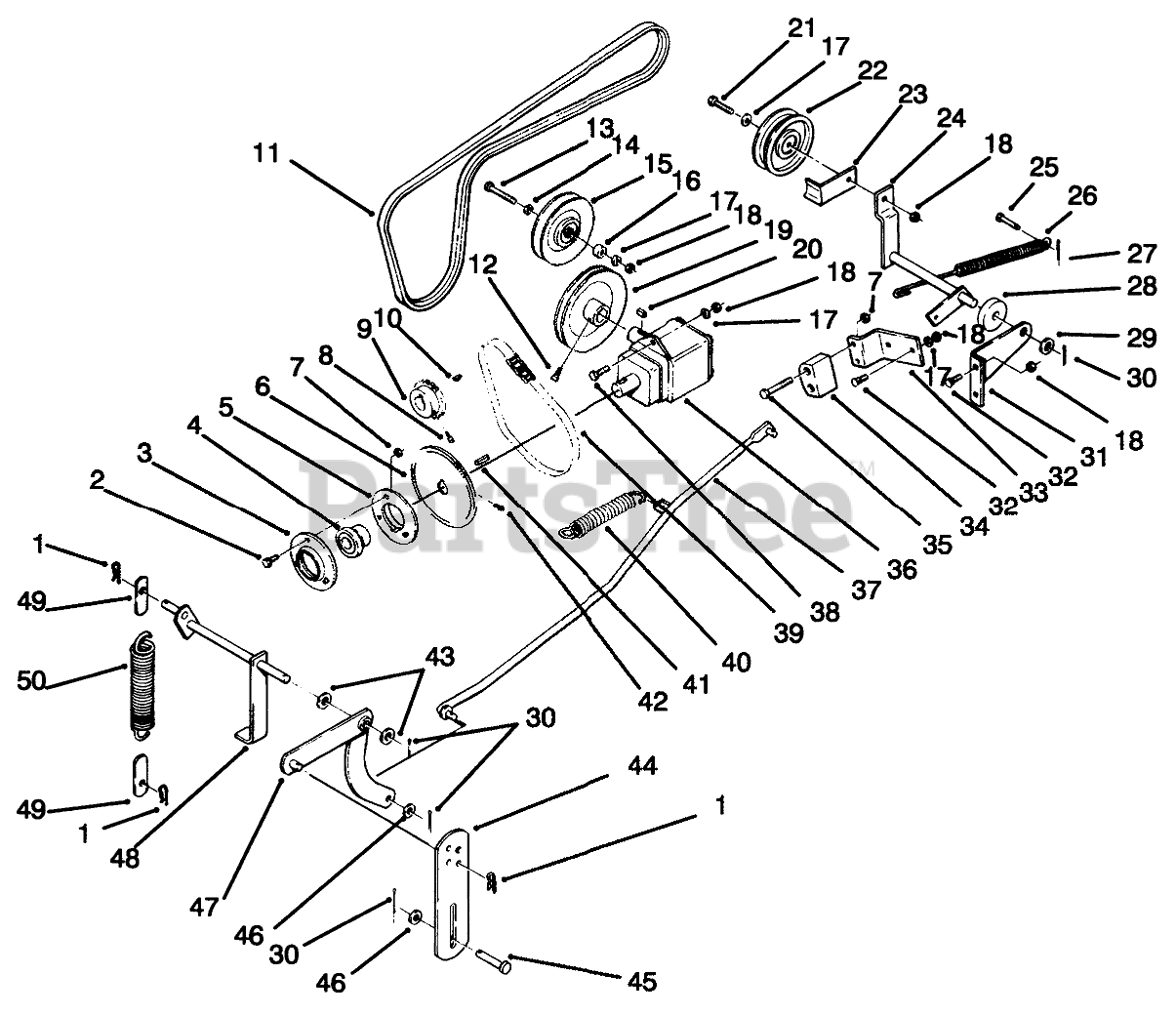

GEAR CASE AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 110568

Flange

$18.99

$

In Stock, only 3 left!

0

4

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 3 left!

0

5

Toro 119020

FLANGE-RELUBE

$24.99

$

Usually ships in 3-6 days

0

6

Toro 116919

SPROCKET-33T

$266.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3241-5

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

9

Toro 117338

SPROCKET-15 T
(Superseded to 117338-03)

$168.99

$

Usually ships in 3-6 days

0

10

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$5.49

$

In Stock, only 1 left!

0

11

Toro 116332

V-BELT 64 .5EL

$51.99

$

Usually ships in 3-6 days

0

12

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

13

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

15

Toro 115118

"V" Pulley
(Superseded to 92-7099)

$69.99

$

In Stock, only 1 left!

0

16

Toro 106887

SPACER

$9.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 92-5769

PULLEY - GEAR BOX

$94.99

$

Usually ships in 3-6 days

0

20

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 116859

PULLEY-FLAT IDLER

$79.99

$

In Stock, only 1 left!

0

23

Toro 7450

Spacer
(Superseded to 7450-01)

$13.99

$

Usually ships in 3-6 days

0

24

Toro 117546

WLDMT-IDLER ARM R

$

$

Not available

25

Toro 283-10

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

26

Toro 117545

SPRING

$

$

Not available

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

28

Toro 117770

RUBBER WASHER

$

$

Not available

29

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

30

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

31

Toro 117544

BRACKET-PIVOT R

$

$

Not available

32

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Toro 117517

BRACKET-TIGHTENER R

$

$

Not available

34

Toro 108959

Chain Tightener
(Superseded to 95-7699)

$115.99

$

In Stock, only 3 left!

0

35

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 7

0

36

Toro 116938

GEAR-BOX L.H.

$

$

Not available

37

Toro 117556

WLDMT-LIFT ROD R

$

$

Not available

38

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

39

Toro 117447

CHAIN

$

$

Not available

40

Toro 110614

SPRING

$

$

Not available

41

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

42

Toro 3242-6

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

43

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

44

Toro 117219

LINK-LIFT R

$

$

Not available

45

Toro 933001

CLEVIS PIN

$

$

Not available

46

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 117543

WLDMT-SNOWTHWR LI R

$

$

Not available

48

Toro 116906

WLDMT-SPRING SUPP R
(Superseded to 116906-01)

$

$

Not available

49

Toro 117539

RETAINER-SPRING R
(Superseded to 117539-01)

$19.99

$

Usually ships in 3-6 days

0

50

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0
