79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 039000001 - 039999999) (1993) AUGER ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

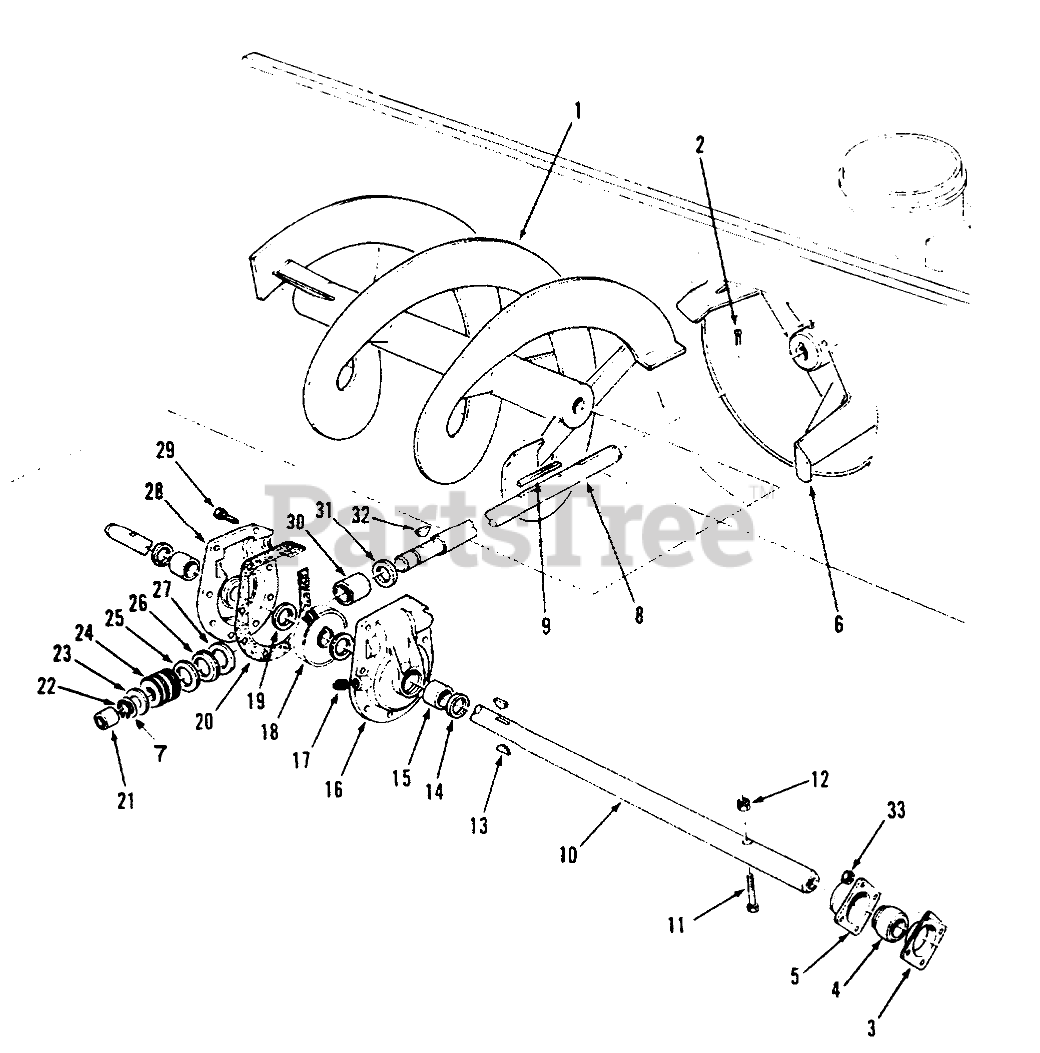

AUGER ASSEMBLY Parts Diagram

  • Title
1

Toro 57-3300

Auger RH
(Superseded to 57-3300-03)

$872.99

$

Usually ships in 3-6 days

0

Toro 57-3370

Auger LH
(Superseded to 57-3370-03)

Note: Not illustrated

$

$

Not available

2

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

3

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

Usually ships in 3-6 days

0

4

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 5

0

5

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

6

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$690.99

$

Usually ships in 3-6 days

0

7

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

8

Toro 19-8540

SHAFT-IMPELLER

$356.99

$

Usually ships in 3-6 days

0

9

$12.99

$

Usually ships in 3-6 days

0

10

Toro 57-3500

SHAFT-AUGER

$582.99

$

Usually ships in 3-6 days

0

11

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

14

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 10

0

15

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

16

Toro 12-2459

Assy.-Gear Case & Bushing (Incl. Ref. #14 & 15)

$

$

Currently unavailable

17

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

18

Toro 5-7180

GEAR-WORM, 27T

$183.99

$

In Stock, only 1 left!

0

19

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

20

Toro 51-0460

GASKET-CASE, GEAR

$9.49

$

In Stock, Qty 5

0

21

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

22

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

23

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

24

$131.99

$

In Stock, only 3 left!

0

25

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 2 left!

0

26

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

27

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

28

Toro 14-2449

Assy.-Gear Case & Bushing (Incl. Ref. #14 & 15)

$155.99

$

In Stock, only 2 left!

0

29

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

30

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

31

Toro 237-87

RING-QUAD

$7.49

$

In Stock, only 1 left!

0

32

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

33

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

Toro 822427

Assembly-Gear Box (Incl. Ref. #8-33)

Note: Not illustrated

$

$

Not available
