79360 - Toro 42" Snow Thrower for 300 Series Tractors (SN: 069000001 - 069999999) (1996) AUGER HOUSING Parts Diagram

42" Snow Thrower for 300 Series Tractors

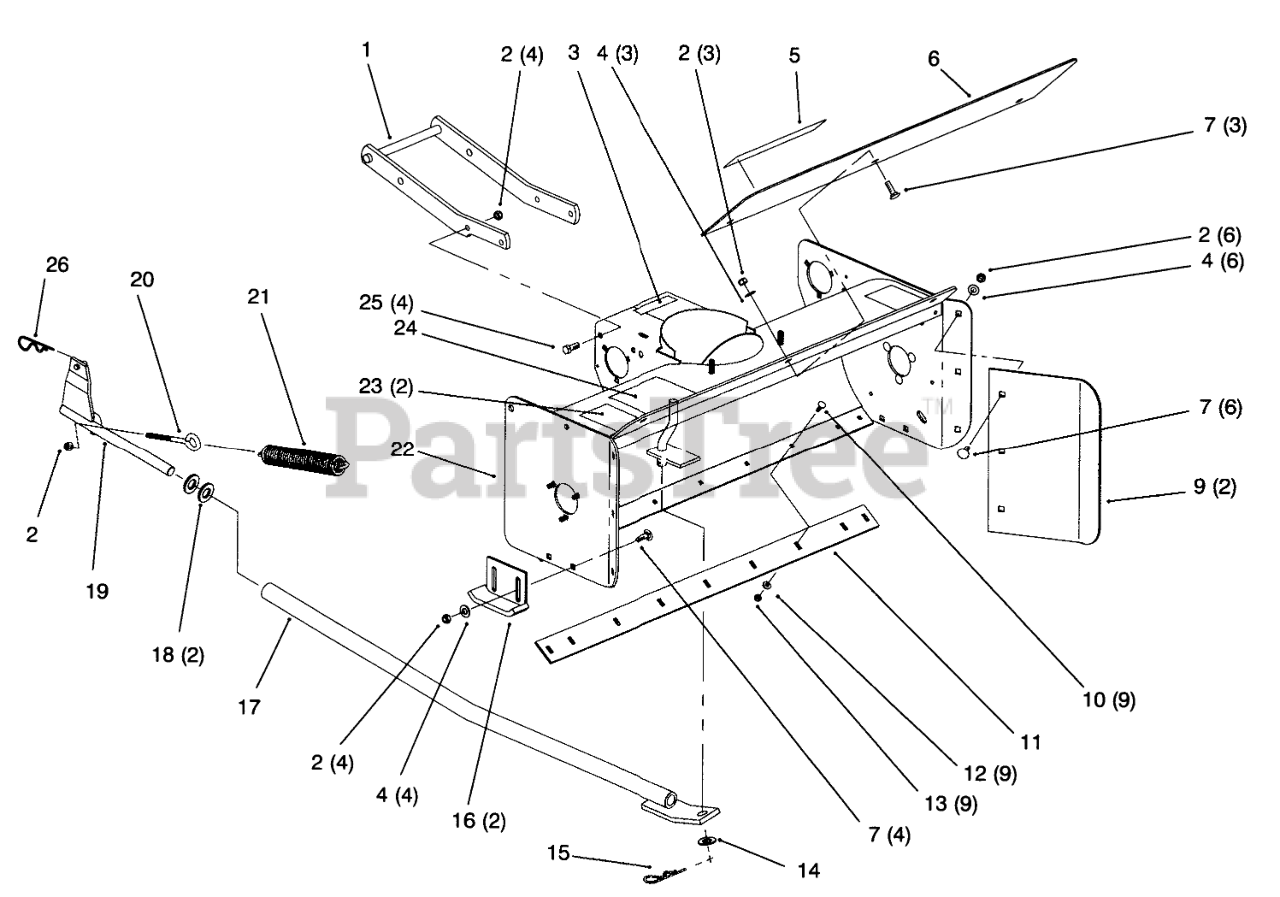

AUGER HOUSING Parts Diagram

  • Title

1

Toro 104604-01

FRAME-MOUNTING

$

$

Not available

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$12.99

$

Usually ships in 3-6 days

0

6

Toro 93-1616-01

PLATE-EXTENSION

$

$

Not available

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

9

Toro 93-1617-01

PLATE-EXTENSION, RH

$77.99

$

Usually ships in 3-6 days

0

10

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

11

Toro 79-6170-01

SCRAPER-REVERSIBLE
(Superseded to 79-6170-03)

$85.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

15

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

16

Toro 93-1620-01

SKID

$44.99

$

In Stock, only 3 left!

0

17

Toro 114600

Lift Tube
(Superseded to 8-1650)

$

$

Not available

18

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

19

Toro 101461

LIFT ROD ASM
(Superseded to 101461-03)

$

$

Not available

20

Toro 100653

EYEBOLT

$22.99

$

Usually ships in 3-6 days

0

21

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

22

Toro 92-7299-01

Auger Housing ASM (Incl. Ref. # 23,24)

$

$

Currently unavailable

23

Toro 63-2380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

24

Toro 92-8652

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0
