79360 - Toro 42" Snow Thrower for 300 Series Tractors (SN: 039000001 - 039999999) (1993) CONTROL & CHUTE ASSEMBLY Parts Diagram

42" Snow Thrower for 300 Series Tractors

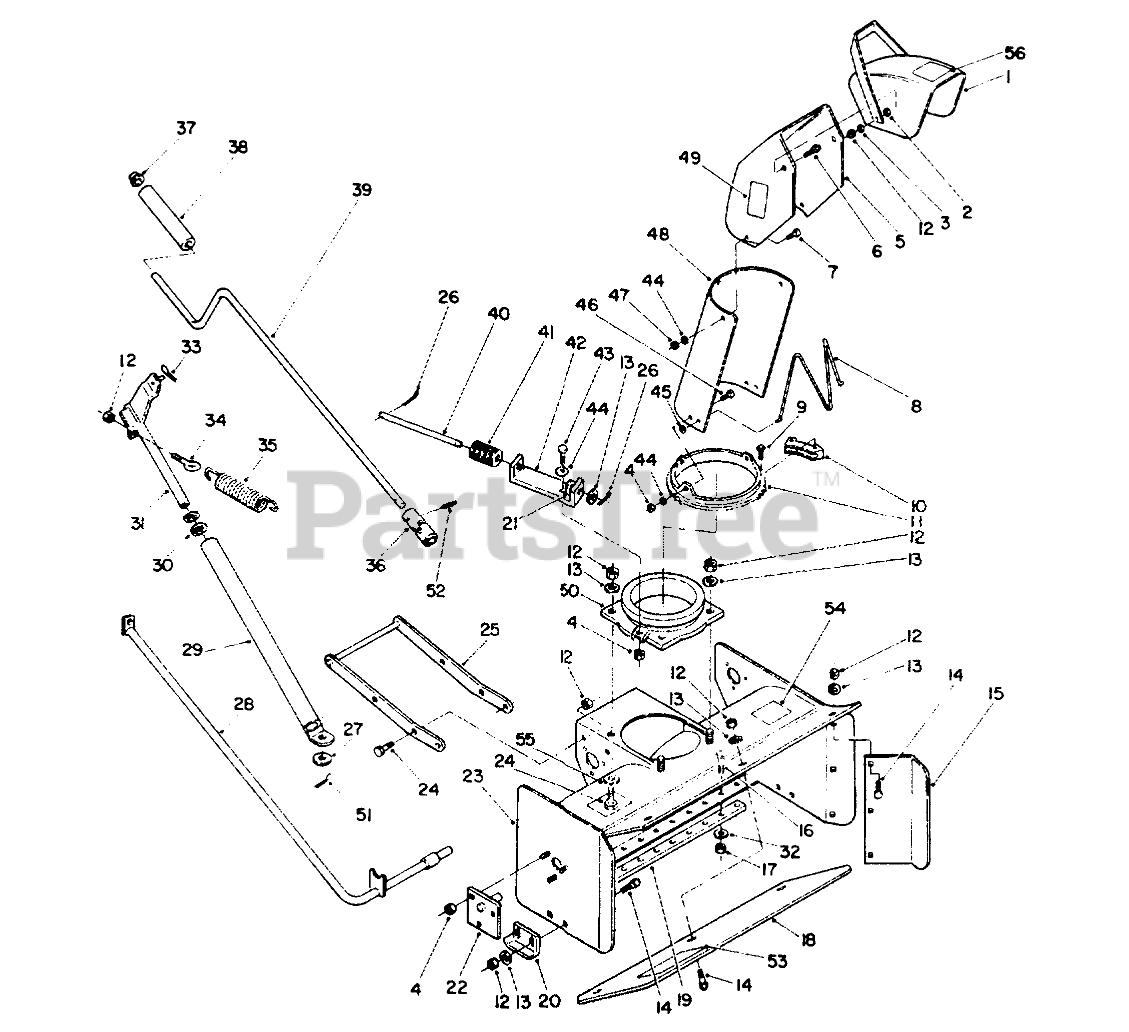

CONTROL & CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 11-9349

Defector (Incl. ref. #56)
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

2

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

3

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 56-2600

Chute-Upper
(Superseded to 92-6335-01)

$222.99

$

Usually ships in 3-6 days

0

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

8

Toro 12-2040

WIRE-CHUTE

$

$

Not available

9

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

10

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

11

Toro 78-0160

Ring-Swivel
(Superseded to 78-0160-01)

$

$

Not available

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 103552

Plate
(Superseded to 93-1617-01)

$90.99

$

Usually ships in 3-6 days

0

16

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 7495

Plate
(Superseded to 93-1616-01)

$

$

Not available

19

Toro 79-6170

Scraper
(Superseded to 79-6170-03)

$99.99

$

Usually ships in 3-6 days

0

20

Toro 111491

Skid
(Superseded to 93-1620-01)

$51.99

$

In Stock, only 3 left!

0

21

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

22

Toro 109201

Plate
(Superseded to 93-1618-01)

$51.99

$

In Stock, only 2 left!

0

23

Toro 78-0240

Wrapper
(Superseded to 92-7299)

$

$

Not available

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 104604

Frame-Mounting
(Superseded to 104604-01)

$

$

Not available

26

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

27

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

28

Toro 78-0200

Crank Support
(Superseded to 78-0200-01)

$

$

Not available

29

Toro 114600

Lift Tube
(Superseded to 8-1650)

$

$

Not available

30

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

31

Toro 101461

LIFT ROD ASM
(Superseded to 101461-03)

$

$

Not available

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

34

Toro 100653

EYEBOLT

$25.99

$

Usually ships in 3-6 days

0

35

Toro 4629

SPRING

$82.99

$

In Stock, only 2 left!

0

36

Toro 78-0230

Universal
(Superseded to 94-2686)

$

$

Not available

37

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

38

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

39

Toro 51-2650

ROD-CHUTE CONTROL

$204.99

$

Usually ships in 3-6 days

0

40

$

$

Not available

41

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

42

Toro 79-3770

Bracket-Worm
(Superseded to 79-3770-01)

$50.99

$

Usually ships in 3-6 days

0

43

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

46

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

47

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

48

Toro 26-1110

Chute-Extender
(Superseded to 26-1110-01)

$173.99

$

Usually ships in 3-6 days

0

49

Toro 63-3740

Decal-Danger
(Superseded to 94-8079)

$11.99

$

Usually ships in 3-6 days

0

50

Toro 78-0330

Adapter
(Superseded to 78-0330-03)

$

$

Not available

51

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

52

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

53

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0

54

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

55

Toro 104662

SPACER

$8.99

$

In Stock, only 2 left!

0

56

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0
