79356 - Toro 50" Mid-Mount Blade for 5xi Tractors (SN: 099000001 - 099999999) (1999) LEVER ASSEMBLY Parts Diagram

50" Mid-Mount Blade for 5xi Tractors

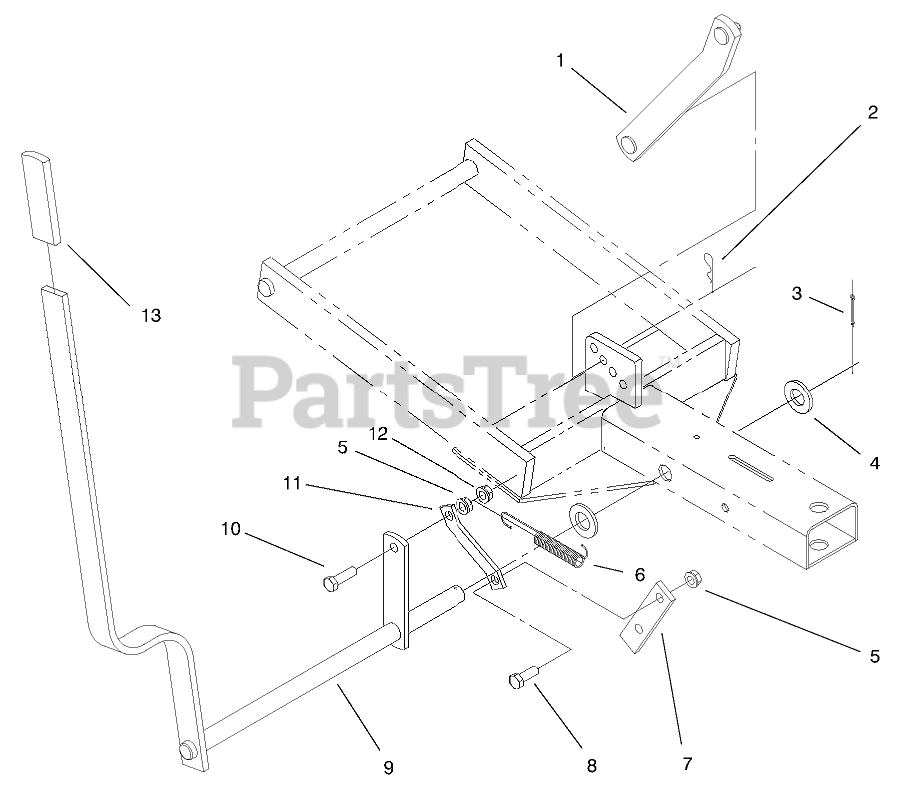

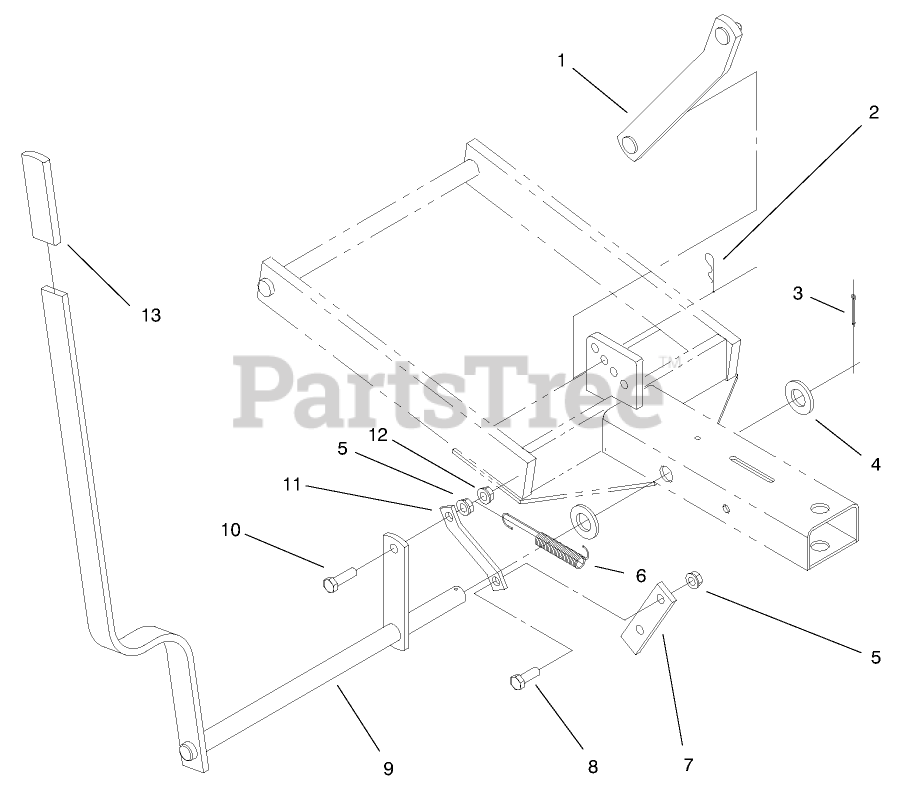

LEVER ASSEMBLY Parts Diagram

  • Title
1

Toro 94-7882

WA - LIFT LINK
(Superseded to 94-7882-03)

$

$

Not available

2

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

3

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

4

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 6

0

6

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

7

$

$

Not available

8

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 94-7920

Latch Lever
(Superseded to 94-7920-03)

$258.99

$

Usually ships in 3-6 days

0

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 113156-01

LINK - LATCH

$

$

Not available

12

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

13

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0
