79355 - Toro 48" Snow/Dozer Blade for 5xi Tractor (SN: 220000001 - 220999999) (2002) FRAME ASSEMBLY Parts Diagram

48" Snow/Dozer Blade for 5xi Tractor

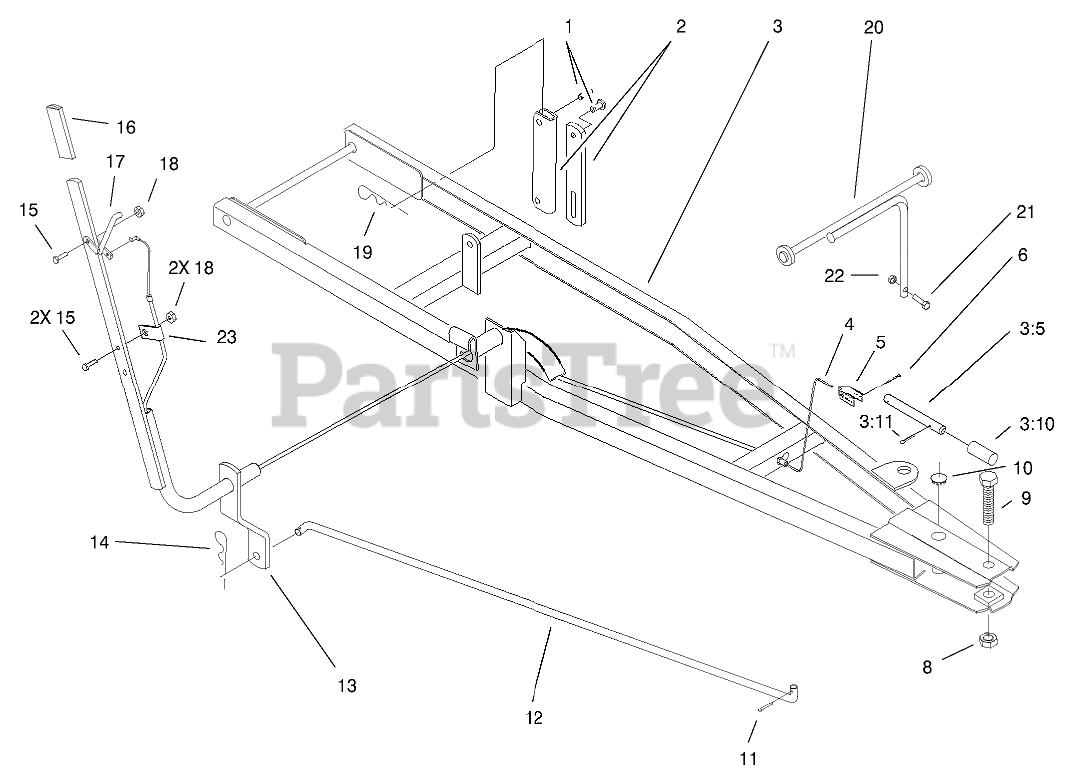

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

1

Toro 98-5055

PIN-WELD

$11.99

$

Usually ships in 3-6 days

0

2

Toro 94-7987-03

LINK - LIFT

$

$

Not available

2

Toro 94-7793-03

LINK - LIFT

$

$

Not available

$

$

Not available

3:5

Toro 88-6520

PIN-INDEX

$105.99

$

Usually ships in 3-6 days

0

3:10

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

3:11

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

4

Toro 104-2483

CABLE-INDEXING

$

$

Not available

5

Toro 94-7782

BRACKET - CABLE END

$

$

Not available

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

8

Toro 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

9

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

10

Toro 4944

PLUG

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 94-7787

ROD - BLADE CONTROL

$

$

Not available

13

Toro 104-5022-01

LEVER-INDEXING

$

$

Not available

14

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

15

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 5359

GRIP

$10.99

$

Usually ships in 3-6 days

0

17

Toro 98-1743

LEVER

$55.99

$

Usually ships in 3-6 days

0

18

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

19

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

20

Toro 99-9699-03

STABILIZER

$

$

Not available

21

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 2412-32

R-CLAMP

$8.99

$

Usually ships in 3-6 days

0
