79351 - Toro 50" Mid-Mount Blade (SN: 099000001 - 099999999) (1999) BLADE ASSEMBLY Parts Diagram

50" Mid-Mount Blade

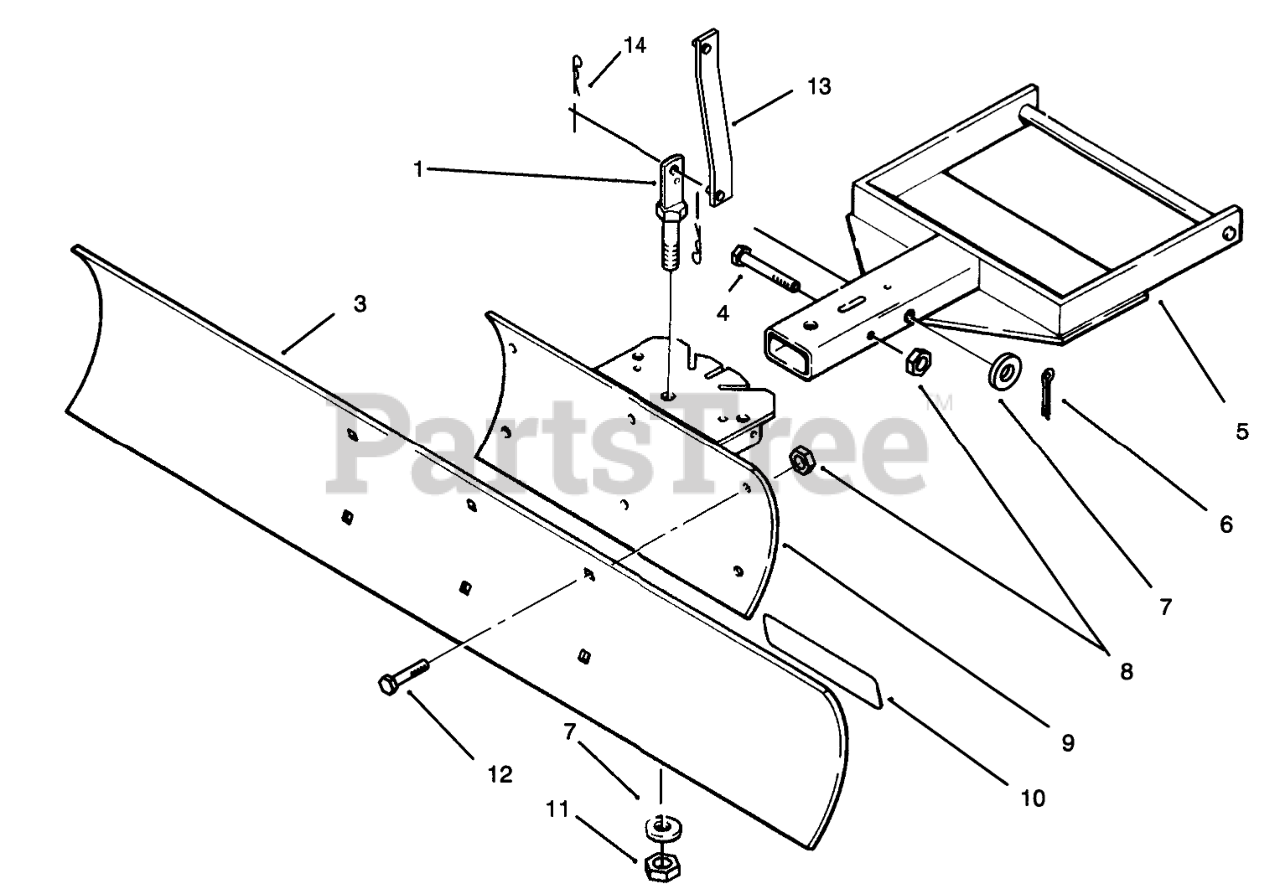

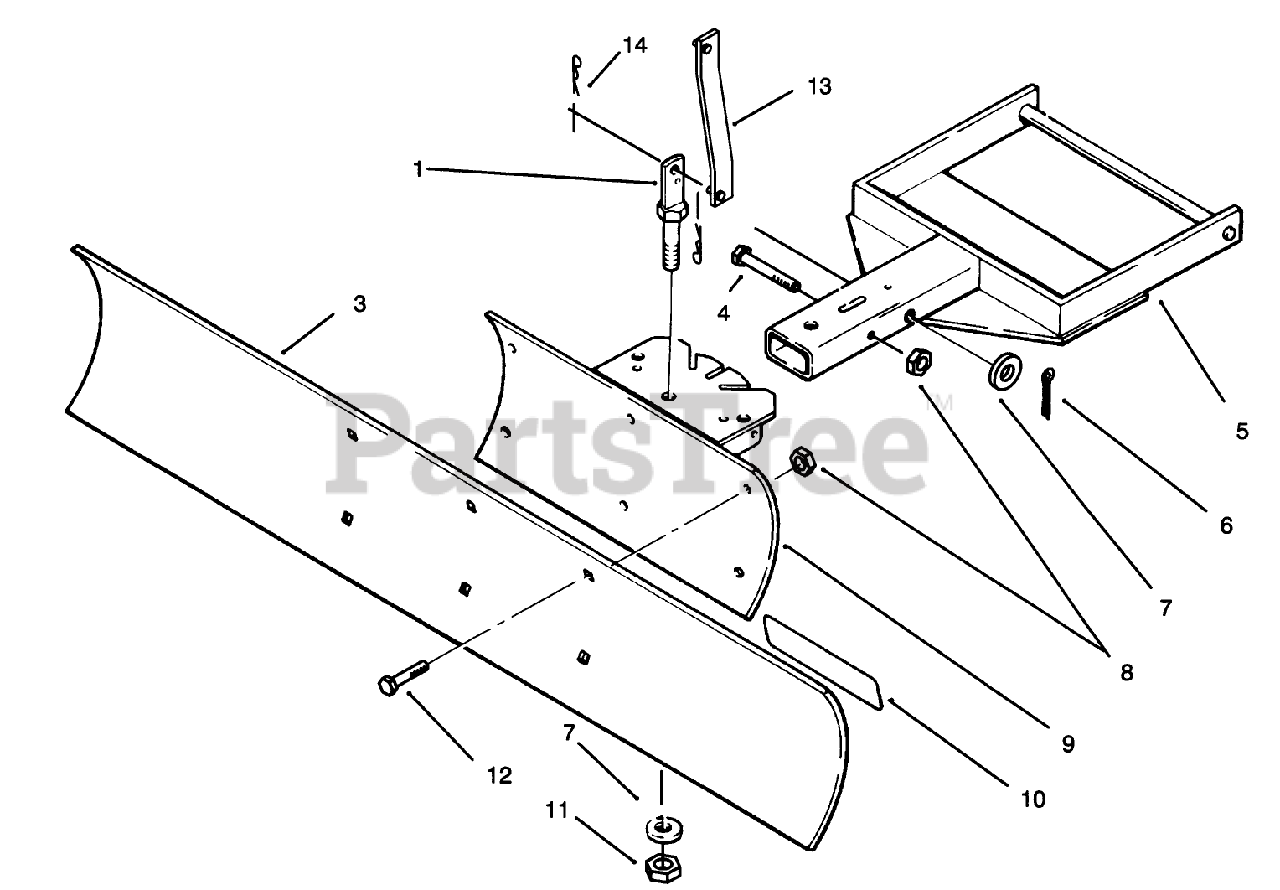

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 113159

Wa-Scrw
(Superseded to 113159-03)

$

$

Not available

3

Toro 103626

Blade
(Superseded to 92-6317)

$

$

Not available

4

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

5

Toro 113154

ASS'Y-FRAME R

$

$

Not available

6

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

7

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 113158

ASS'Y-QUADRANT
(Superseded to 113158-03)

$512.99

$

Usually ships in 3-6 days

0

10

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

11

Toro 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

12

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

13

Toro 92-0983

LIFT BAR WA R
(Superseded to 92-0983-01)

$

$

Not available

14

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0
