79350 - Toro 48" Snow/Dozer Blade (SN: 200000001 - 200999999) (2000) FRAME ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

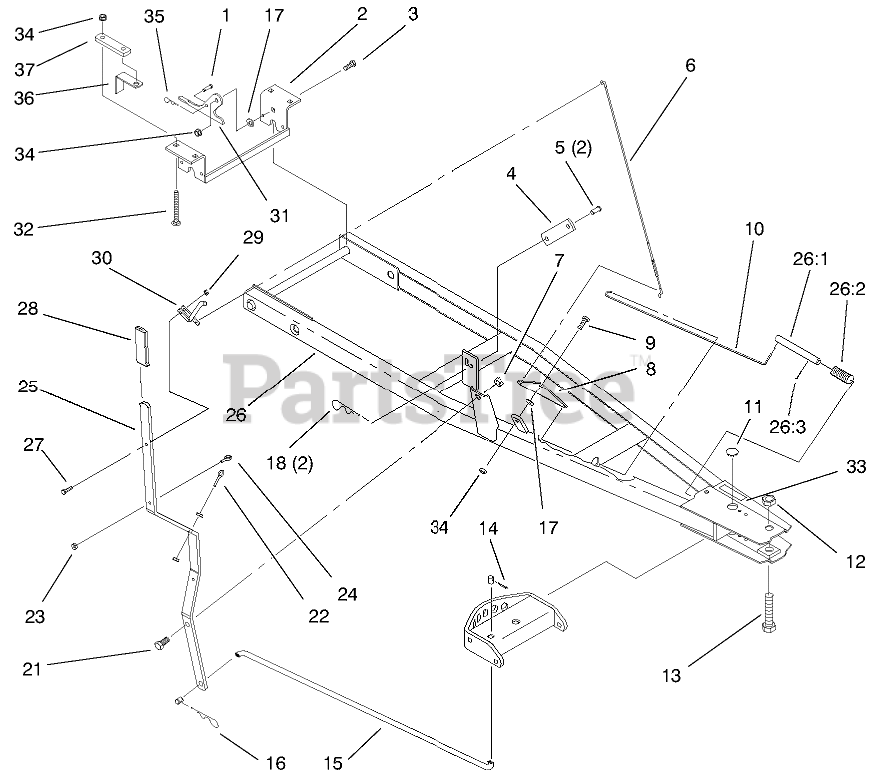

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 9231204

Pin-Clevis

$

$

Not available

2

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

3

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

4

Toro 105052

LINK-LIFT

$32.99

$

In Stock, only 3 left!

0

Toro 7706

LIFT BAR ASSY R
(Superseded to 7706-01)

Note: Not illustrated

$

$

Not available

5

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

6

Toro 98-1745

ASM - CABLE ADJUSTABLE

$94.99

$

Usually ships in 3-6 days

0

7

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

8

Toro 92-7037

PLATE - INDEX

$28.99

$

Usually ships in 3-6 days

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 3771

Head-Cylinder

$23.99

$

In Stock, only 1 left!

0

11

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

12

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

13

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

15

Toro 104338

ROD

$104.99

$

Usually ships in 3-6 days

0

16

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

21

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 94-6687

EYEBOLT

$

$

Not available

23

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

24

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

25

Toro 94-6686

Lever-Index
(Superseded to 94-6686-01)

$77.99

$

Usually ships in 3-6 days

0

26

Toro 108567

ASSY-FRAME R

$

$

Not available

26:1

Toro 88-6520

PIN-INDEX

$100.99

$

Usually ships in 3-6 days

0

26:2

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

26:3

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

27

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

29

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

30

Toro 98-1743

LEVER

$47.99

$

Usually ships in 3-6 days

0

31

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

32

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

34

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

35

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

36

Toro 7713

SPACER-BRACKET

$

$

Not available

37

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0
