79350 - Toro 48" Snow/Dozer Blade (SN: 089000001 - 089999999) (1998) BLADE ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

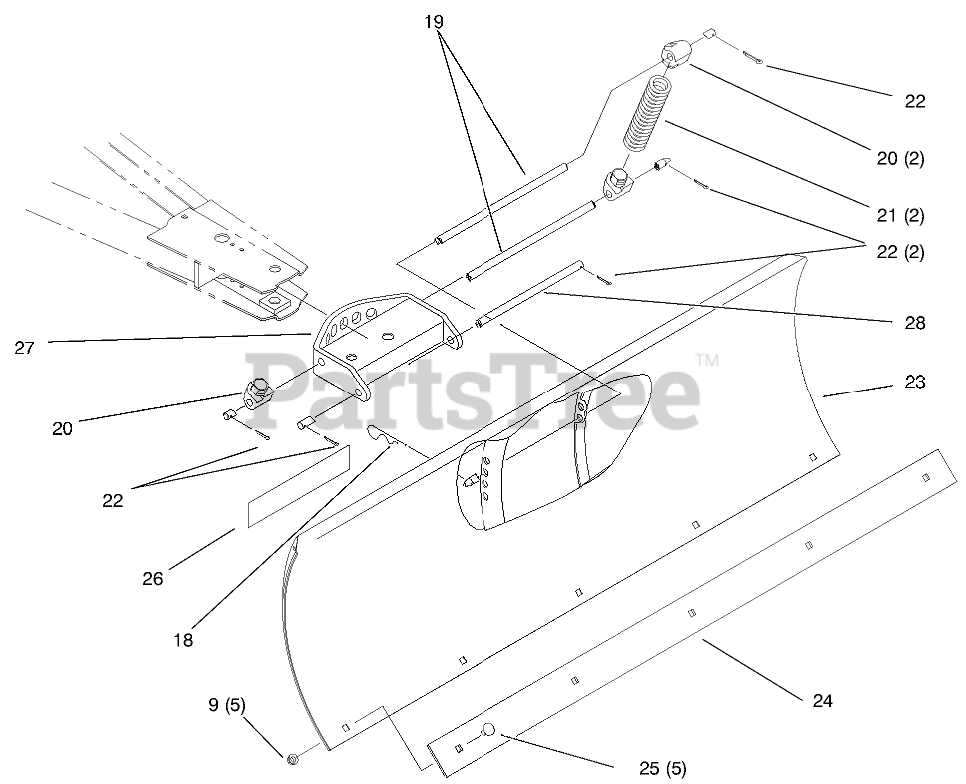

BLADE ASSEMBLY Parts Diagram

  • Title

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

19

Toro 5120

ROD-PIVOT, BLADE

$55.99

$

Usually ships in 3-6 days

0

20

Toro 88-2080

Lug
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

21

Toro 93-1611

Spring-Return
(Superseded to 105-1386-03)

$124.99

$

Usually ships in 3-6 days

0

22

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 78-1330-01

BLADE ASM

$468.99

$

Usually ships in 3-6 days

0

24

Toro 93-1612-01

PLATE - BLADE EDGE
(Superseded to 93-1612-03)

$53.99

$

In Stock, only 3 left!

0

25

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

26

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$15.99

$

Usually ships in 3-6 days

0

27

Toro 78-8760

Decal
(Superseded to 78-8760-01)

$244.99

$

Usually ships in 3-6 days

0

28

Toro 4564

ROD-LOWER

$35.99

$

Usually ships in 3-6 days

0
