79345 - Toro Blower and Drive Kit for E-Z Vac Twin Bagger for TimeCutter HD (SN: 405700000 - 410099999) Blower and Tube Assembly Parts Diagram

Blower and Drive Kit for E-Z Vac Twin Bagger for TimeCutter HD

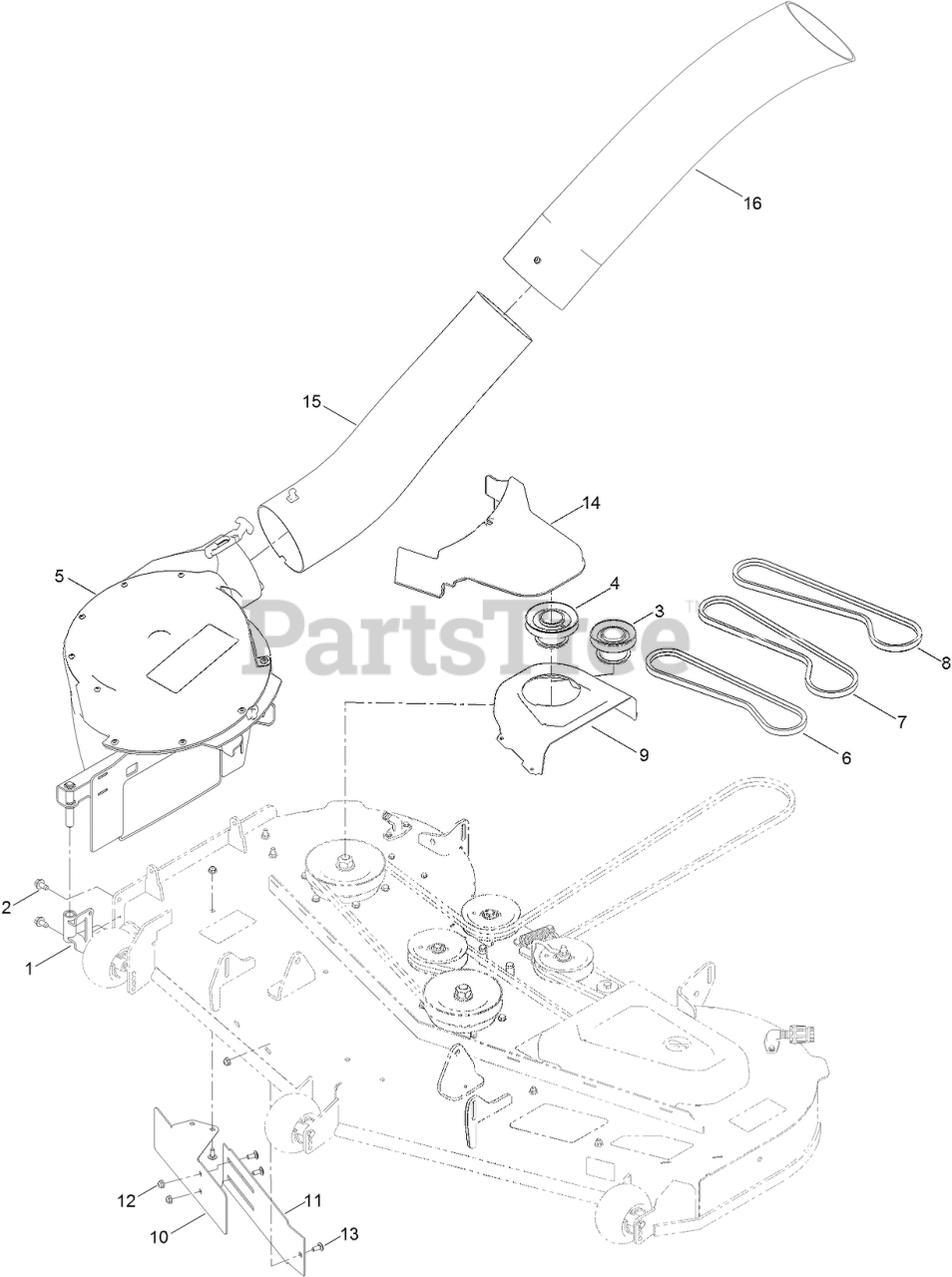

Blower and Tube Assembly Parts Diagram

  • Title

1

Toro 136-4152

PIVOT-BLOWER

$49.99

$

Usually ships in 3-6 days

0

2

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 8

0

3

Toro 125-0085

PULLEY-BAGGER

$155.99

$

Usually ships in 3-6 days

0

4

Toro 125-0086

PULLEY-BAGGER

$155.99

$

Usually ships in 3-6 days

0

5

Toro 140-5032

Blower Housing Assembly

$1454.99

$

Usually ships in 3-6 days

0

6

Toro 127-0074

BELT-V

$44.99

$

Usually ships in 3-6 days

0

7

Toro 127-0075

BELT-V

$45.99

$

In Stock, only 2 left!

0

8

Toro 127-0076

BELT-V

$46.99

$

In Stock, only 1 left!

0

9

Toro 136-4151

COVER-BELT, RH

$19.99

$

Usually ships in 3-6 days

0

10

Toro 133-7022-03

BAFFLE-OUTER

$27.99

$

In Stock, only 1 left!

0

11

Toro 133-7021-03

BAFFLE-INNER

$27.99

$

In Stock, only 1 left!

0

12

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

14

Toro 136-4172

COVER-BAGGER, POWERED

$29.99

$

Usually ships in 3-6 days

0

15

Toro 140-5030

Lower Tube ASM

$171.99

$

Usually ships in 3-6 days

0

16

Toro 140-5029

Upper Tube ASM

$236.99

$

Usually ships in 3-6 days

0
