79328 - Toro Bagger for Titan ZX and MX Series Mower (SN: 313000001 - 313999999) (2013) BAGGER ASSEMBLY Parts Diagram

Bagger for Titan ZX and MX Series Mower

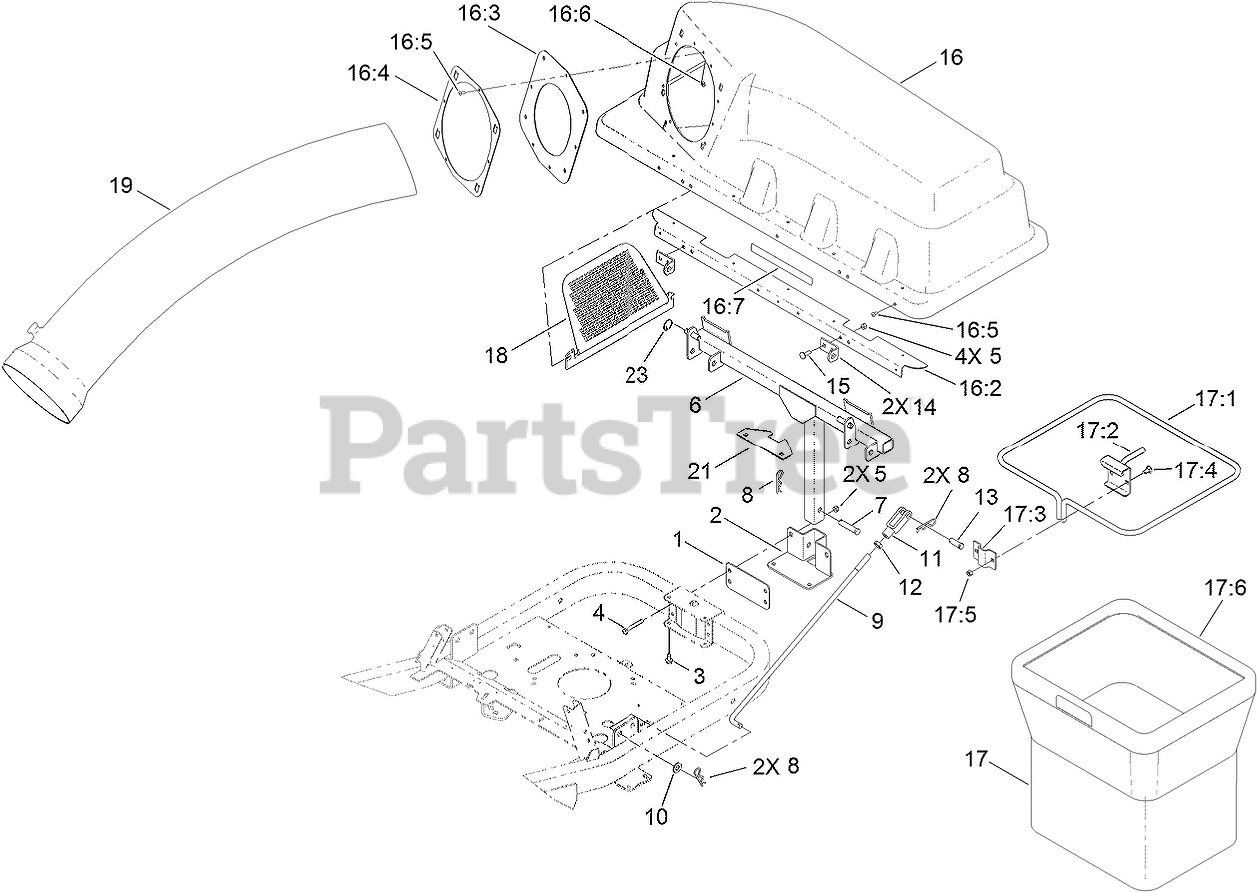

BAGGER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5355-03

PLATE

$21.99

$

Usually ships in 3-6 days

0

2

Toro 120-7120-03

SUPPORT-BAGGER

$88.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 120-7119-03

FRAME-PIVOT

$348.99

$

Usually ships in 3-6 days

0

7

Toro 92-2739

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

8

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

9

Toro 115-2645

ROD-BAGGER

$45.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 100-7338

CLEVIS

$58.99

$

In Stock, only 3 left!

0

12

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

13

Toro 104-3634

PIN-CLEVIS

$19.99

$

In Stock, only 2 left!

0

14

Toro 112-3987

BRACKET-PIVOT, HOPPER

$7.99

$

Usually ships in 3-6 days

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

16

Toro 117-5370

BAGGER TOP ASM

$377.99

$

Usually ships in 3-6 days

0

16:2

Toro 116-1242-03

STIFFENER-BAGGER TOP

$101.99

$

Usually ships in 3-6 days

0

16:3

Toro 112-4001

GASKET

$18.99

$

In Stock, only 1 left!

0

16:4

Toro 112-4000-03

RING-RETAINER

$31.99

$

In Stock, only 1 left!

0

16:5

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

16:6

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

16:7

Toro 109-6809

DECAL-CAUTION, BAGGER

$25.99

$

Usually ships in 3-6 days

0

17

Toro 112-3994

BAG ASM

$175.99

$

In Stock, only 2 left!

0

17:1

Toro 114972-03

FRAME-BAG

$111.99

$

Usually ships in 3-6 days

0

17:2

Toro 112-4012-03

HANGER ASM
(Superseded to 114973-03)

$25.99

$

In Stock, only 2 left!

0

17:3

Toro 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

17:4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17:5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17:6

Toro 110-6674

BAG

$79.99

$

In Stock, only 3 left!

0

18

Toro 112-3993

SCREEN-BAGGER

$29.99

$

In Stock, only 1 left!

0

19

Toro 117-5379

TUBE-BAGGER

$218.99

$

Usually ships in 3-6 days

0

21

Toro 117-5397-03

PLATE-SPACER

$19.99

$

Usually ships in 3-6 days

0

23

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0
