79313 - Toro Foot-Assist Cutting Unit Lift Kit for Mower PEDAL AND FOOTLIFT ASSEMBLY Parts Diagram

Foot-Assist Cutting Unit Lift Kit for Mower

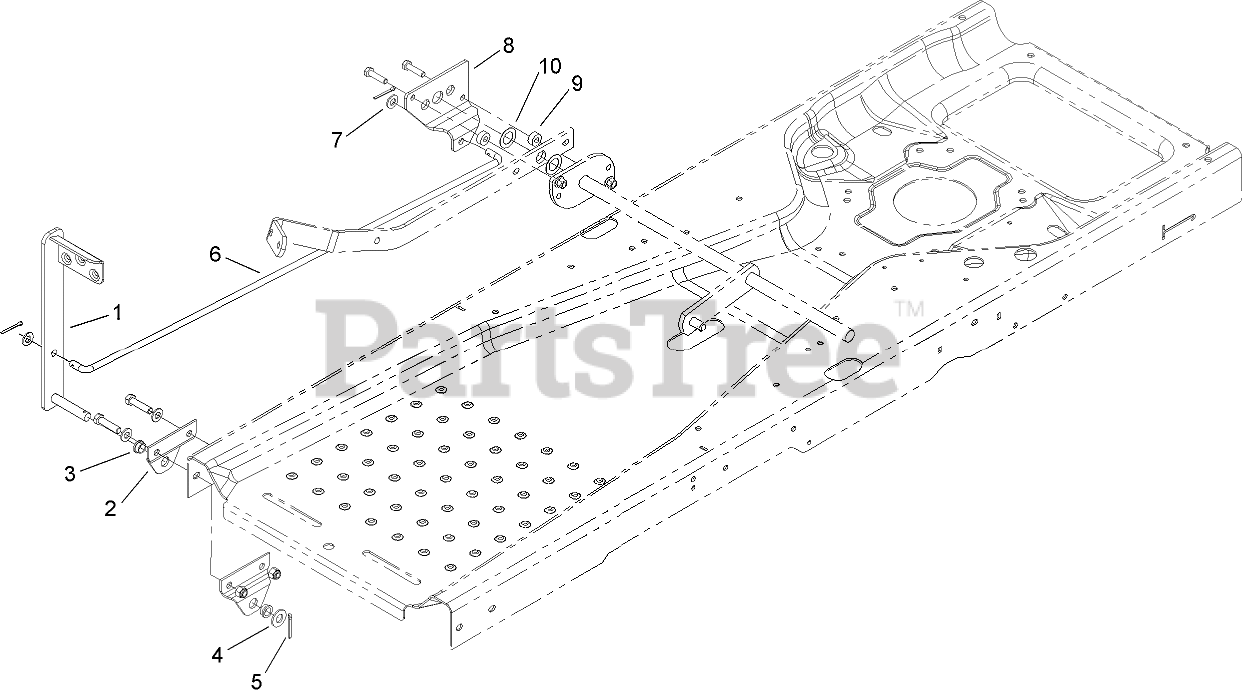

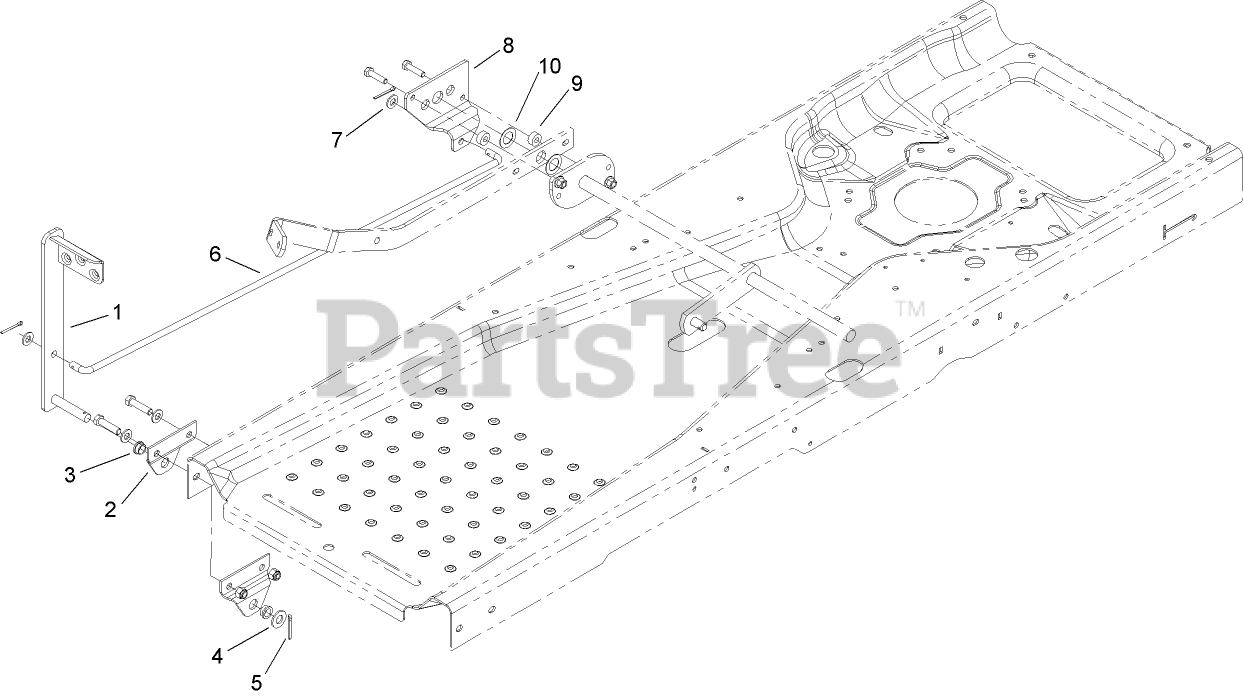

PEDAL AND FOOTLIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 112-4018-03

PEDAL ASM

$

$

Not available

2

Toro 112-3954-03

BRACKET-FOOTLIFT

$

$

Not available

3

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

6

Toro 112-3958

ROD-LIFT

$41.99

$

Usually ships in 3-6 days

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 112-3959

PLATE-FOOTLIFT

$

$

Not available

9

Toro 112-3961

SPACER

$12.99

$

Usually ships in 3-6 days

0

10

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0
