79310 - Toro 48" Vacuum Bagger for 5xi Tractors (SN: 099000001 - 099999999) (1999) DECK COMPONENTS ASSEMBLY Parts Diagram

48" Vacuum Bagger for 5xi Tractors

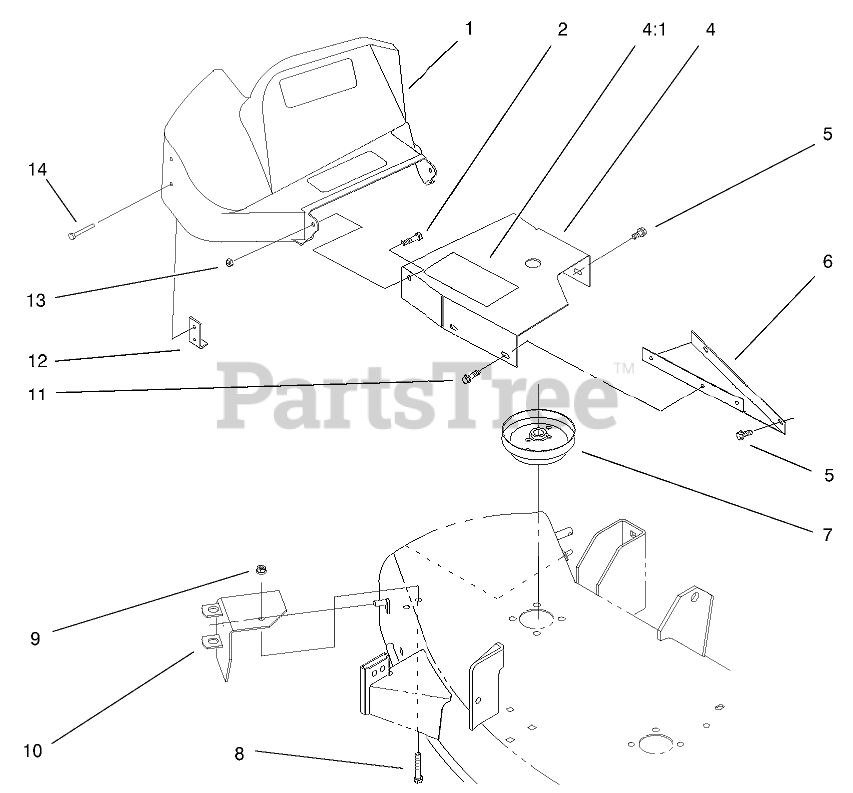

DECK COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9300

Belt Shield ASM (OnlyOn: 79310)

$

$

Not available

1

Toro 98-5000

Belt Shield ASM (OnlyOn: 79448)

$531.99

$

Usually ships in 3-6 days

0

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-5096-03

Shield/Decal ASM(Only On: 79310)
(Superseded to 98-5096)

$

$

Not available

4

Toro 98-5097-03

Shield/Decal ASM(Only On: 79448)

$

$

Currently unavailable

4:1

Toro 92-7108

Decal-Danger (OnlyOn: 79310)

$7.49

$

Usually ships in 3-6 days

0

4:1

Toro 93-7317

Decal-Danger (OnlyOn: 79448)

$

$

Not available

5

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

6

Toro 94-7589

SHIELD - ADAPTER
(Superseded to 94-7589-03)

$

$

Not available

7

Toro 79-7130

PULLEY

$135.99

$

Usually ships in 3-6 days

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 79-7000

PIVOT SUPPORT ASM
(Superseded to 79-7000-03)

$124.99

$

Usually ships in 3-6 days

0

11

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 79-0470

RIVET-POP

$

$

Not available
