79305 - Toro 44" Vacuum Bagger (SN: 099000001 - 099999999) (1999) DRIVE COMPONENTS ASSEMBLY Parts Diagram

44" Vacuum Bagger

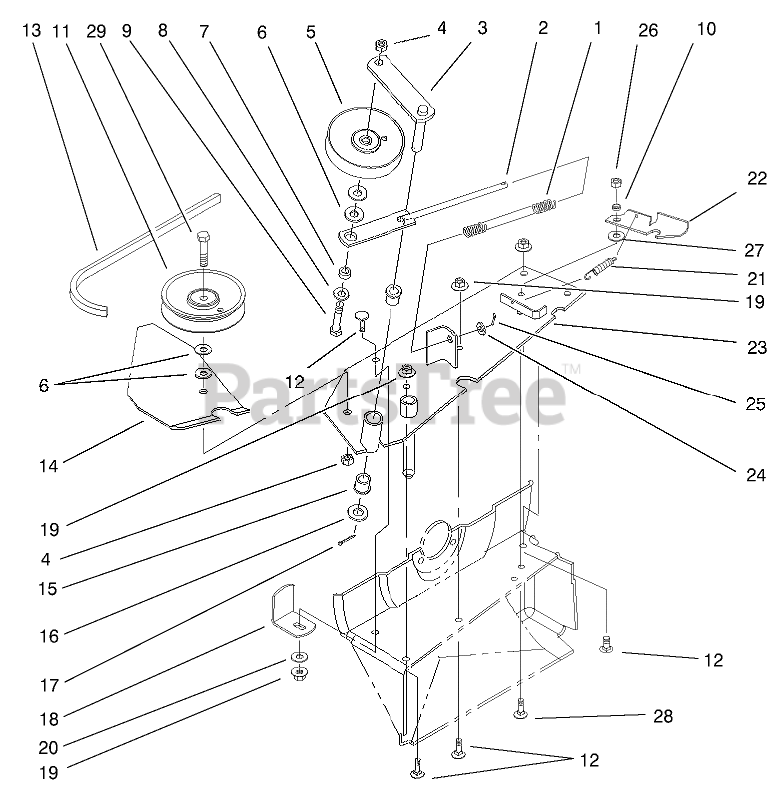

DRIVE COMPONENTS ASSEMBLY Parts Diagram

  • Title
1

Toro 79-7110

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

2

Toro 79-2020

SPRING-ROD

$63.99

$

Usually ships in 3-6 days

0

3

Toro 79-1970

IDLER ARM ASM

$

$

Not available

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

5

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 93-8013

BUSHING

$5.49

$

Usually ships in 3-6 days

0

11

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

12

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

13

Toro 98-5098

V-BELT
(Superseded to 93-8007)

$115.99

$

Usually ships in 3-6 days

0

14

Toro 79-7280-03

SUPPORT-SHIELD, BELT

$

$

Not available

15

Toro 100284

BUSHING

$

$

Not available

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

18

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$20.99

$

Usually ships in 3-6 days

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 79-7390

SPRING-EXTENSION

$23.99

$

Usually ships in 3-6 days

0

22

Toro 93-8012-03

Latch-Blower

$

$

Not available

23

Toro 93-8016-03

Mounting-Blower

$214.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

28

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

29

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
