79305 - Toro 44" Vacuum Bagger (SN: 099000001 - 099999999) (1999) DECK COMPONENTS ASSEMBLY Parts Diagram

44" Vacuum Bagger

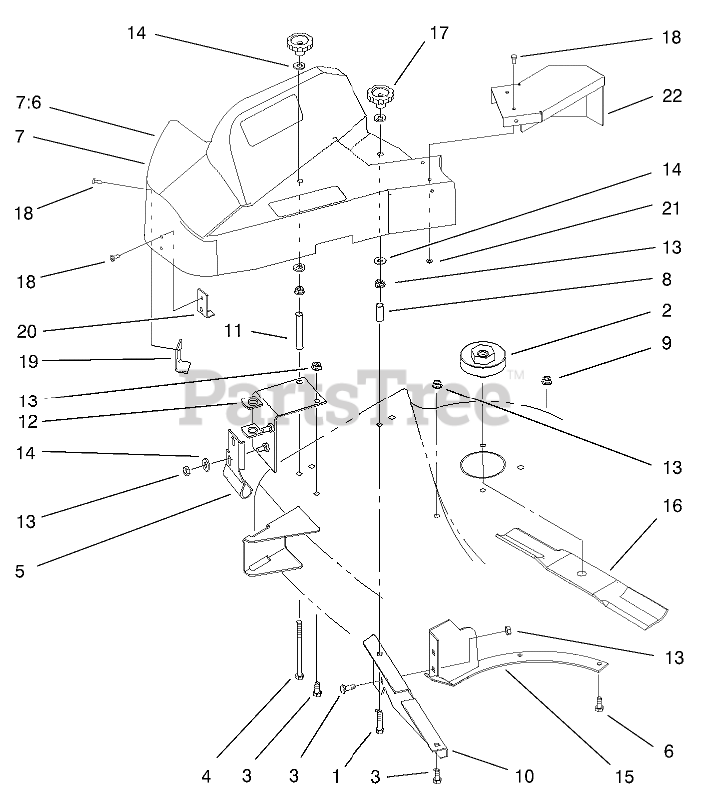

DECK COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

2

Toro 93-8008

PULLEY

$112.99

$

Usually ships in 3-6 days

0

3

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

4

Toro 100-4184

SCREW-CARR

$16.99

$

Usually ships in 3-6 days

0

5

Toro 93-9344-03

Bracket-Pivot

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 94-2317

Shield-Belt

$

$

Currently unavailable

8

Toro 93-8009

TUBE-LATCH

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 100-4188-03

BAFFLE-REAR

$

$

Not available

11

Toro 93-8023

TUBE-SPACER

$

$

Not available

12

Toro 93-8020-03

Pivot-Bracket

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 100-4189-03

RING-BAGGING, RH

$

$

Not available

16

Toro 55-4940

Blade
(Superseded to 55-4940-03)

$38.99

$

In Stock, only 1 left!

0

17

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

18

Toro 79-0470

RIVET-POP

$

$

Not available

19

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

20

Toro 93-8022

BRACKET-SUPPORT, SHIELD

$

$

Not available

21

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

22

Toro 94-2316

Belt Cover ASM

$

$

Currently unavailable
