79301 - Toro 42"/48" Vacuum Bagger for 300 Series Tractors (SN: 312000001 - 312999999) (2012) TOP BAG ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger for 300 Series Tractors

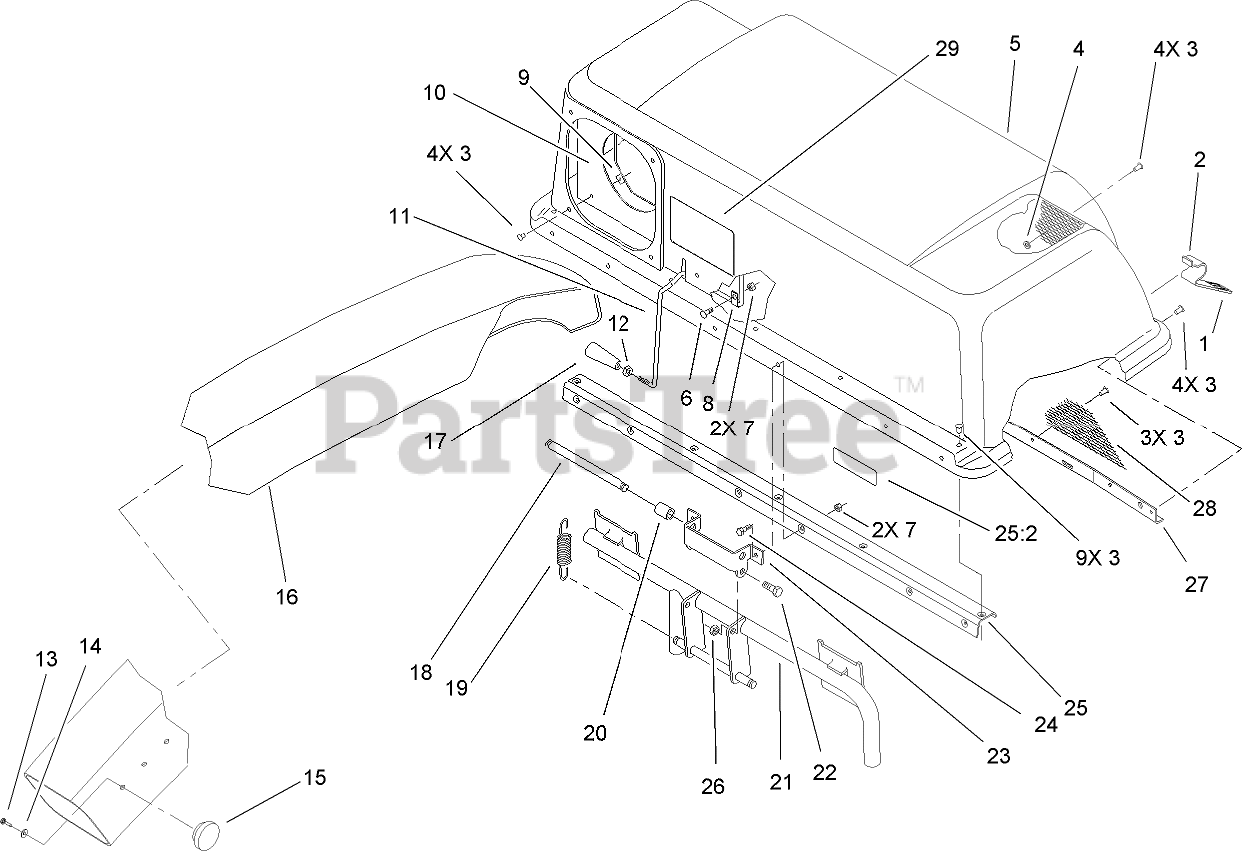

TOP BAG ASSEMBLY Parts Diagram

  • Title
1

$5.49

$

In Stock, Qty 6

0

2

Toro 115481-03

LATCH-BAGGER, TOP

$22.99

$

In Stock, only 4 left!

0

3

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

4

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

5

Toro 92-1734

TOP-BAGGER

$

$

Not available

6

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

9

Toro 114966

CLAMP-SEAL

$71.99

$

Usually ships in 3-6 days

0

10

Toro 117239

SEAL-CHUTE

$84.99

$

Usually ships in 3-6 days

0

11

Toro 114969

FEELER-FILL, BAG

$

$

Not available

12

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

13

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

14

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

15

$8.49

$

Usually ships in 3-6 days

0

16

Toro 79-7240

CHUTE-DISCHARGE

$477.99

$

Usually ships in 3-6 days

0

17

Toro 118320

HANDLE-TAPERED

$

$

Not available

18

Toro 114960

PIN-SPRING

$27.99

$

In Stock, only 1 left!

0

19

Toro 114962

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

20

Toro 9790944

Spacer

$2.99

$

In Stock, only 2 left!

0

21

Toro 114955-03

FRAME ASM

$754.99

$

Usually ships in 3-6 days

0

22

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 114961-03

Hinge-Bag, Top

$17.99

$

Usually ships in 3-6 days

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 88-9570

STIFFENER ASM

$99.99

$

Usually ships in 3-6 days

0

25:2

Toro 93-7320

DECAL-CAUTION

$29.99

$

Usually ships in 3-6 days

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 92-1736-03

SUPPORT-SCREEN

$52.99

$

Usually ships in 3-6 days

0

28

Toro 114967

SCREEN-BAGGER

$38.99

$

In Stock, only 3 left!

0

29

Toro 116347

DECAL

$

$

Not available
